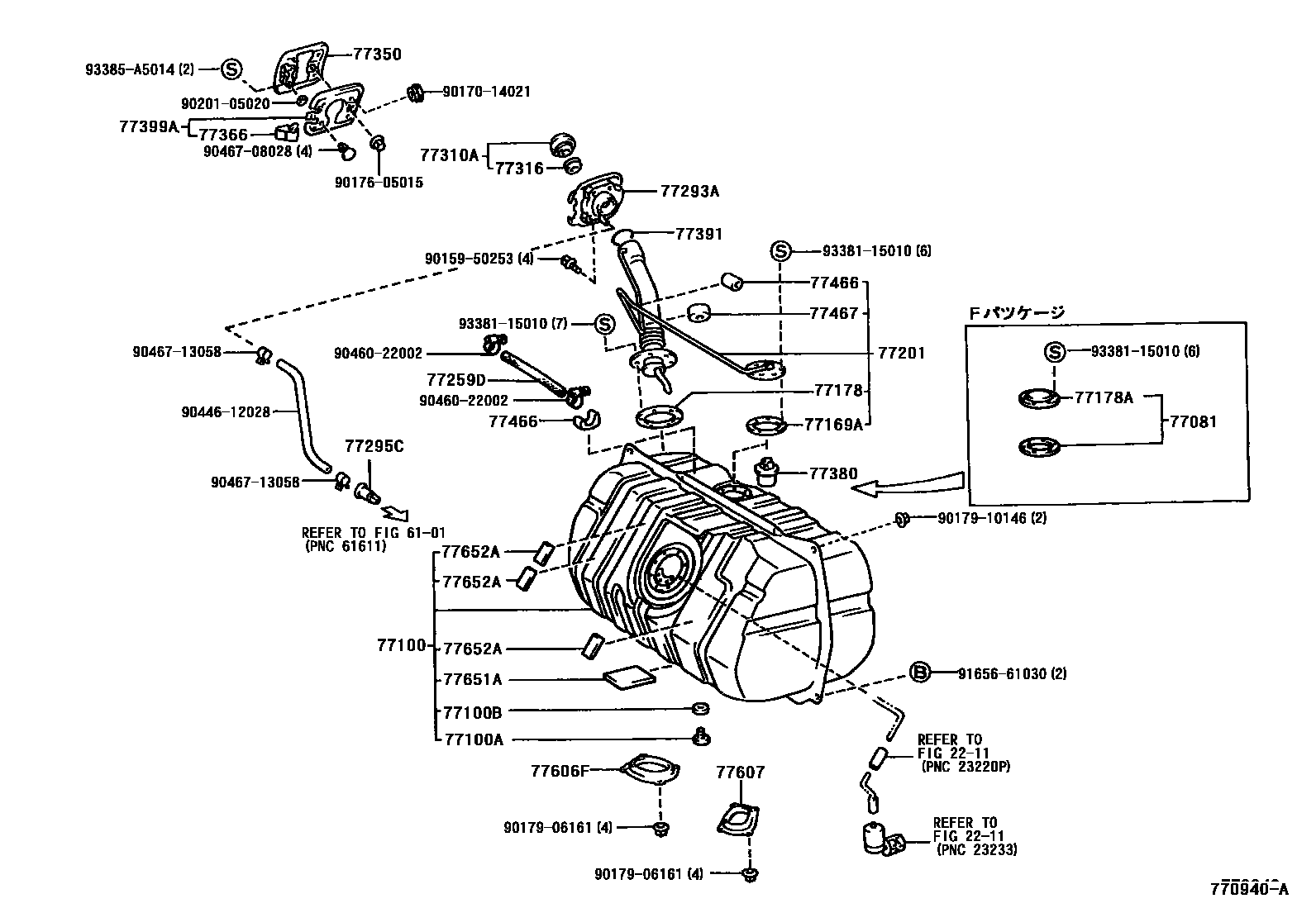

FUEL TANK & TUBE

0001 1 0002 1

2211

6101

77081RETAINER SUB-ASSY, FUEL CUT OFF VALVE

main77081-50010iUCF11198911-199410

77100TANK ASSY, FUEL

main77001-50020iUCF1#198911-199410

main77001-50030iUCF11198911-199307

sub77001-50040

main77001-50040iUCF11199307-199410

77100APLUG(FOR FUEL TANK)

main90105-12018iUCF1#198911-199307

77100BGASKET(FOR FUEL TANK)

main90430-12245iUCF1#198911-199307

77169AGASKET, FUEL SUCTION TUBE SET

main77169-50010iUCF1#198911-199410

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77169-14010iUCF11198911-199208

main77169-14010iUCF1#198911-199410

77178AGASKET, FUEL TANK FILLER PIPE, LOWER

main77178-10010iUCF11198911-199410

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-50020iUCF1#198911-199410

main77201-50030iUCF11198911-199410

77259DHOSE, FUEL, NO.1

main77259-12090iUCF11198911-199410

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-50010iUCF1#198911-199112

sub77293-50011

main77293-50011iUCF1#199112-199410

77295CGROMMET, FUEL TUBE

main77295-50010iUCF1#198911-199410

77310ACAP ASSY, FUEL TANK

main77310-16011iUCF1#198911-199410

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iUCF1#198911-199410

77350LID ASSY, FUEL FILLER OPENING

main77350-50010iUCF1#198911-199410

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-50010iUCF1#198911-199205

sub77366-50011

main77366-50011iUCF1#199205-199410

77380VALVE ASSY, FUEL CUT OFF

main77380-50010iUCF1#198911-199410

main77380-50020iUCF11198911-199410

77391RING, FUEL INLET BOX

main77391-24010iUCF1#199208-199410

77399ACOVER, FUEL FILLER OPENING LID

main77399-50010iUCF1#198911-199205

sub77399-50011

main77399-50011iUCF1#199205-199410

77466PROTECTOR, FUEL TUBE, NO.4

main77466-50010iUCF1#198911-199410

main77466-50030iUCF11198911-199410

77467PROTECTOR, FUEL TUBE, NO.5

main77467-50010iUCF1#198911-199410

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-50010iUCF1#198911-199410

77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH

main77607-50010iUCF1#198911-199410

77651ACUSHION, FUEL TANK, NO.1

main77651-50010iUCF1#198911-199410

77652ACUSHION, FUEL TANK, NO.2

main77652-50010iUCF1#198911-199410

9015950253

main90159-50253

9017014021

main90170-14021

9017605015

main90176-05015

9017906161

main90179-06161

9017910146

main90179-10146

9020105020

main90201-05020

9044612028

main90446-12028

9046022002

main90460-22002

9046708028

main90467-08028

9046713058

main90467-13058

9165661030

main91656-61030

9338115010

main93381-15010

93385A5014

main93385-A5014

39 parts on this diagram · 2 diagrams in section
