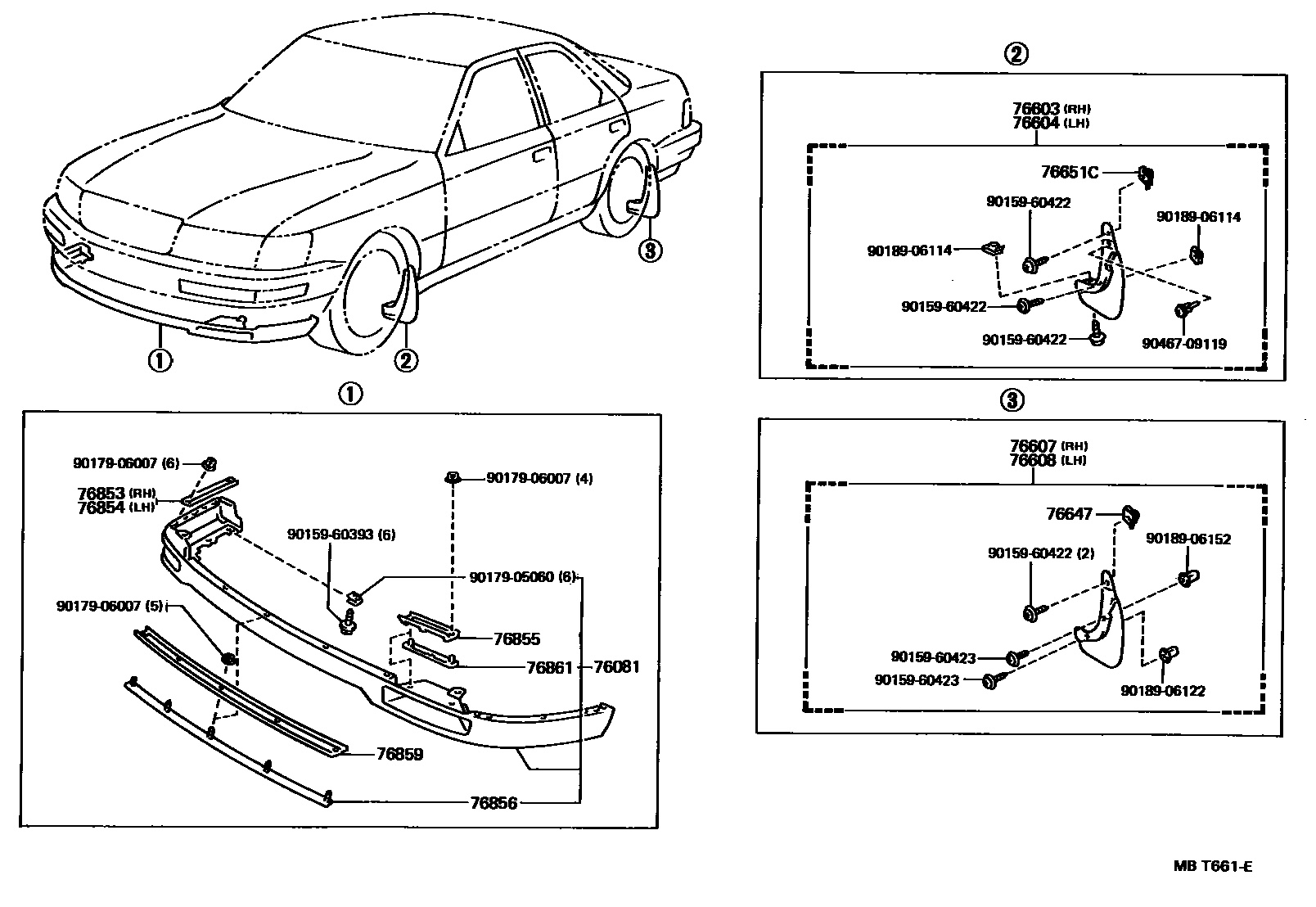

MUDGUARD & SPOILER
76081SPOILER SUB-ASSY, FRONT
SILVER M,051
LIGHT GRAY,176
MEDIUM GRAY,180 ,202 ,6K4
CAMEL BEIGE,4K9
DARK STEEL BLUE M,8J5
TAUPE M,923
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76647RETAINER, QUARTER PANEL REAR MUDGUARD
76651CRETAINER, FRONT MUDGUARD
76853RETAINER, FRONT SPOILER, UPPER RH
76854RETAINER, FRONT SPOILER, UPPER LH
76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER
76856RETAINER, FRONT SPOILER, LOWER NO.2 CENTER
76859RETAINER, FRONT SPOILER, UPPER NO.3
76861RETAINER, FRONT SPOILER, LOWER NO.1
9015960393
main90159-60393
9015960422
main90159-60422
9015960423
main90159-60423
9017905060
main90179-05060
9017906007
main90179-06007
9018906114
main90189-06114
9018906122
main90189-06122
9018906152
main90189-06152
9046709119
main90467-09119
22 parts on this diagram · 4 diagrams in section
