INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

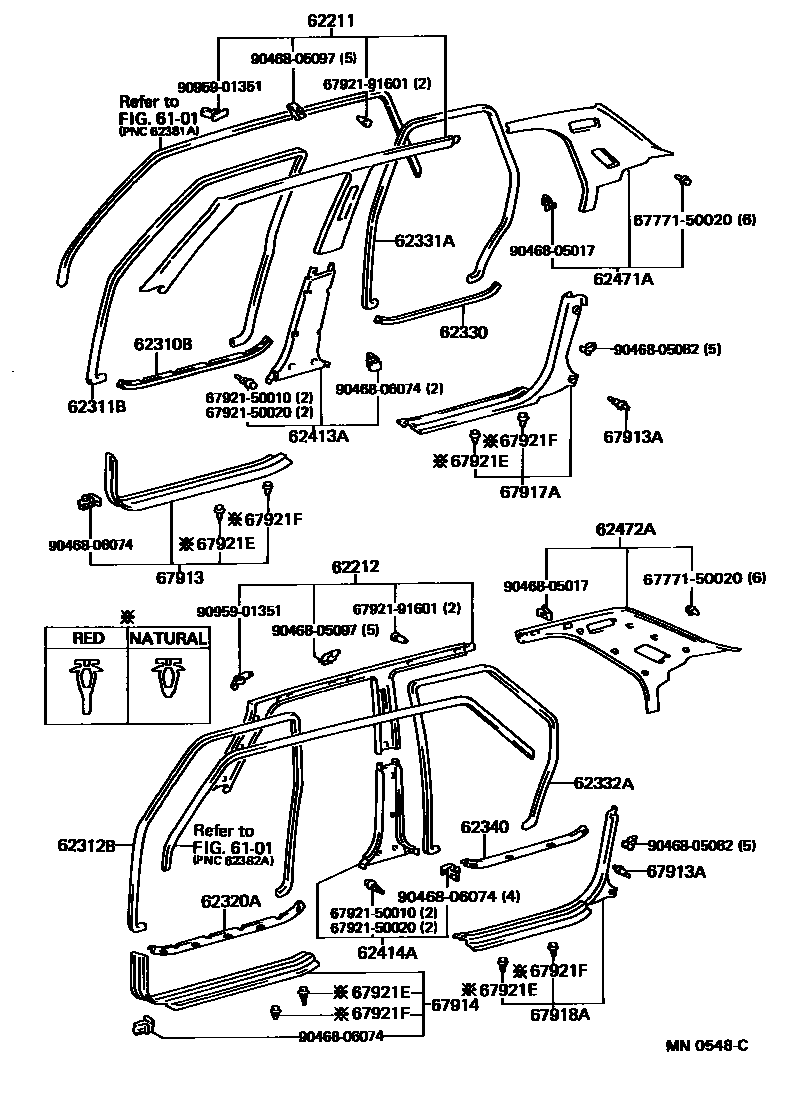

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
62211GARNISH, FRONT PILLAR, RH
main62210-50020-03i198911-199208
SHADOW GRAY,TRIM1#
main62210-50020-04i198911-199208
DARK BLUE,TRIM8#
main62210-50020-05i198911-199208
GREIGE,TRIM0#
main62210-50020-06i198911-199208
DARK ROSE,TRIM4#
main62210-50020-E0i199208-199410
OAK,TRIM0#
main62210-50020-K0i199208-199410
TAUPE,TRIM9#
main62210-50020-P0i199208-199410
SHADOW GRAY,TRIM1#
main62210-50020-W3i199208-199410
DK. BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62220-50020-03i198911-199208
SHADOW GRAY,TRIM1#
main62220-50020-04i198911-199208
DARK BLUE,TRIM8#
main62220-50020-05i198911-199208
GREIGE,TRIM0#
main62220-50020-06i198911-199208
DARK ROSE,TRIM4#
main62220-50020-E0i199208-199410
OAK,TRIM0#
main62220-50020-K0i199208-199410
TAUPE,TRIM9#
main62220-50020-P0i199208-199410
SHADOW GRAY,TRIM1#
main62220-50020-W3i199208-199410
DK. BLUE,TRIM8#
62310BWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
main62310-50010i198911-199410
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main62311-50010-04i198911-199208
DARK BLUE,TRIM8#
main62311-50010-05i198911-199208
GREIGE,TRIM0#
main62311-50010-06i198911-199208
DARK ROSE,TRIM4#
main62311-50010-B0i199208-199410
SHADOW GRAY,TRIM1#
main62311-50010-E0i199208-199410
OAK,TRIM0#
main62311-50010-J0i199208-199410
DK. BLUE,TRIM8#
main62311-50010-K0i199208-199410
TAUPE,TRIM9#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main62312-50010-04i198911-199208
DARK BLUE,TRIM8#
main62312-50010-05i198911-199208
GREIGE,TRIM0#
main62312-50010-06i198911-199208
DARK ROSE,TRIM4#
main62312-50010-B0i199208-199410
SHADOW GRAY,TRIM1#
main62312-50010-E0i199208-199410
OAK,TRIM0#
main62312-50010-J0i199208-199410
DK. BLUE,TRIM8#
main62312-50010-K0i199208-199410
TAUPE,TRIM9#
62320AWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
main62320-50010i198911-199410
62330WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, RH
main62330-50010i198911-199410
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main62331-50010-04i198911-199208
DARK BLUE,TRIM8#
main62331-50010-05i198911-199208
GREIGE,TRIM0#
main62331-50010-06i198911-199208
DARK ROSE,TRIM4#
main62331-50010-B0i199208-199410
SHADOW GRAY,TRIM1#
main62331-50010-E0i199208-199410
OAK,TRIM0#
main62331-50010-J0i199208-199410
DK. BLUE,TRIM8#
main62331-50010-K0i199208-199410
TAUPE,TRIM9#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main62332-50010-04i198911-199208
DARK BLUE,TRIM8#
main62332-50010-05i198911-199208
GREIGE,TRIM0#
main62332-50010-06i198911-199208
DARK ROSE,TRIM4#
main62332-50010-B0i199208-199410
SHADOW GRAY,TRIM1#
main62332-50010-E0i199208-199410
OAK,TRIM0#
main62332-50010-J0i199208-199410
DK. BLUE,TRIM8#
main62332-50010-K0i199208-199410
TAUPE,TRIM9#
62340WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, LH
main62340-50010i198911-199410
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-50010-03i198911-199205
SHADOW GRAY,TRIM1#
main62413-50010-04i198911-199205
DARK BLUE,TRIM8#
main62413-50010-05i198911-199205
GREIGE,TRIM0#
main62413-50010-06i198911-199205
DARK ROSE,TRIM4#
main62413-50030-B0i199205-199410
SHADOW GRAY,TRIM1#
main62413-50030-E0i199208-199410
OAK,TRIM0#
main62413-50030-E1i199205-199208
GREIGE,TRIM0#
main62413-50030-E2i199205-199208
DARK ROSE,TRIM4#
main62413-50030-J0i199205-199410
DARK BLUE,TRIM8#
main62413-50030-K0i199208-199410
TAUPE,TRIM9#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-50010-03i198911-199205
SHADOW GRAY,TRIM1#
main62414-50010-04i198911-199205
DARK BLUE,TRIM8#
main62414-50010-05i198911-199205
GREIGE,TRIM0#
main62414-50010-06i198911-199205
DARK ROSE,TRIM4#
main62414-50030-B0i199205-199410
SHADOW GRAY,TRIM1#
main62414-50030-E0i199208-199410
OAK,TRIM0#
main62414-50030-E1i199205-199208
GREIGE,TRIM0#
main62414-50030-E2i199205-199208
DARK ROSE,TRIM4#
main62414-50030-J0i199205-199410
DARK BLUE,TRIM8#
main62414-50030-K0i199208-199410
TAUPE,TRIM9#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-50010-03i198911-199105
SHADOW GRAY,TRIM1#
main62470-50010-04i198911-199105
DARK BLUE,TRIM8#
main62470-50010-05i198911-199105
GREIGE,TRIM0#
main62470-50010-06i198911-199105
DARK ROSE,TRIM4#
main62470-50011-E0i199208-199410
OAK,TRIM0#
main62470-50011-E2i199105-199208
GREIGE,TRIM0#
main62470-50011-E4i199105-199208
DARK ROSE,TRIM4#
main62470-50011-K0i199208-199410
TAUPE,TRIM9#
main62470-50011-P0i199105-199410
SHADOW GRAY,TRIM1#
main62470-50011-W3i199105-199410
DARK BLUE,TRIM8#
main62470-50020-03i198911-199105
main62470-50020-04i198911-199105
main62470-50020-05i198911-199105
main62470-50020-06i198911-199105
main62470-50021-E0i199208-199410
main62470-50021-E2i199105-199208
main62470-50021-E4i199105-199208
main62470-50021-K0i199208-199410
main62470-50021-P0i199105-199410
main62470-50021-W3i199105-199410
62472AGARNISH, ROOF SIDE, INNER LH
main62480-50010-03i198911-199105
SHADOW GRAY,TRIM1#
main62480-50010-04i198911-199105
DARK BLUE,TRIM8#
main62480-50010-05i198911-199105
GREIGE,TRIM0#
main62480-50010-06i198911-199105
DARK ROSE,TRIM4#
main62480-50011-E0i199208-199410
OAK,TRIM0#
main62480-50011-E2i199105-199208
GREIGE,TRIM0#
main62480-50011-E4i199105-199208
DARK ROSE,TRIM4#
main62480-50011-K0i199208-199410
TAUPE,TRIM9#
main62480-50011-P0i199105-199410
SHADOW GRAY,TRIM1#
main62480-50011-W3i199105-199410
DARK BLUE,TRIM8#
main62480-50020-03i198911-199105
main62480-50020-04i198911-199105
main62480-50020-05i198911-199105
main62480-50020-06i198911-199105
main62480-50021-E0i199208-199410
main62480-50021-E2i199105-199208
main62480-50021-E4i199105-199208
main62480-50021-K0i199208-199410
main62480-50021-P0i199105-199410
main62480-50021-W3i199105-199410
67913PLATE, FRONT DOOR SCUFF, RH
main67913-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main67913-50010-04i198911-199208
DARK BLUE,TRIM8#
main67913-50010-05i198911-199208
GREIGE,TRIM0#
main67913-50010-06i198911-199208
DARK ROSE,TRIM4#
main67913-50010-E0i199208-199410
OAK,TRIM0#
main67913-50010-K0i199208-199410
TAUPE,TRIM9#
main67913-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main67913-50010-W3i199208-199410
DK. BLUE,TRIM8#
67913ACLIP(FOR SCUFF PLATE)
main90467-07041-11×4i198911-199208
BLACK,TRIM0#,1#,4#,8#; BLACK,TRIM1#,8#
main90467-07041-C0×4i199208-199410
BLACK,TRIM0#,1#,8#,9#; BLACK,TRIM1#,8#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main67914-50010-04i198911-199208
DARK BLUE,TRIM8#
main67914-50010-05i198911-199208
GREIGE,TRIM0#
main67914-50010-06i198911-199208
DARK ROSE,TRIM4#
main67914-50010-E0i199208-199410
OAK,TRIM0#
main67914-50010-K0i199208-199410
TAUPE,TRIM9#
main67914-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main67914-50010-W3i199208-199410
DK. BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main67917-50010-04i198911-199208
DARK BLUE,TRIM8#
main67917-50010-05i198911-199208
GREIGE,TRIM0#
main67917-50010-06i198911-199208
DARK ROSE,TRIM4#
main67917-50010-E0i199208-199410
OAK,TRIM0#
main67917-50010-K0i199208-199410
TAUPE,TRIM9#
main67917-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main67917-50010-W3i199208-199410
DK. BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
main67918-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main67918-50010-04i198911-199208
DARK BLUE,TRIM8#
main67918-50010-05i198911-199208
GREIGE,TRIM0#
main67918-50010-06i198911-199208
DARK ROSE,TRIM4#
main67918-50010-E0i199208-199410
OAK,TRIM0#
main67918-50010-K0i199208-199410
TAUPE,TRIM9#
main67918-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main67918-50010-W3i199208-199410
DK. BLUE,TRIM8#
67921ERETAINER, REAR DOOR SCUFF PLATE
main67921-50040×10i198911-199410
main67921-50050×2i198911-199410
NATURAL
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-50040×14i198911-199410
main67921-50050×2i198911-199410
NATURAL
6777150020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-50020
6792150010RETAINER, FRONT DOOR SCUFF PLATE
main67921-50010
6792150020RETAINER, FRONT DOOR SCUFF PLATE
main67921-50020
6792191601RETAINER, FRONT DOOR SCUFF PLATE
main67921-91601
9046805017
main90468-05017
9046805082
main90468-05082
9046805097
main90468-05097
9046806074
main90468-06074
9095901351
main90959-01351

31 parts on this diagram · 1 diagram in section
