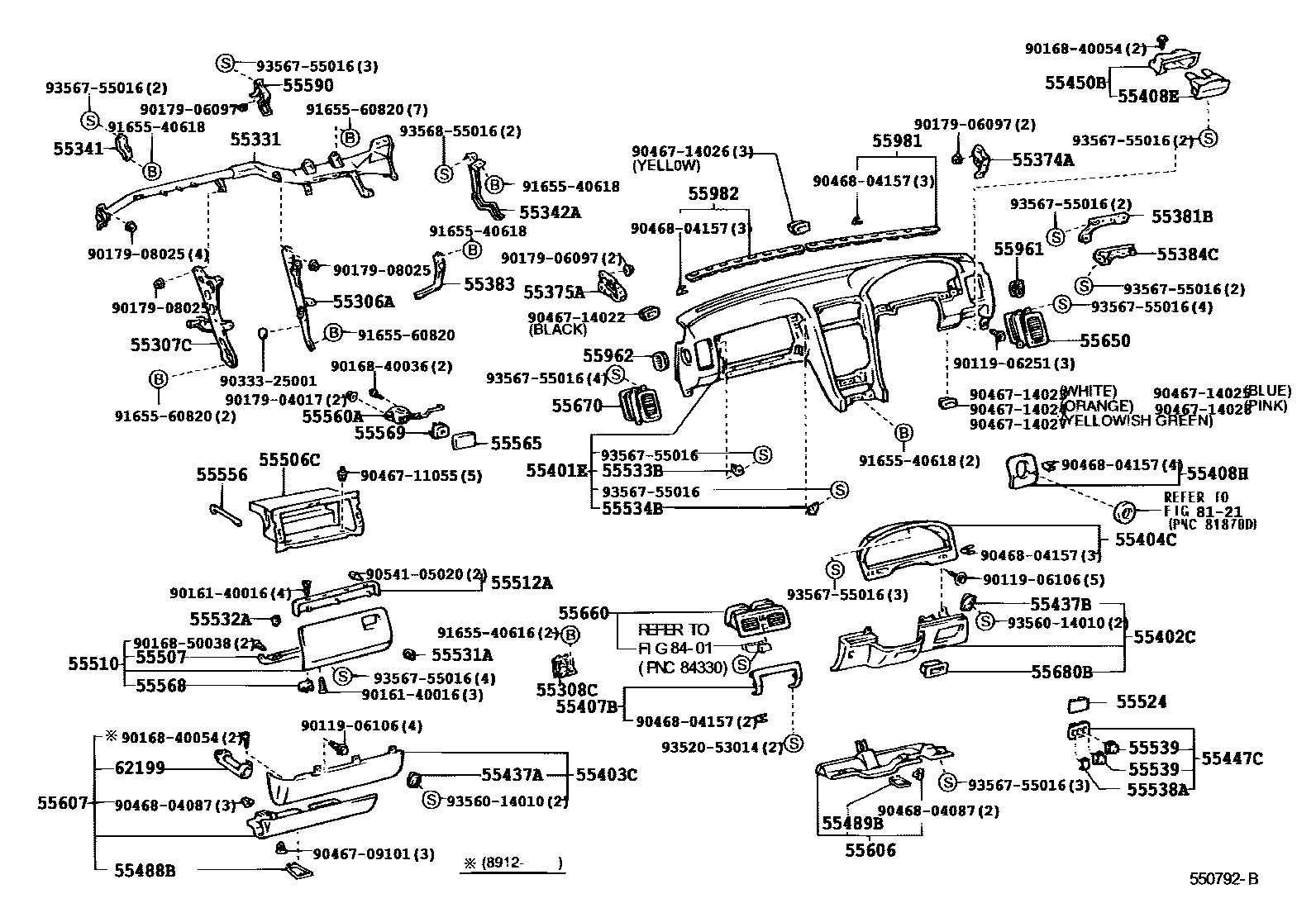

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55383BRACKET, FINISH PANEL MOUNTING, NO.3
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
SLATE GRAY,TRIM1#
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
ME. TAUPE,TRIM9#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55407BBASE SUB-ASSY, SWITCH HOLE
55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN
SHADOW GRAY,TRIM1#
DARK BLUE,DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55408HPAD SUB-ASSY, INSTRUMENT PANEL CYLINDER
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55437BRETAINER, INSTR PANEL FINISH PANEL, NO.2
55447CBASE, SWITCH HOLE, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55450BBOX ASSY, COIN
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55488BLENS, FRONT FOOT LAMP, NO.1
55489BLENS, FRONT FOOT LAMP, NO.2
55506CCOMPARTMENT SUB-ASSY, GLOVE
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55512APLATE, GLOVE COMPARTMENT
55524COVER, SWITCH BACE HOLE
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55531APANEL, GLOVE COMPARTMENT, NO.1
55532APANEL, GLOVE COMPARTMENT, NO.2
55533BPANEL, GLOVE COMPARTMENT SIDE, RH
55534BPANEL, GLOVE COMPARTMENT SIDE, LH
55538ACOVER, COOLER SWITCH HOLE
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55539COVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TUAPE,TRIM9#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
55568PLATE, GLOVE COMPARTMENT DOOR PAD
55569COVER, GLOVE COMPARTMENT DOOR LOCK
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TUAPE,TRIM9#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55680BREGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
ME. TAUPE,TRIM9#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
55961NOZZLE, SIDE DEFROSTER, NO.1
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55962NOZZLE, SIDE DEFROSTER, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55982GARNISH, DEFROSTER NOZZLE, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
62199HOLDER, FUSEE
8121INTERIOR LAMP
8401SWITCH & RELAY & COMPUTER
9011906106
main90119-06106
9011906251
main90119-06251
9016140016
main90161-40016
9016840036
main90168-40036
9016840054
main90168-40054
9016850038
main90168-50038
9017904017
main90179-04017
9017906097
main90179-06097
9017908025
main90179-08025
9033325001
main90333-25001
9046709101
main90467-09101
9046711055
main90467-11055
9046714022
main90467-14022
9046714023
main90467-14023
9046714024
main90467-14024
9046714025
main90467-14025
9046714026
main90467-14026
9046714027
main90467-14027
9046714028
main90467-14028
9046804087
main90468-04087
9046804157
main90468-04157
9054105020
main90541-05020
9165540616
main91655-40616
9165540618
main91655-40618
9165560820
main91655-60820
9352053014
main93520-53014
9356014010
main93560-14010
9356755016
main93567-55016
9356855016
main93568-55016
83 parts on this diagram · 2 diagrams in section
