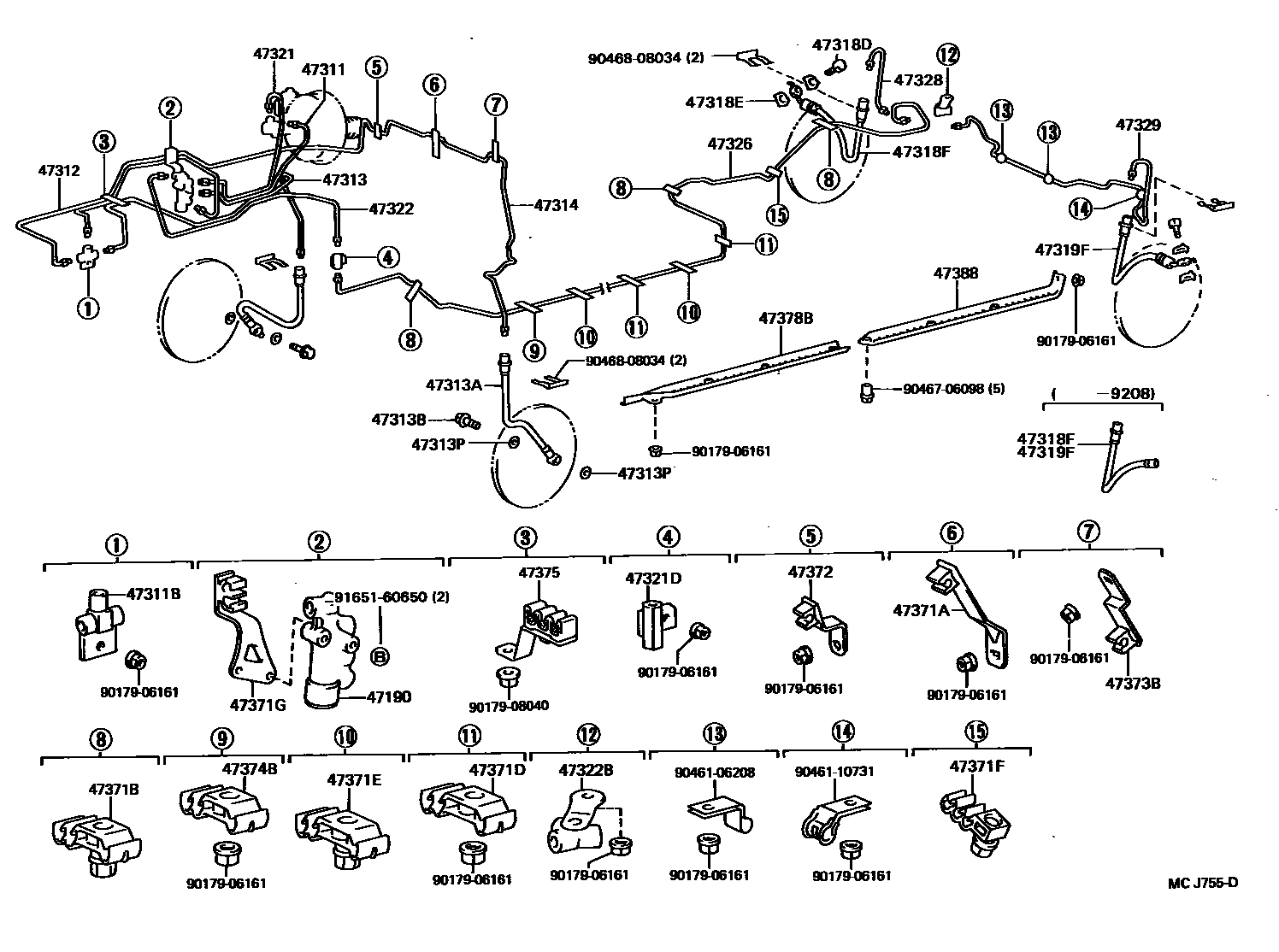

BRAKE TUBE & CLAMP
47190VALVE ASSY, PROPORTIONING & BY-PASS
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47322BWAY, NO.2(FOR REAR BRAKE TUBE)
47326TUBE, REAR BRAKE, NO.6
47328TUBE, REAR BRAKE, NO.8
47329TUBE, REAR BRAKE, NO.9
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47371GCLAMP, BRAKE TUBE, NO.11
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47378BPROTECTOR, TUBE, UPPER
47388PROTECTOR, BRAKE TUBE, LOWER
9017906161
main90179-06161
9017908040
main90179-08040
9046106208
main90461-06208
9046110731
main90461-10731
9046706098
main90467-06098
9046808034
main90468-08034
9165160650
main91651-60650
39 parts on this diagram · 8 diagrams in section
