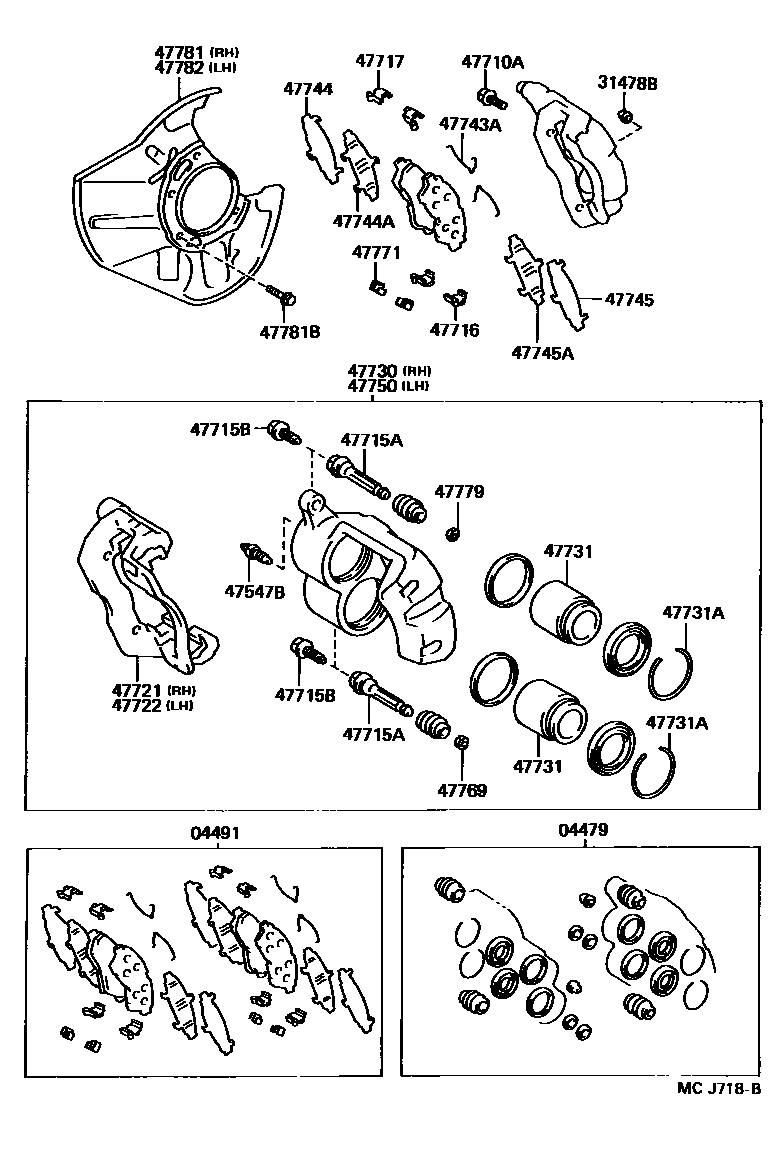

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1��(������ ���-���� ����) 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50030iUCF1#198911-199208

main04479-50050iUCF1#199208-199410

sub04479-50051

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iUCF1#199103-199208

sub04491-24060

main04491-50030iUCF1#198911-199003

sub04491-50031

main04491-50031iUCF1#199003-199103

sub04465-50130

main04491-50070iUCF1#..B,C199208-199303

sub04491-50071

main04491-50071iUCF10..A199303-199304

sub04465-50030

main04491-50090iUCF10..A199208-199303

sub04491-50091

main04491-50091iUCF10..A199303-199304

sub04465-50040

main04491-50110iUCF1#..B,C199304-199410

sub04491-50111

main04491-50120iUCF10..A199304-199410

sub04491-50121

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iUCF1#198911-199208

main31478-50020iUCF1#199208-199410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iUCF1#198911-199410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iUCF1#198911-199410

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50020iUCF1#198911-199410

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iUCF1#198911-199410

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30080iUCF1#199208-199303

sub47716-24010

sub47716-50050

main47716-50010iUCF1#198911-199208

main47716-50030iUCF1#198911-199208

main47716-50050iUCF1#199303-199410

sub47716-50051

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30090iUCF1#199208-199303

sub47716-24020

sub47716-50060

main47716-50060iUCF1#199303-199410

sub47716-50061

main47717-50010iUCF1#198911-199003

sub47717-50011

main47717-50011iUCF1#199003-199208

main47717-50030iUCF1#198911-199003

sub47717-50031

main47717-50031iUCF1#199003-199208

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-50030iUCF1#198911-199208

main47721-50040iUCF10..A199208-199402

sub47721-50042

main47721-50042iUCF10..A199402-199410

main47721-50050iUCF10..A199208-199402

sub47721-50052

main47721-50052iUCF10..A199402-199410

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-50030iUCF1#198911-199208

main47722-50040iUCF10..A199208-199402

sub47722-50042

main47722-50042iUCF10..A199402-199410

main47722-50050iUCF10..A199208-199402

sub47722-50052

main47722-50052iUCF1#..B,C199402-199410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50030iUCF1#198911-199208

sub47730-50031

main47730-50050iUCF10..A199208-199303

sub47730-50052

main47730-50052iUCF10..A199303-199402

sub47730-50053

main47730-50053iUCF10..A199402-199410

main47730-50060iUCF10..A199208-199303

sub47730-50061

main47730-50061iUCF1#..B,C199303-199304

sub47730-50062

main47730-50062iUCF10..A199304-199402

sub47730-50063

main47730-50063iUCF1#..B,C199402-199410

47731PISTON, FRONT DISC BRAKE

main47731-50030iUCF1#198911-199410

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002iUCF1#198911-199410

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iUCF1#199208-199410

main47743-50030iUCF1#198911-199208

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-50010iUCF1#198911-199208

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-50010iUCF1#198911-199208

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-50010iUCF1#198911-199208

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-50010iUCF1#198911-199208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50030iUCF1#198911-199208

sub47750-50031

main47750-50050iUCF10..A199208-199303

sub47750-50052

main47750-50052iUCF10..A199303-199402

sub47750-50053

main47750-50053iUCF10..A199402-199410

main47750-50060iUCF1#..B,C199208-199303

sub47750-50061

main47750-50061iUCF1#..B,C199303-199304

sub47750-50062

main47750-50062iUCF10..A199304-199402

sub47750-50063

main47750-50063iUCF1#..B,C199402-199410

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iUCF1#198911-199410

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010iUCF1#198911-199208

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-50020iUCF1#198911-199410

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50010iUCF1#198911-199208

sub47781-50011

main47781-50020iUCF1#199208-199410

sub47781-50021

sub90148-60028

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iUCF1#198911-199410

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50010iUCF1#198911-199208

sub47782-50011

main47782-50020iUCF1#199208-199410

sub47782-50021

sub90148-60028

26 parts on this diagram · 4 diagrams in section
