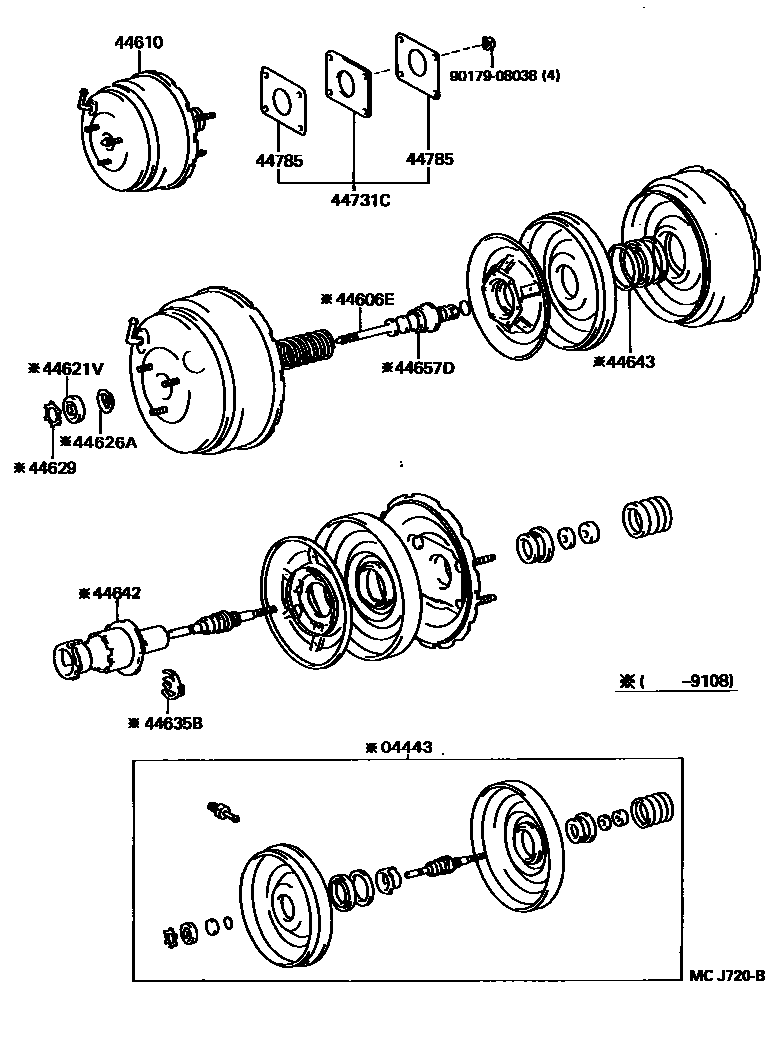

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-50010iUCF1#198911-199103

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iUCF1#198911-199108

44610BOOSTER ASSY, BRAKE

main44610-50030iUCF10..A198911-199103

main44610-50040iUCF1#..B,C198911-199103

main44610-50080iUCF10..A199103-199208

main44610-50090iUCF1#..B,C; UCF10..A199103-199208

main44610-50150iUCF10..A199208-199308

main44610-50151iUCF10..A199308-199410

main44610-50160iUCF1#..B,C; UCF10..A199208-199308

main44610-50161iUCF1#..B,C; UCF10..A199308-199410

44621VSEAL, BOOSTER BODY

main44621-14030iUCF1#198911-199108

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iUCF1#198911-199108

44629RING, CIRCULAR INTERNAL

main44628-60010iUCF1#198911-199108

44635BKEY, VALVE STOPPER

main44635-20800iUCF1#198911-199108

44642PISTON, BRAKE BOOSTER

main44642-20800iUCF1#198911-199108

44643RETAINER, DIAPHRAGM

main44643-20800iUCF1#198911-199108

44657DCASE, REACTION DISC

main44657-50010iUCF1#198911-199108

44731CBRACKET, BRAKE BOOSTER

main44731-50010iUCF1#198911-199205

main44731-50011iUCF1#199205-199410

44785GASKET, BRAKE BOOSTER

main44785-50010×2iUCF1#198911-199410

9017908038

main90179-08038

13 parts on this diagram · 2 diagrams in section
