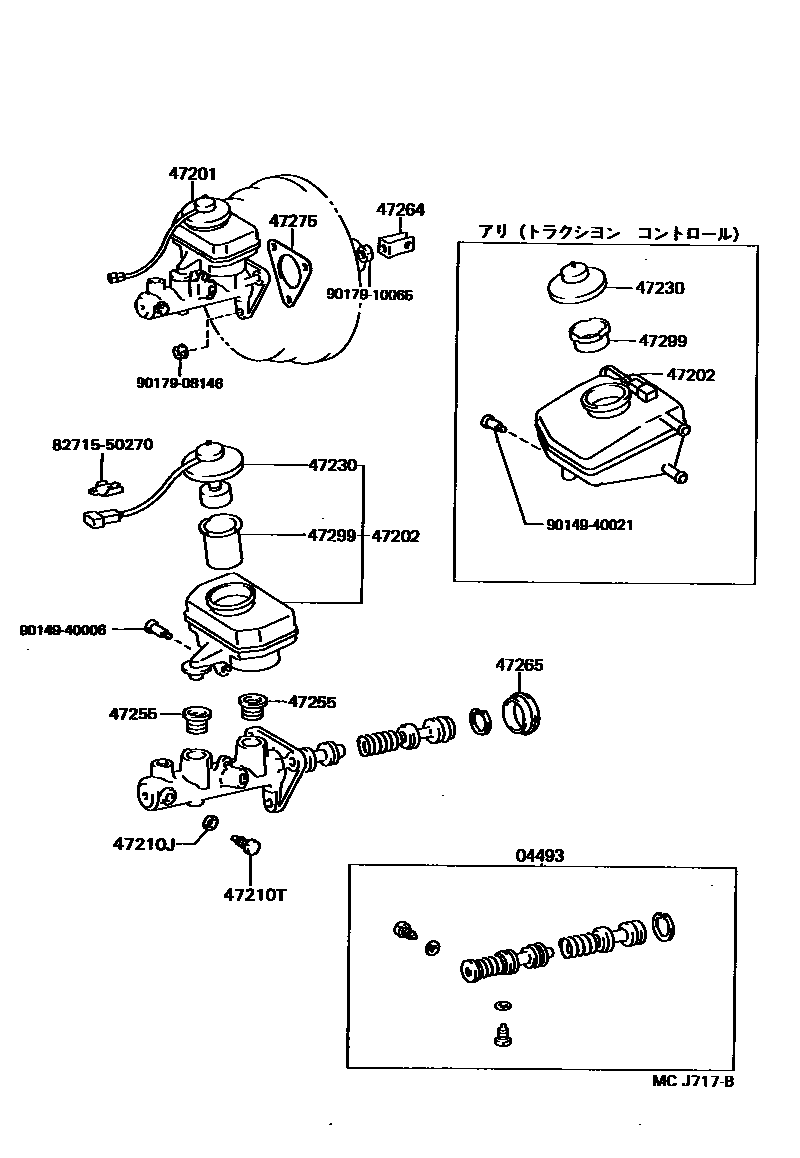

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-22220iUCF1#199208-199410

main04493-50010iUCF1#198911-199208

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50030iUCF10..A198911-199208

main47201-50040iUCF1#..B,C198911-199208

main47201-50040iUCF10..A199101-199208

main47201-50110iUCF10..A199208-199410

main47201-50120iUCF10..A199208-199410

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-50010iUCF10..A198911-199208

main47202-50020iUCF10..A199208-199410

sub47220-50070

main47203-50020iUCF1#..B,C198911-199208

main47203-50020iUCF10..A199101-199208

main47203-50040iUCF10..A199208-199410

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iUCF10..A199101-199410

main90430-06104iUCF10..A198911-199410

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iUCF10..A198911-199410

main90109-06077iUCF10..A199101-199410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iUCF1#..B,C198911-199208

main47230-12040iUCF10..A199101-199208

main47230-20100iUCF1#199208-199410

sub47230-47090

main84460-50010iUCF10..A198911-199208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUCF1#198911-199410

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iUCF1#198911-199410

47265BOOT, MASTER CYLINDER

main47265-20050iUCF1#198911-199208

main47265-22030iUCF1#199208-199410

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iUCF1#198911-199410

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-17010iUCF1#..B,C199208-199410

sub47299-20060

main47299-24010iUCF10..A199208-199410

main47299-25010iUCF10..A199101-199208

main47299-25010iUCF1#..B,C198911-199208

main47299-32010iUCF10..A198911-199208

8271550270BRACKET,WIRING HARNESS CLAMP

main82715-50270

9014940006

main90149-40006

9014940021

main90149-40021

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
