STEERING WHEEL

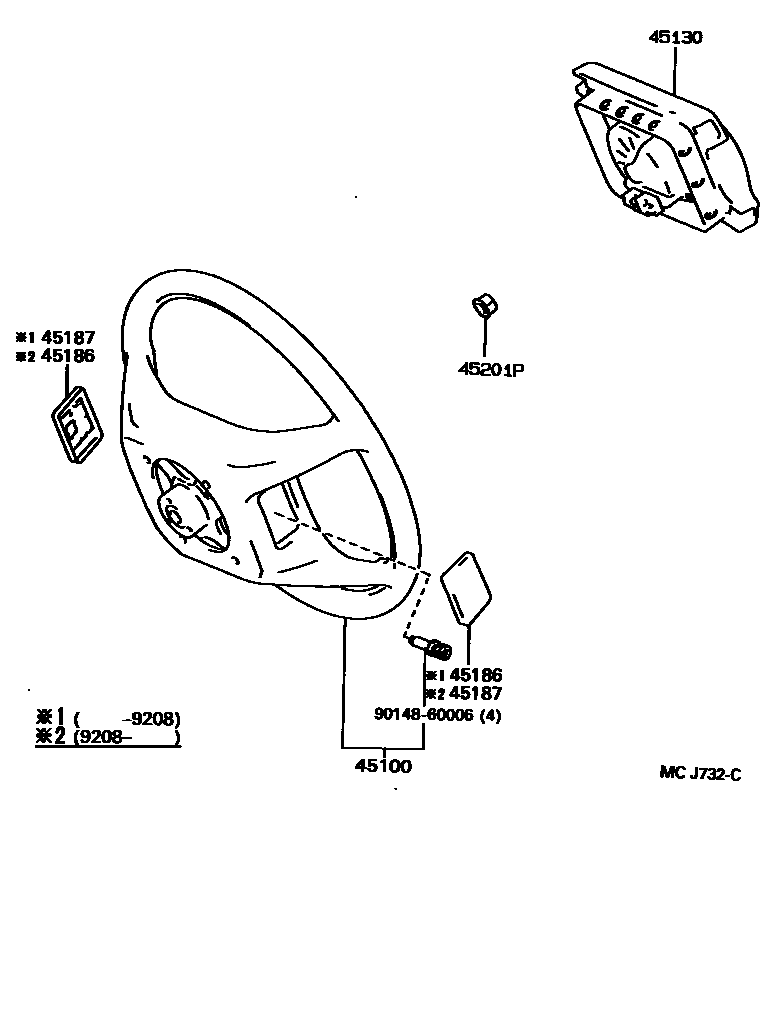

Parts diagram

45100WHEEL ASSY, STEERING

main45100-50010-03i198911-199208

main45100-50010-04i198911-199208

main45100-50020-03i198911-199208

main45100-50020-04i198911-199208

main45100-50020-05i198911-199208

main45100-50020-06i198911-199208

main45100-50050-B0i199208-199308

main45100-50050-E0i199208-199308

main45100-50050-J0i199208-199308

main45100-50050-K0i199208-199308

main45100-50070-B0i199308-199410

main45100-50070-E0i199308-199410

main45100-50070-J0i199308-199410

main45100-50070-K0i199308-199410

45130BUTTON ASSY, HORN

main45130-50031-03i198911-199208

main45130-50031-04i198911-199208

main45130-50031-05i198911-199208

main45130-50031-06i198911-199208

main45130-50090-B0i199208-199410

main45130-50090-E0i199208-199410

main45130-50090-J0i199208-199410

main45130-50090-K0i199208-199410

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-50010-03i198911-199208

main45186-50010-04i198911-199208

main45186-50010-05i198911-199208

main45186-50010-06i198911-199208

main45186-50020-B0i199208-199410

main45186-50020-E0i199208-199410

main45186-50020-J0i199208-199410

main45186-50020-K0i199208-199410

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-50010-03i198911-199208

main45187-50010-04i198911-199208

main45187-50010-05i198911-199208

main45187-50010-06i198911-199208

main45187-50020-B0i199208-199410

main45187-50020-E0i199208-199410

main45187-50020-J0i199208-199410

main45187-50020-K0i199208-199410

45201PNUT, STEERING WHEEL SET

main90179-12071i199305-199410

main90179-12086i198911-199305

9014860006

main90148-60006

6 parts on this diagram · 1 diagram in section
