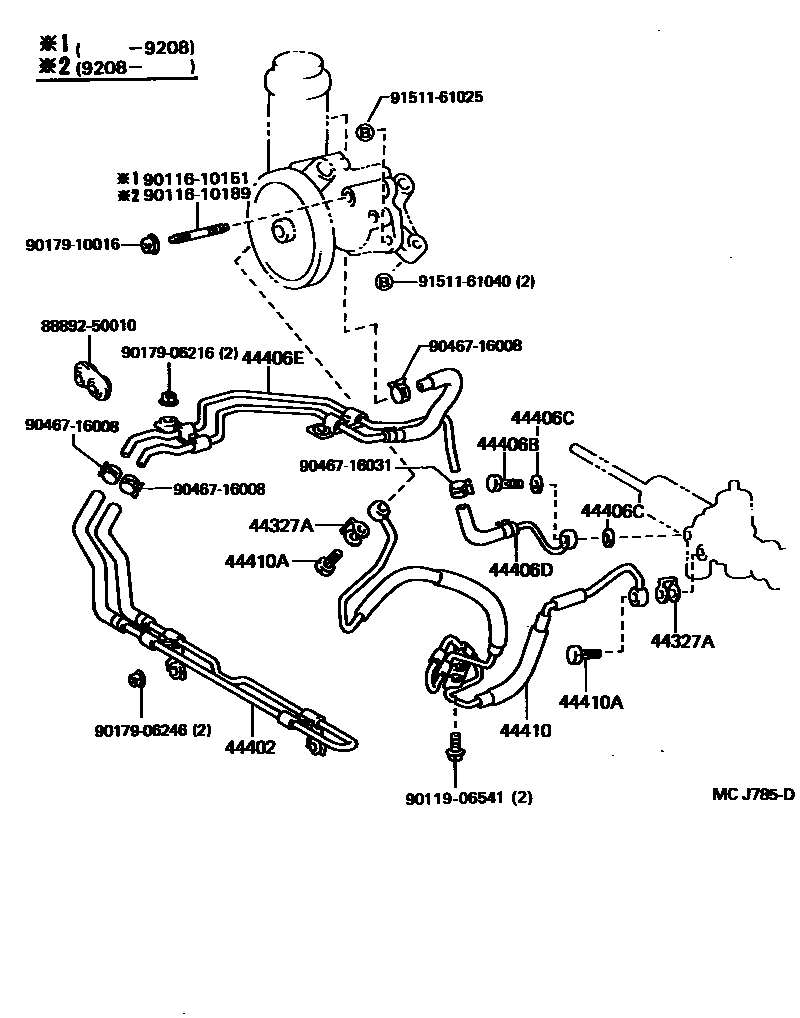

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010×2iUCF1#198911-199308

main44327-30030×2iUCF1#199308-199410

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-50030iUCF1#198911-199410

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17002iUCF1#198911-199308

main96341-11703iUCF1#199308-199410

44406CGASKET(FOR RETURN TUBE)

main90430-17005×2iUCF1#198911-199208

main90430-17006×2iUCF1#199208-199410

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-50040iUCF1#198911-199006

main44406-50041iUCF1#199006-199010

main44406-50042iUCF1#199010-199208

main44406-50080iUCF1#199208-199410

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-50050iUCF1#198911-199010

main44406-50051iUCF1#199010-199208

main44406-50090iUCF1#199208-199410

44410TUBE ASSY, PRESSURE FEED

main44410-50020iUCF1#198911-199102

main44410-50021iUCF1#199102-199410

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16013×2iUCF1#198911-199308

main96341-41603×2iUCF1#199308-199410

8889250010BRACKET, COOLER EVAPORATOR MOUNTING

main88892-50010

9011610151

main90116-10151

9011610189

main90116-10189

9011906541

main90119-06541

9017906216

main90179-06216

9017906246

main90179-06246

9017910016

main90179-10016

9046716008

main90467-16008

9046716031

main90467-16031

9151161025

main91511-61025

9151161040

main91511-61040

19 parts on this diagram · 1 diagram in section
