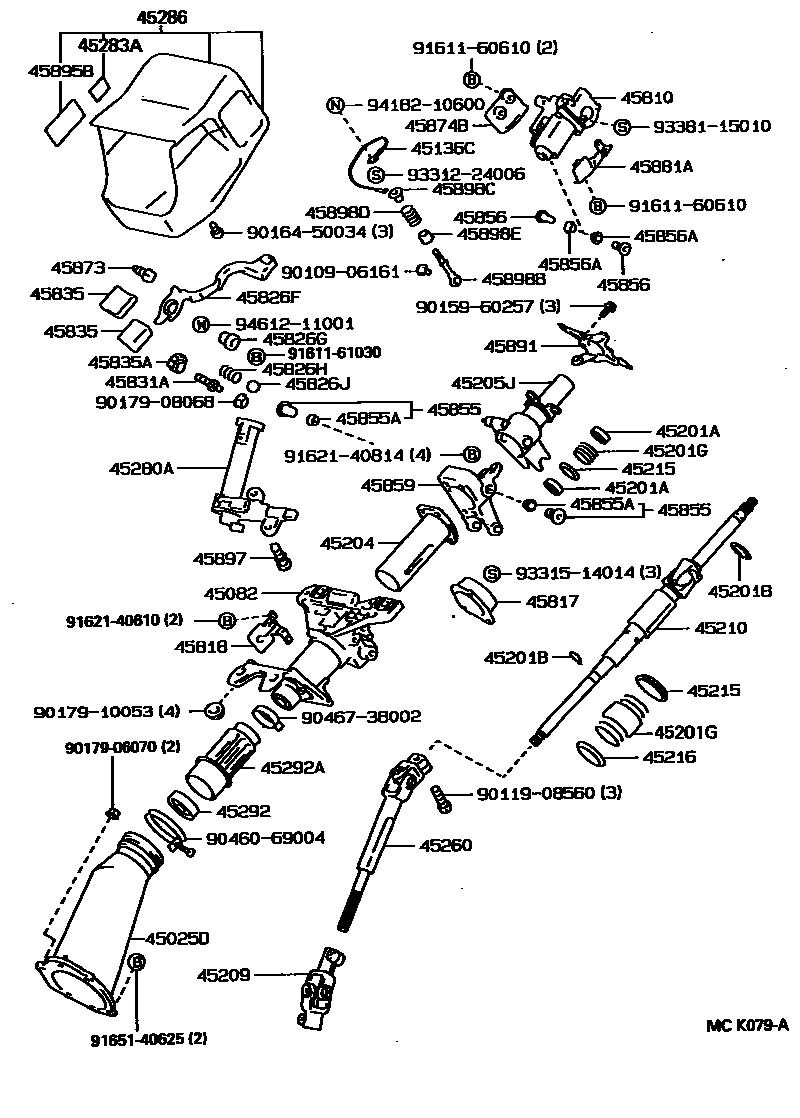

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45136CCABLE, BOND(FOR HORN EARTH)
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45216SHAFT, STEERING SLIDING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#,8#
OAK,TRIM0#
DK.BLUE,TRIM8#
TAUPE,TRIM9#
45286COVER, STEERING COLUMN
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
45292SEAL, MAIN SHAFT LOWER DUST
45292ACOVER, MAIN SHAFT LOWER DUST
45810GEAR ASSY, TILT STEERING, W/MOTOR
45817STOPPER, STEERING SHAFT THRUST
45818BRACKET, CONNECTOR
45826FLEVER, STEERING TELESCOPIC
45826GCOLLAR(FOR STEERING TELESCOPIC LEVER)
45826HSPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER)
45826JBALL(FOR STEERING TELESCOPIC LEVER)
45831ABOLT, TELESCOPE LEVER LOCK
45835WEDGE, LOCK
TUBE SIDE
BOLT SIDE
45835AATTACHMENT, TILT LEVER SERRATION
45855BOLT, TILT STEERING, NO.1
45855ABUSH(FOR TILT STEERING BOLT NO.1)
45856BOLT, TILT STEERING, NO.2
45856ABUSH(FOR TILT STEERING BOLT NO.2)
45859SUPPORT, TILT STEERING HOUSING
45873STOPPER, STEERING COLUMN TUBE
45874BPROTECTOR, STEERING COLUMN, NO.1
45881APROTECTOR, STEERING COLUMN, NO.2
45891BRACKET, TURN SIGNAL
45895BPLATE, TILT LEVER INSTRUCTION
GRAY,TRIM1#
BLUE,TRIM8#
GREIGE,TRIM0#
ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#,8#
45897BOLT, STEERING LOCK SET
45898BBOLT, TILT STEERING SUPPORT STOPPER
45898CSPACER(FOR TILT STEERING SUPPORT STOPPER BOLT)
45898DSPRING(FOR TILT STEERING SUPPORT STOPPER BOLT)
45898EBUSH(FOR TILT STEERING SUPPORT BOLT)
9010906161
main90109-06161
9011908560
main90119-08560
9015960257
main90159-60257
9016450034
main90164-50034
9017906070
main90179-06070
9017908068
main90179-08068
9017910053
main90179-10053
9046069004
main90460-69004
9046738002
main90467-38002
9161160610
main91611-60610
9161161030
main91611-61030
9162140610
main91621-40610
9162140814
main91621-40814
9165140625
main91651-40625
9331224006
main93312-24006
9331514014
main93315-14014
9338115010
main93381-15010
9418210600
main94182-10600
9461211001
main94612-11001
62 parts on this diagram · 2 diagrams in section
