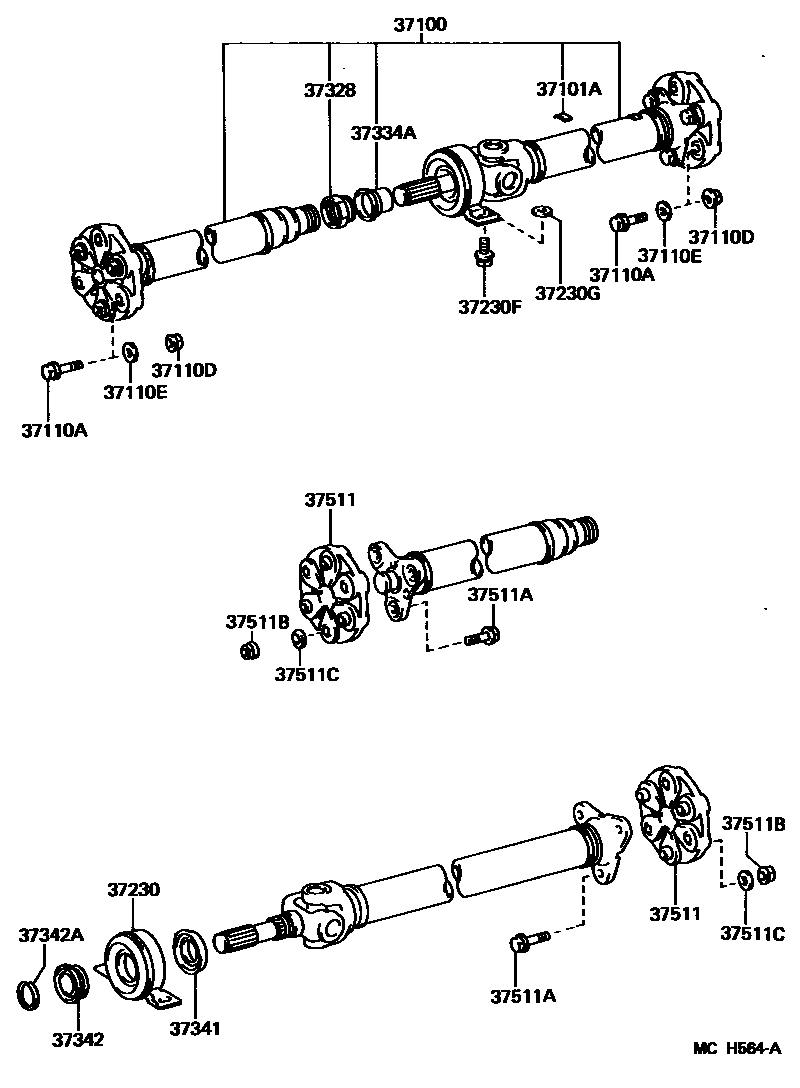

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37328NUT, PROPELLER SHAFT ADJUSTING
37334ABOOT, SLIDING SHAFT
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
37511COUPLING, FLEXIBLE
37511ABOLT (FOR FLEXIBLE COUPLING)
37511BNUT (FOR FLEXIBLE COUPLING)
37511CWASHER, PLATE (FOR FLEXIBLE COUPLING)
17 parts on this diagram · 1 diagram in section
