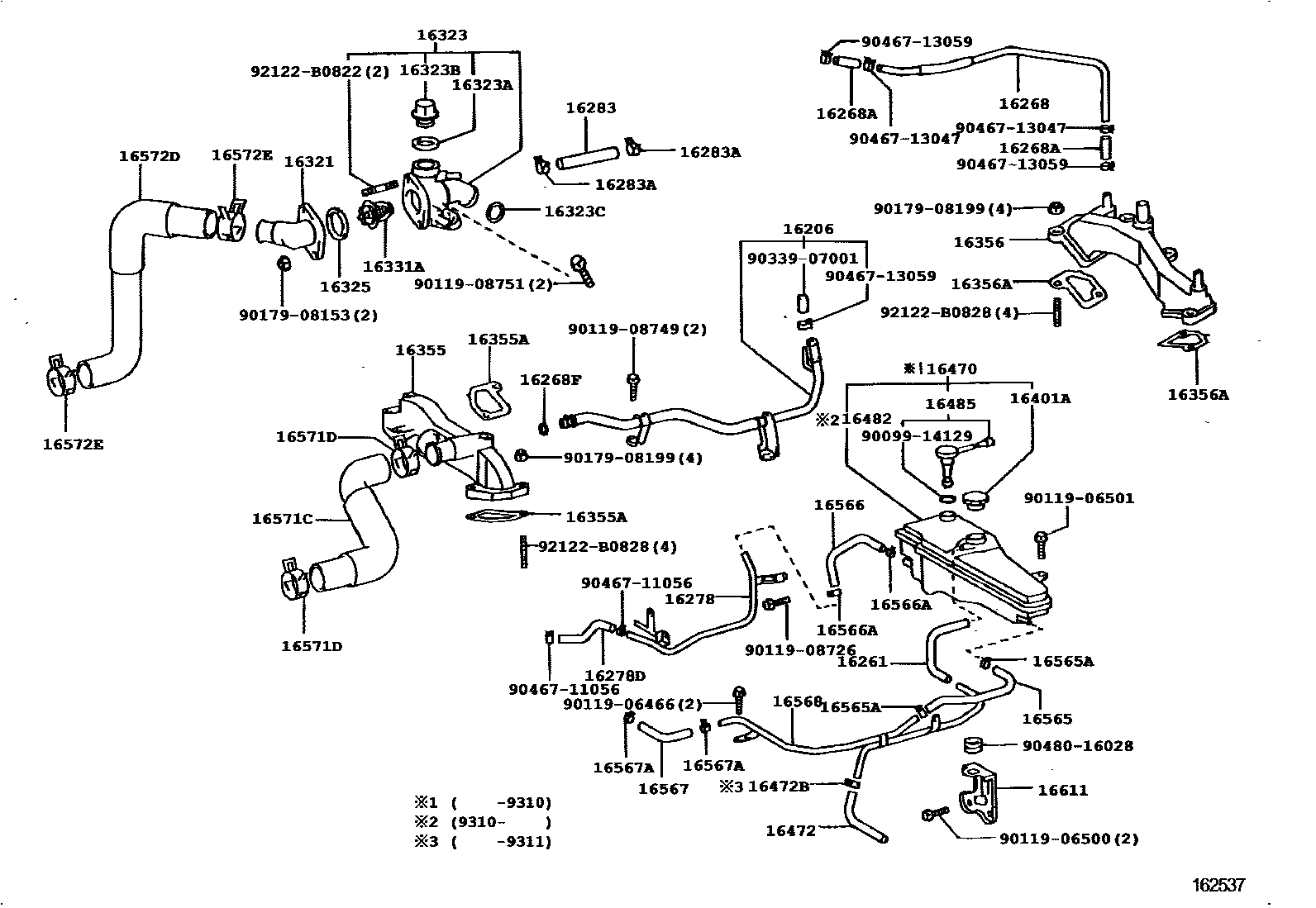

RADIATOR & WATER OUTLET
16206PIPE SUB-ASSY, WATER BY-PASS
16261HOSE, WATER BY-PASS
16268PIPE, WATER BY-PASS, NO.1
16268AHOSE(FOR WATER BY-PASS PIPE)
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16278DHOSE, WATER BY-PASS
16283HOSE, WATER BY-PASS, NO.6
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16321INLET, WATER
16323HOUSING, WATER INLET
16323AGASKET(FOR WATER INLET HOUSING)
16323BPLUG(FOR WATER INLET HOUSING)
16323CRING, O(FOR WATER INLET HOUSING)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
16355JOINT, WATER BY-PASS, FRONT
16355AGASKET(FOR WATER BY-PASS JOINT FRONT)
16356JOINT, WATER BY-PASS, REAR
16356AGASKET(WATER BY-PASS JOINT, REAR)
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470TANK ASSY, RADIATOR RESERVE
16472HOSE, BREATHER
16472BCLIP(FOR BREATHER HOSE)
16482TANK SUB-ASSY, RADIATOR RESERVE
16485SWITCH ASSY, LEVEL WARNING
16565HOSE, RESERVE TANK INLET
16565ACLIP
PIPE SIDE
TANK SIDE
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
PIPE SIDE
RESERVE TANK SIDE
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16568PIPE, RADIATOR TO RESERVE TANK
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16611BRACKET, RADIATOR RESERVE TANK
9009914129
main90099-14129
9011906466
main90119-06466
9011906500
main90119-06500
9011906501
main90119-06501
9011908726
main90119-08726
9011908749
main90119-08749
9011908751
main90119-08751
9017908153
main90179-08153
9017908199
main90179-08199
9033907001
main90339-07001
9046711056
main90467-11056
9046713047
main90467-13047
9046713059
main90467-13059
9048016028
main90480-16028
92122B0822
main92122-B0822
92122B0828
main92122-B0828
54 parts on this diagram · 3 diagrams in section
