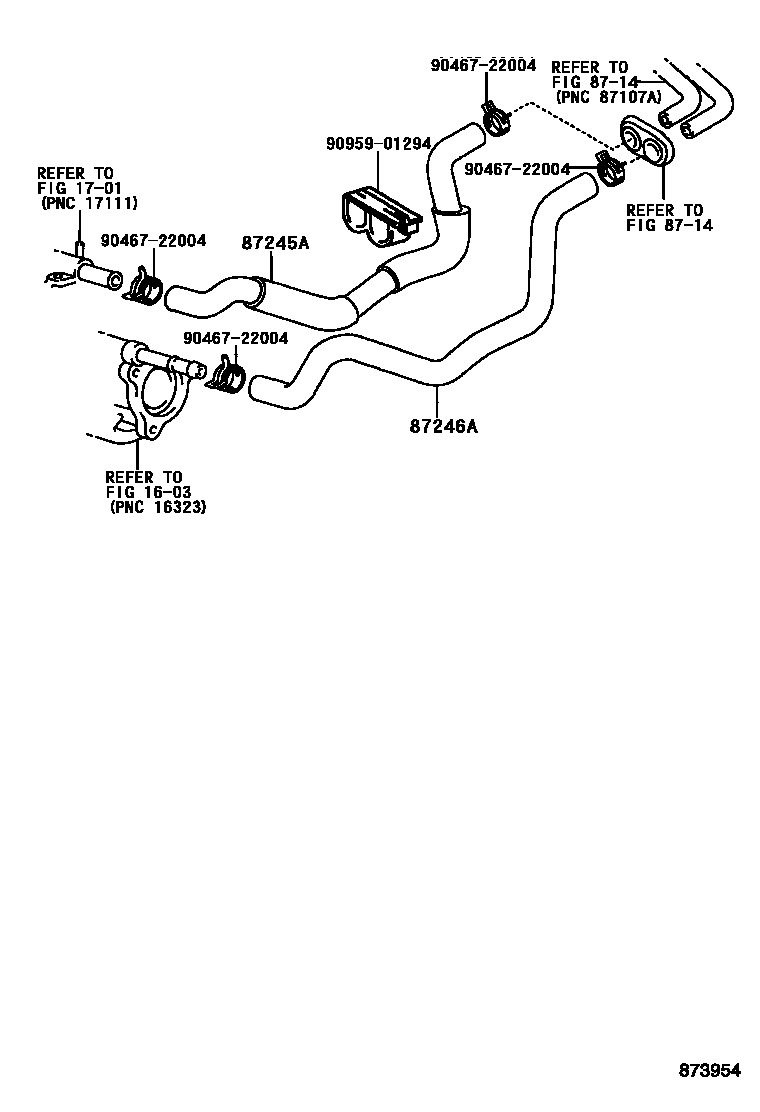

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-07100iMCX20200002-200207

87246AHOSE, HEATER WATER, OUTLET A

main87245-07110iMCX20200002-200207

9046722004

main90467-22004

9095901294

main90959-01294

7 parts on this diagram · 1 diagram in section
