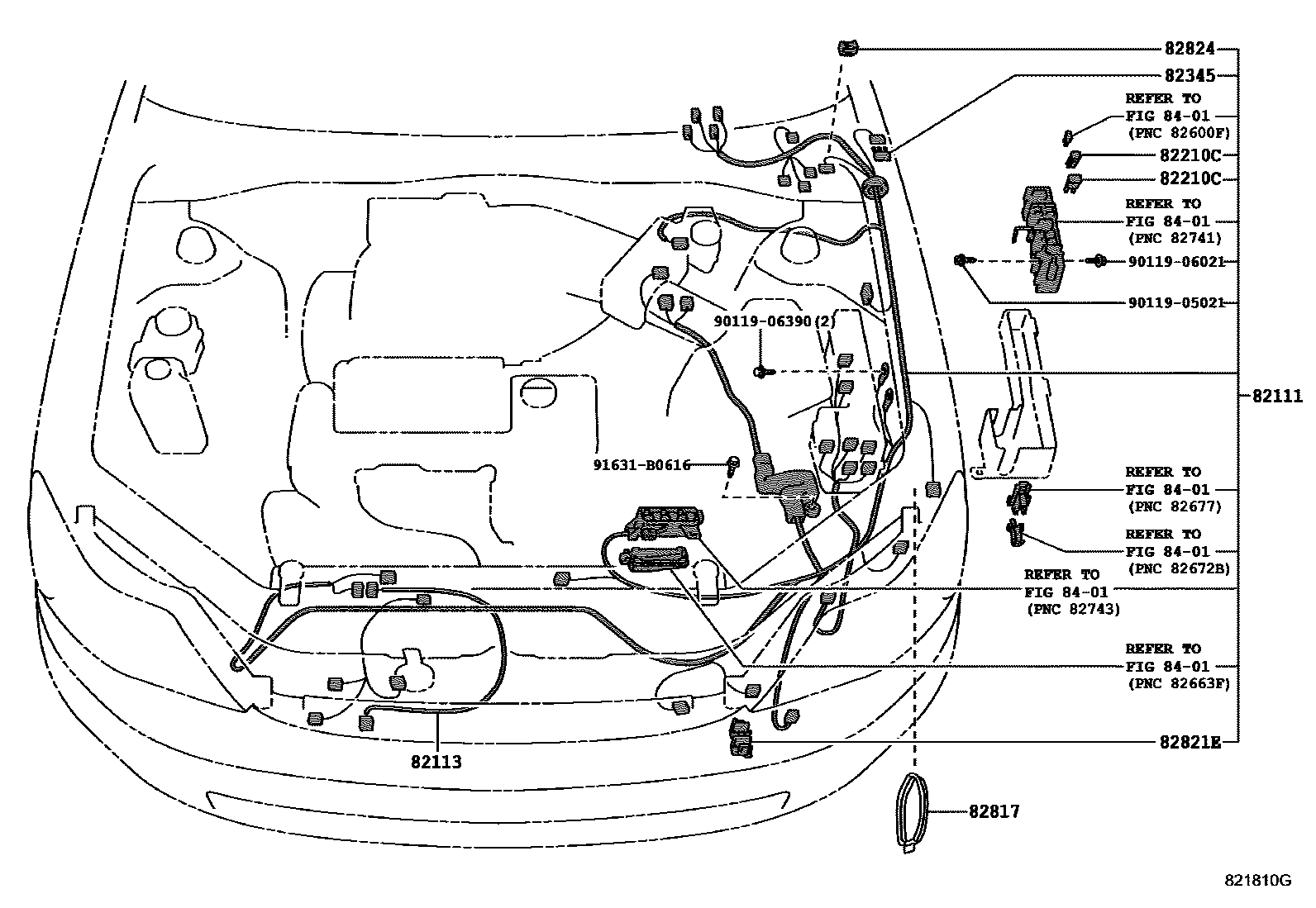

82111WIRE, ENGINE ROOM MAIN

main82111-07290iMCX20200002-200207

main82111-07300iMCX20..4FC200002-200207

3.0G

main82111-07370iMCX20200207-200301

main82111-07380iMCX20..4FC200207-200301

82113WIRE, ENGINE ROOM, NO.3

main82113-07010iMCX20200002-200207

82210CFUSIBLE LINK

main90982-08202iMCX20200002-200207

main90982-08254iMCX20200002-200207

main90982-08283iMCX20200207-200301

main90982-08284iMCX20200002-200207

main90982-08285iMCX20200207-200301

82345DIODE

main82345-12050iMCX20200002-200207

main82345-20040iMCX20200002-200207

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-07420iMCX20200002-200207

82821ECOVER, CONNECTOR

main82821-33150iMCX20200002-200207

82824CONNECTOR, WIRING HARNESS

main82824-22070iMCX20200002-200207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011905021

main90119-05021

9011906021

main90119-06021

9011906390

main90119-06390

91631B0616

main91631-B0616
