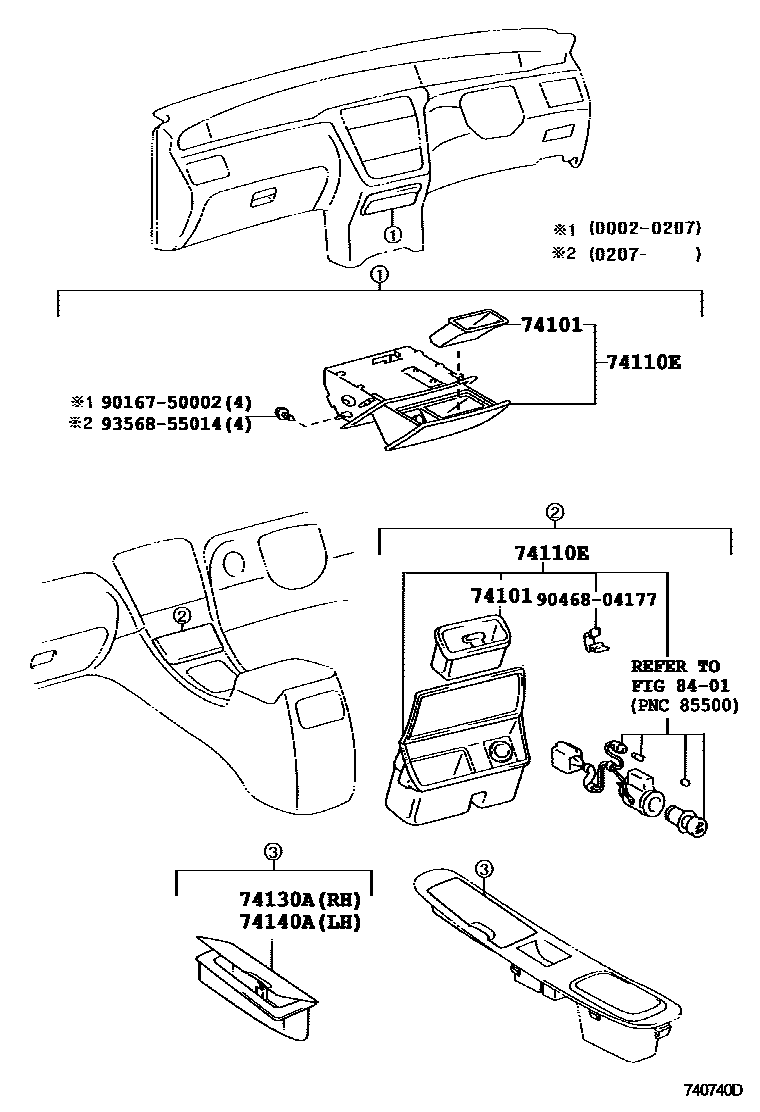

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-AC020iMCX20..4FC200002-200207

main74101-AC030iMCX20..4HC200002-200207

74110ERECEPTACLE ASSY, FRONT ASH

main74110-AC040iMCX20..4FC200207-200301

main74110-AC050-A0iMCX20..4HC200002-200207

IVORY,TRIM0#

main74110-AC050-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-AC030iMCX20200002-200207

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-AC030iMCX20200002-200207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016750002

main90167-50002

9046804177

main90468-04177

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
