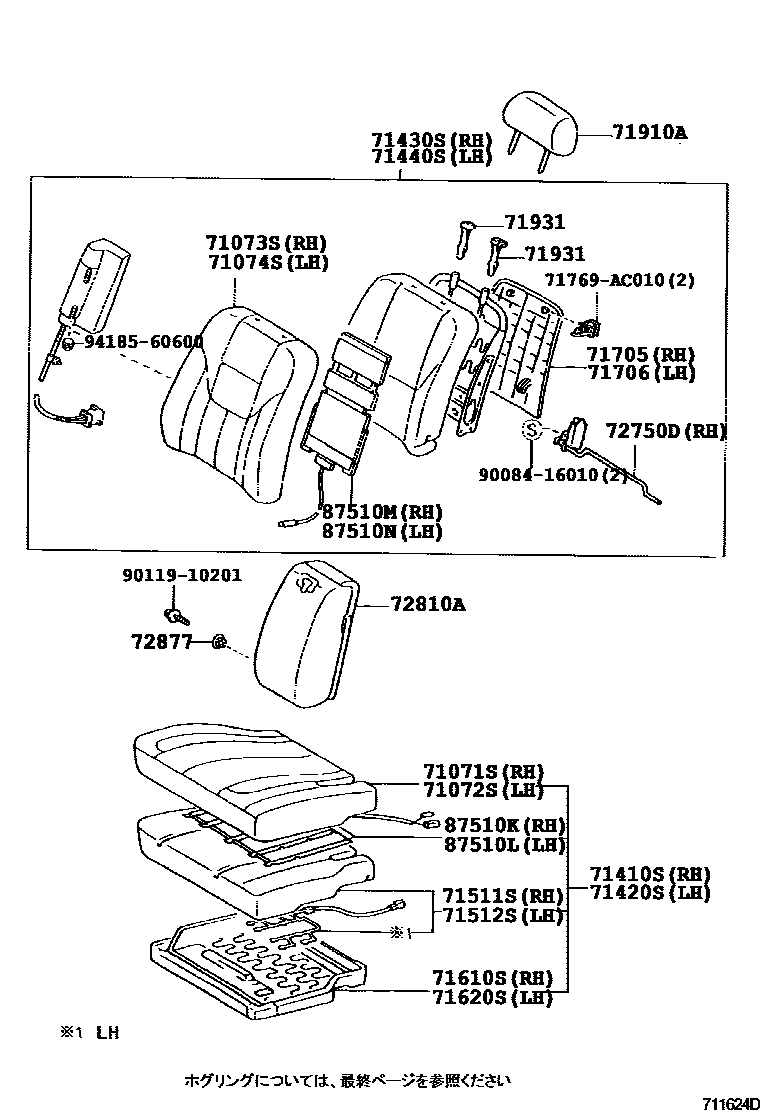

FRONT SEAT & SEAT TRACK

0001 1 0002 1������� ������-� 0003 1������ ���-�-� 0004 1������� ���-�-� 0005 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-AC170-A1iMCX20..4FC200002-200207

main71071-AC170-E3iMCX20..4FC200207-200301

FAWN,TRIM4#

main71071-AC250-A3iMCX20..4HC200002-200207

main71071-AC260-A1iMCX20..4FC200002-200207

main71071-AC261-E1iMCX20..4FC200207-200301

main71071-AC290-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-AC230-A1iMCX20..4FC200002-200207

main71072-AC230-E0iMCX20..4FC200207-200301

FAWN,TRIM4#

main71072-AC250-A3iMCX20..4HC200002-200207

main71072-AC260-A1iMCX20..4FC200002-200207

main71072-AC261-E1iMCX20..4FC200207-200301

main71072-AC290-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-AC120-A1iMCX20..4FC200002-200207

main71073-AC120-E3iMCX20..4FC200207-200301

FAWN,TRIM4#

main71073-AC140-A1iMCX20..4FC200002-200207

main71073-AC141-E3iMCX20..4FC200207-200301

main71073-AC200-A3iMCX20..4HC200002-200207

main71073-AC230-E1iMCX20..4HC200207-200301

FAWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-AC120-A1iMCX20..4FC200002-200207

main71074-AC120-E3iMCX20..4FC200207-200301

FAWN,TRIM4#

main71074-AC140-A1iMCX20..4FC200002-200207

main71074-AC141-E3iMCX20..4FC200207-200301

main71074-AC200-A3iMCX20..4HC200002-200207

main71074-AC230-E1iMCX20..4HC200207-200301

FAWN,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-AC200-A0iMCX20..4FC200002-200207

main71410-AC200-E1iMCX20..4FC200207-200301

***,FAWN,TRIM4#

main71410-AC210-A0iMCX20..4FC200002-200207

main71410-AC211-E2iMCX20..4FC200207-200301

main71410-AC270-A0iMCX20..4HC200002-200207

main71410-AC300-E1iMCX20..4HC200207-200301

***,FAWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-AC200-A0iMCX20..4FC200002-200207

main71420-AC201-E2iMCX20..4FC200207-200301

main71420-AC260-A0iMCX20..4HC200002-200207

main71420-AC270-A0iMCX20..4FC200002-200207

main71420-AC270-E1iMCX20..4FC200207-200301

***,FAWN,TRIM4#

main71420-AC300-E1iMCX20..4HC200207-200301

***,FAWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-AC230-A0iMCX20..4FC200002-200207

main71430-AC230-E1iMCX20..4FC200207-200301

FAWN,TRIM4#

main71430-AC240-A0iMCX20..4FC200002-200207

main71430-AC241-E2iMCX20..4FC200207-200301

main71430-AC260-A0iMCX20..4HC200002-200207

main71430-AC300-E1iMCX20..4HC200207-200301

FAWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-AC260-A0iMCX20..4FC200002-200207

main71440-AC260-E1iMCX20..4FC200207-200301

FAWN,TRIM4#

main71440-AC270-A0iMCX20..4FC200002-200207

main71440-AC271-E2iMCX20..4FC200207-200301

main71440-AC290-A0iMCX20..4HC200002-200207

main71440-AC350-E1iMCX20..4HC200207-200301

FAWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-AC040iMCX20..4FC200002-200207

main71511-AC050iMCX20..4HC200002-200207

main71511-AC070iMCX20..4FC200002-200207

main71511-AC080iMCX20..4HC200207-200301

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-AC020iMCX20..4FC200002-200207

main71502-AC040iMCX20..4HC200002-200207

main71502-AC050iMCX20..4FC200002-200207

main71502-AC080iMCX20..4HC200207-200301

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-AC030iMCX20..4FC200002-200207

main71610-AC040iMCX20..4HC200207-200301

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-AC020iMCX20..4FC200207-200301

main71620-AC030iMCX20..4FC200207-200301

main71620-AC040iMCX20..4HC200002-200207

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-AC070-A1iMCX20..4FC200002-200207

main71705-AC070-E0iMCX20200207-200301

FAWN,TRIM4#

main71705-AC080-A3iMCX20200002-200207

main71705-AC081-E3iMCX20..4FC200207-200301

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-AC070-A1iMCX20..4FC200002-200207

main71705-AC070-E0iMCX20200207-200301

FAWN,TRIM4#

main71705-AC080-A3iMCX20200002-200207

main71705-AC081-E3iMCX20..4FC200207-200301

71910AHEADREST ASSY, FRONT SEAT

main71910-AC060-A0×2iMCX20..4FC200002-200207

main71910-AC060-E0×2iMCX20200207-200301

FAWN,TRIM4#

main71910-AC070-A0×2iMCX20200002-200207

main71910-AC070-E0×2iMCX20..4FC200207-200301

71931SUPPORT, FRONT SEAT HEADREST

main71930-0C010-A0×2iMCX20200002-200207

main71930-0C010-E1×2iMCX20200207-200301

main71931-0C010-A0×2iMCX20200002-200207

main71931-0C010-E1×2iMCX20200207-200301

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-AC020iMCX20..4FC200002-200207

72810AARMREST ASSY, SEAT, RH

main72810-AC130-A0iMCX20..4HC200002-200207

IVORY,TRIM0#

main72810-AC160-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

72877COVER, SEAT ARMREST, RH

main72877-AC010-A0iMCX20..4HC200002-200207

IVORY,TRIM0#

main72877-AC010-E8iMCX20..4HC200207-200301

FAWN,TRIM4#

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-AC010iMCX20200002-200207

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-AC010iMCX20200002-200207

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-AC010iMCX20200002-200207

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-AC010iMCX20200002-200207

71769AC010COVER, FRONT SEAT UNDER TRAY BRACKET

main71769-AC010

9008416010

main90084-16010

9011910201

main90119-10201

9418560600

main94185-60600

27 parts on this diagram · 5 diagrams in section
