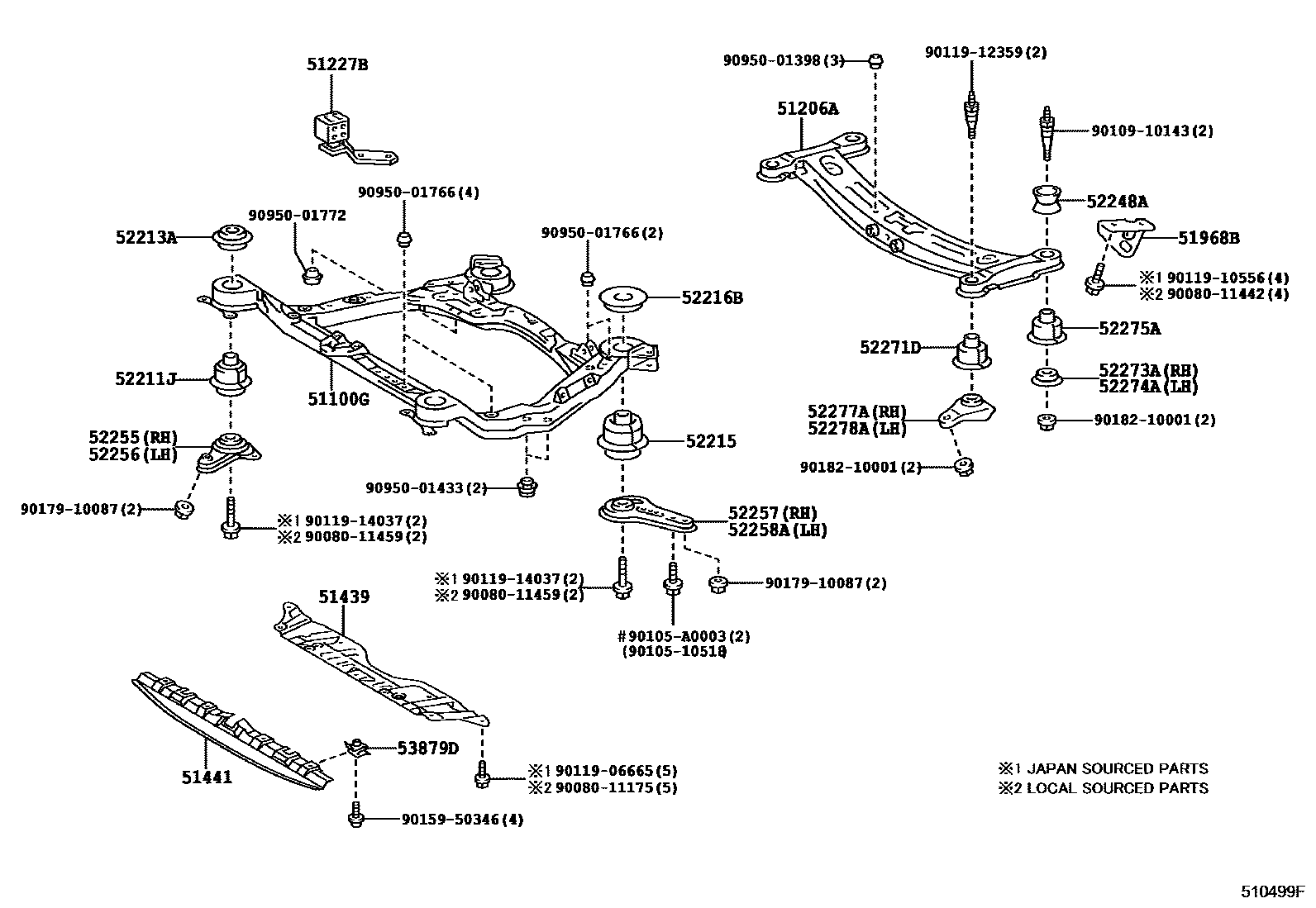

SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
51206AMEMBER SUB-ASSY, REAR SUSPENSION
3.0G *(G)
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51439PLATE, ENGINE REAR SIDE SHUTTER
51441COVER, ENGINE UNDER, NO.1
51968BHOOK, TRANSPORT, REAR LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52248ACOLLAR, BODY MOUNTING, REAR
52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
53879DRETAINER, FRONT FENDER LINER
9008011175
main90080-11175
9008011442
main90080-11442
9008011459
main90080-11459
9010510518
main90105-10518
90105A0003
main90105-A0003
9010910143
main90109-10143
9011906665
main90119-06665
9011910556
main90119-10556
9011912359
main90119-12359
9011914037
main90119-14037
9015950346
main90159-50346
9017910087
main90179-10087
9018210001
main90182-10001
9095001398
main90950-01398
9095001433
main90950-01433
9095001766
main90950-01766
9095001772
main90950-01772
39 parts on this diagram · 1 diagram in section
