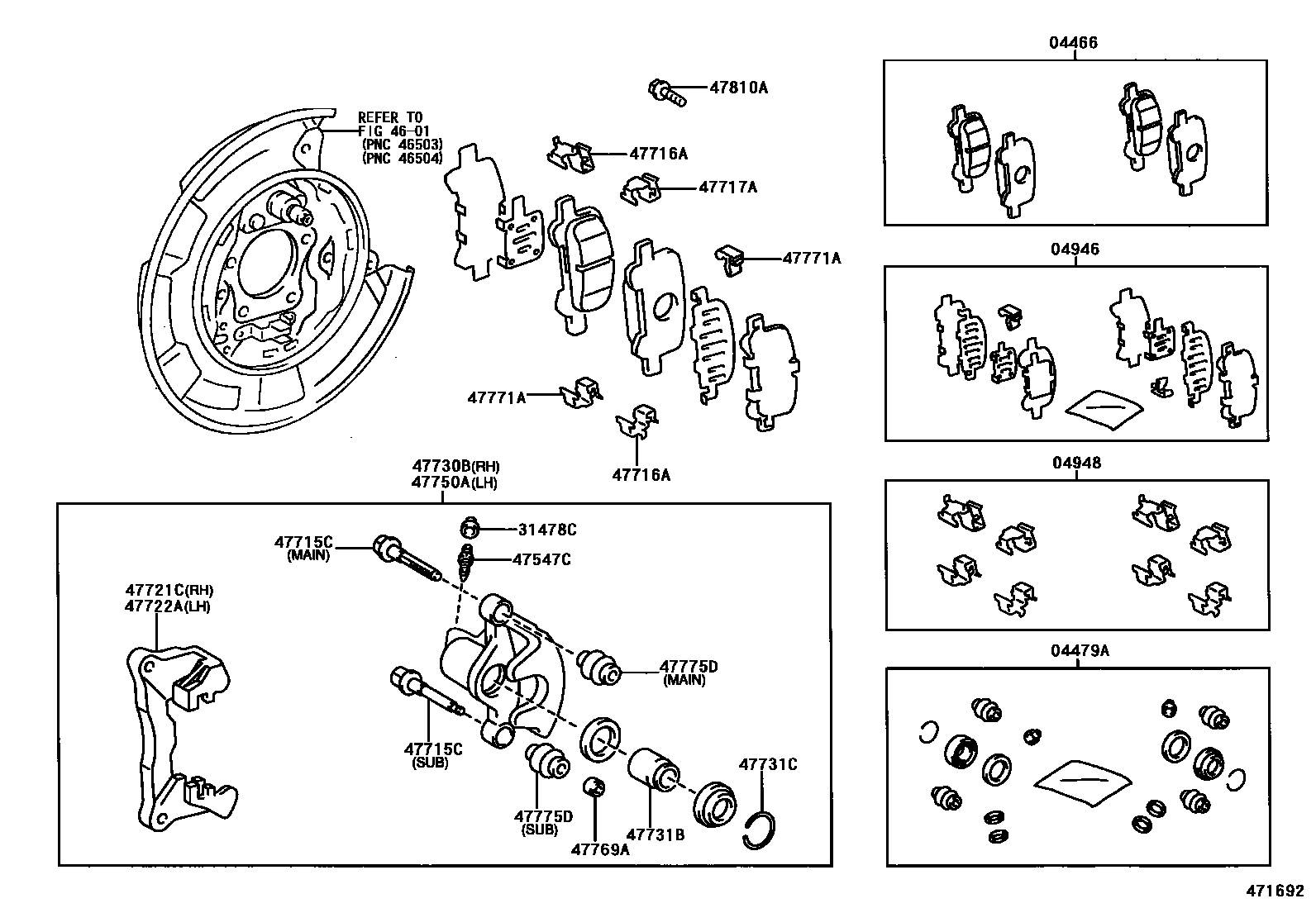

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-41020iMCX20200207-200301

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-07040iMCX20200002-200207

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-07020iMCX20200002-200207

04948FITTING KIT, DISC BRAKE, REAR

main04948-07020iMCX20200002-200207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMCX20200002-200207

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010×2iMCX20200002-200207

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-07050×2iMCX20200002-200207

main47715-07060×2iMCX20200002-200207

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-07020×4iMCX20200002-200207

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-07020×4iMCX20200002-200207

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-07050iMCX20200207-200301

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-07050iMCX20200002-200207

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-07040iMCX20200002-200207

47731BPISTON, REAR DISC BRAKE

main47731-07040×2iMCX20200002-200207

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52104×2iMCX20200002-200207

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-07040iMCX20200002-200207

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-06020×2iMCX20200002-200207

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-07030×2iMCX20200207-200301

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-41030×4iMCX20200002-200207

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440×4iMCX20200212-200301

main90119-10379×4iMCX20200207-200212
