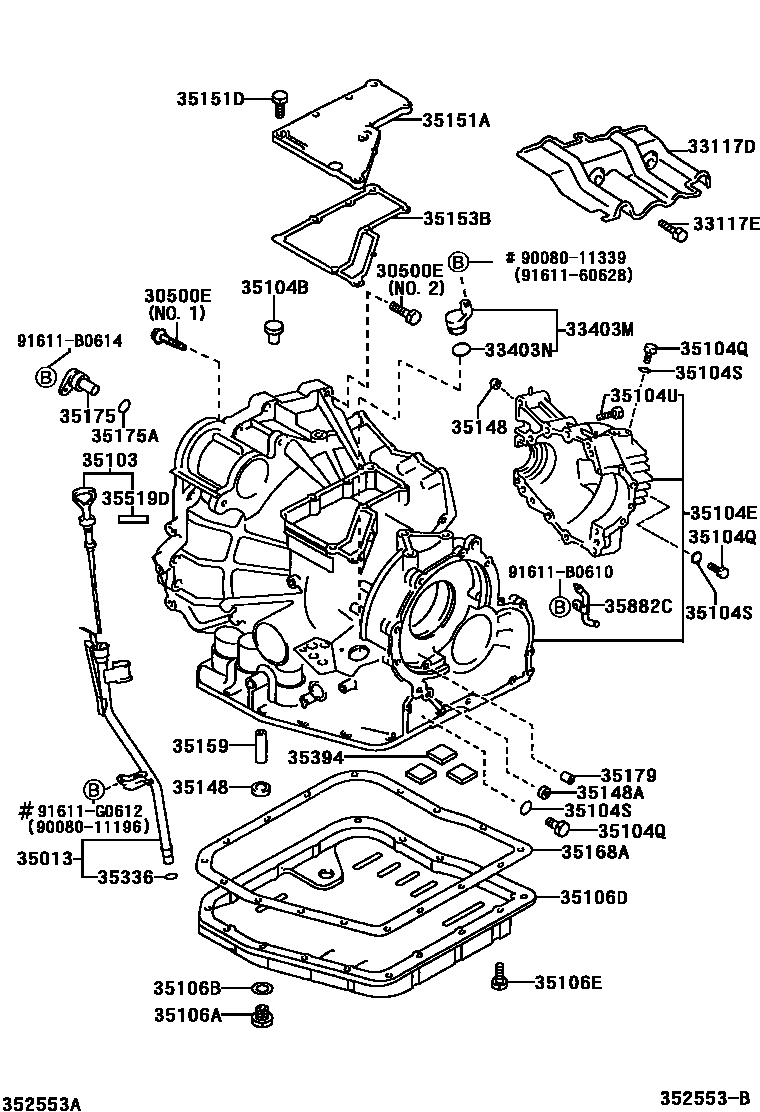

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-11310×4iMCX20200207-200301

main90080-11424iMCX20200207-200301

main90119-12168×4iMCX20200002-200207

main91619-61265iMCX20200002-200207

main92412-H1055iMCX20200207-200301

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-07010iMCX20200002-200207

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90080-10083×2iMCX20200207-200301

main91641-H0820×2iMCX20200002-200207

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iMCX20200002-200207

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iMCX20200002-200207

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-07010iMCX20200207-200301

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-07010iMCX20200207-200301

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCX20200002-200207

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33903iMCX20200002-200207

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iMCX20200002-200207

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iMCX20200207-200301

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222×6iMCX20200002-200207

main90105-10223×2iMCX20200207-200301

main90105-10224×2iMCX20200002-200207

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCX20200002-200207

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCX20200002-200207

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33020iMCX20200207-200301

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×17iMCX20200002-200207

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010×2iMCX20200002-200207

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-16010iMCX20200002-200207

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33022iMCX20200002-200207

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113×8iMCX20200002-200207

main90109-08235iMCX20200002-200207

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-33020iMCX20200002-200207

35159GASKET, BRAKE DRUM

main35159-32011iMCX20200207-200301

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33030iMCX20200002-200207

main35168-33031iMCX20200211-200301

35175CAP, TRANSAXLE CASE, NO.2

main35175-33010iMCX20200002-200207

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCX20200002-200207

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCX20200002-200207

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCX20200002-200207

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iMCX20200002-200207

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-30010iMCX20200002-200207

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCX20200002-200207

9008011196

main90080-11196

9008011339

main90080-11339

9161160628

main91611-60628

91611B0610

main91611-B0610

91611B0614

main91611-B0614

91611G0612

main91611-G0612

36 parts on this diagram · 1 diagram in section
