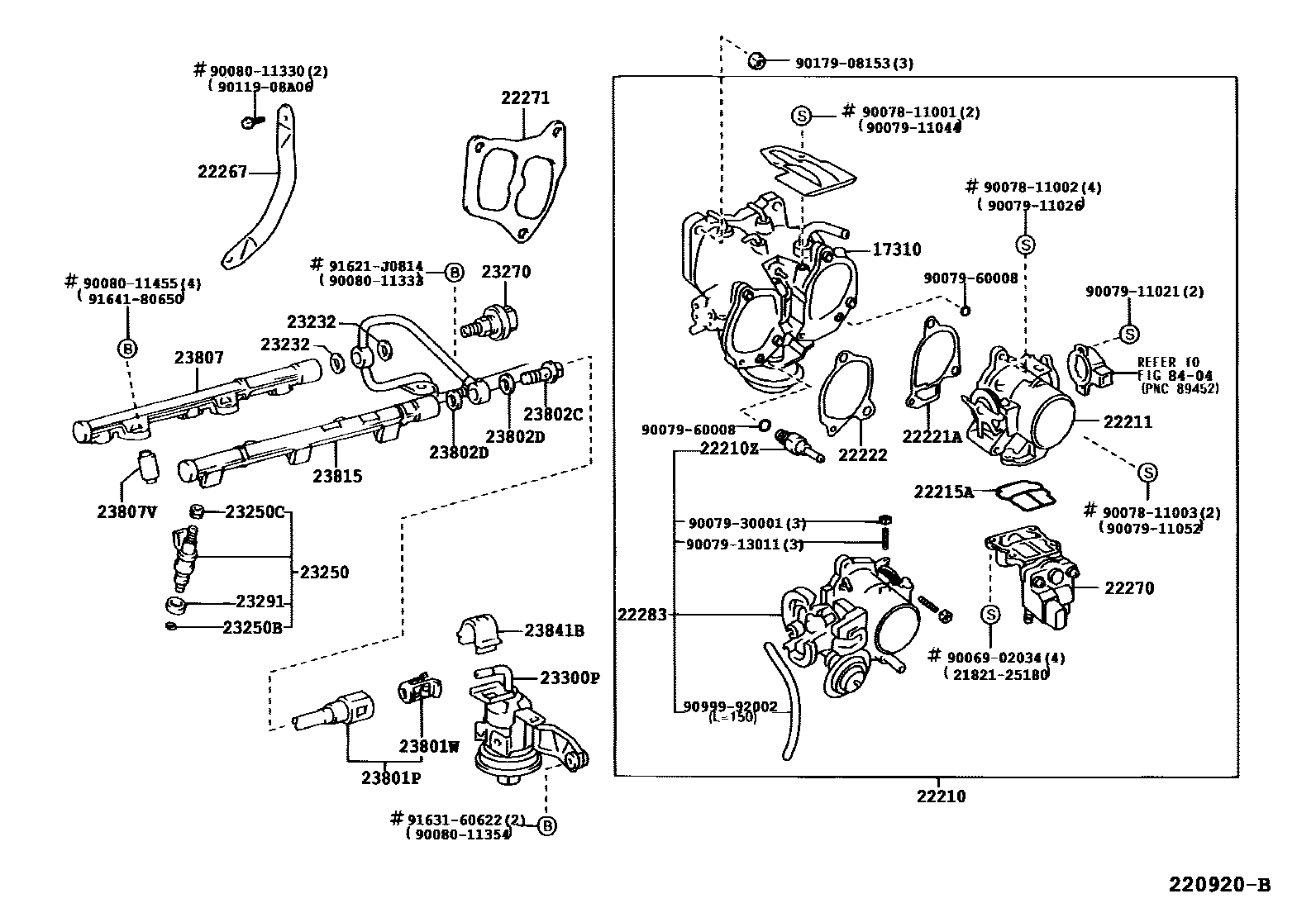

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

17310VALVE ASSY, INTAKE AIR CONTROL, NO.1

main17310-0A020i1MZFE..MCX20200207-200301

22210BODY ASSY, THROTTLE

main22210-0A120i1MZFE..MCX20200002-200207

22210ZTHERMOSTAT, MANIFOLD

main90916-03104i1MZFE..MCX20200002-200207

22211BODY, THROTTLE

main22211-0A110i1MZFE..MCX20200002-200207

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-0A010i1MZFE..MCX20200207-200301

main22215-20010i1MZFE..MCX20200002-200207

22221AGASKET, INTAKE AIR CONTROL VALVE, NO.1

main22221-0A110i1MZFE..MCX20200207-200301

main22221-20132i1MZFE..MCX20200207-200301

22222GASKET, INTAKE AIR CONTROL VALVE, NO.2

main22222-0A110i1MZFE..MCX20200002-200207

main22222-20132i1MZFE..MCX20200002-200207

22267BRACKET, THROTTLE BODY

main22267-0A010i1MZFE..MCX20200207-200301

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0A060i1MZFE..MCX20200008-200207

main22270-20060i1MZFE..MCX20200002-200008

22271GASKET, THROTTLE BODY

main22271-0A020i1MZFE..MCX20200002-200207

22283BODY, THROTTLE, NO.2

main22283-0A120i1MZFE..MCX20200002-200207

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081×2i1MZFE..MCX20200207-200301

23250INJECTOR ASSY, FUEL

main23209-0A010×6i1MZFE..MCX20200207-200301

main23209-20020×6i1MZFE..MCX20200002-200207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×12i1MZFE..MCX20200002-200207

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i1MZFE..MCX20200002-200207

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-62010i1MZFE..MCX20200207-200301

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×6i1MZFE..MCX20200002-200207

23300PFILTER, FUEL(FOR EFI)

main23300-20111i1MZFE..MCX20200002-200207

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20080i1MZFE..MCX20200002-200207

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i1MZFE..MCX20200002-200207

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i1MZFE..MCX20200002-200207

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026×2i1MZFE..MCX20200207-200301

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCX20200002-200207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×4i1MZFE..MCX20200002-200207

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i1MZFE..MCX20200002-200207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-20020i1MZFE..MCX20200002-200207

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9006902034

main90069-02034

9007811001

main90078-11001

9007811002

main90078-11002

9007811003

main90078-11003

9007911021

main90079-11021

9007911026

main90079-11026

9007911044

main90079-11044

9007911052

main90079-11052

9007913011

main90079-13011

9007930001

main90079-30001

9007960008

main90079-60008

9008011330

main90080-11330

9008011333

main90080-11333

9008011354

main90080-11354

9008011455

main90080-11455

9011908A06

main90119-08A06

9017908153

main90179-08153

9099992002

main90999-92002

91621J0814

main91621-J0814

9163160622

main91631-60622

9164180650

main91641-80650

49 parts on this diagram · 3 diagrams in section
