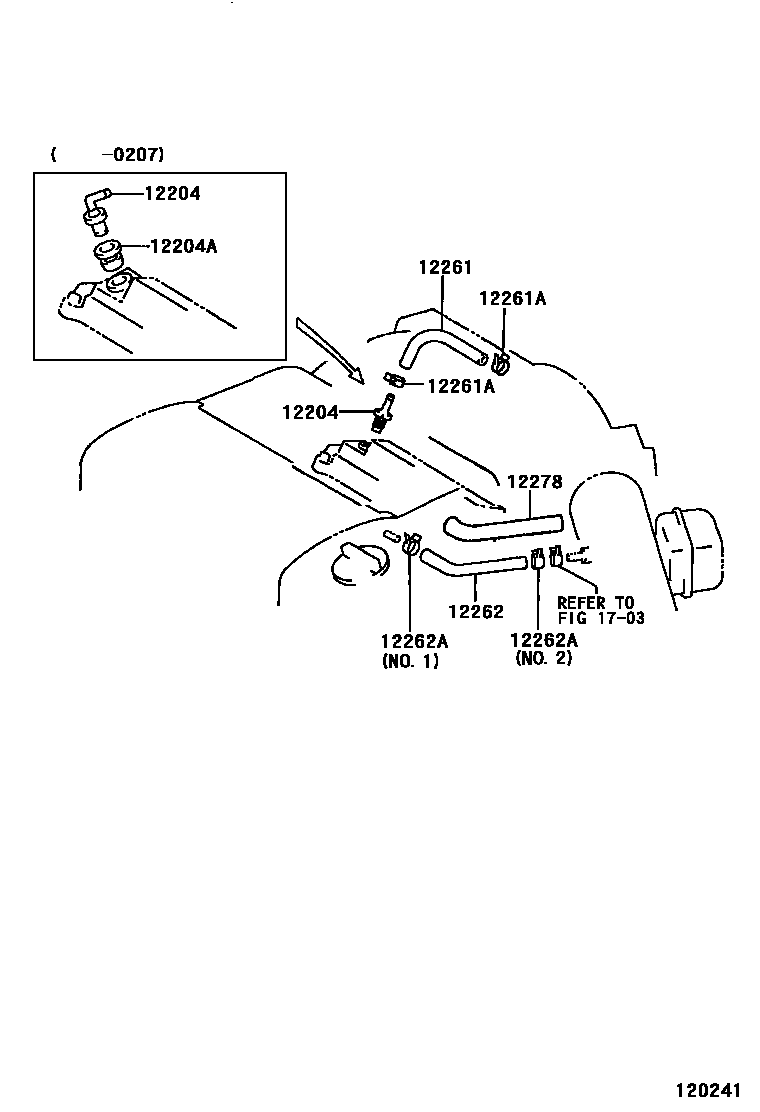

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-20010i1MZFE..MCX20200002-200203

main12204-20020i1MZFE..MCX20200203-200207

main12204-20040i1MZFE..MCX20200207-200301

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1MZFE..MCX20200002-200207

12261HOSE, VENTILATION

main12261-20011i1MZFE..MCX20200002-200301

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1MZFE..MCX20200002-200301

12262HOSE, VENTILATION, NO.2

main12262-0A040i1MZFE..MCX20200002-200301

sub12262-20020

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i1MZFE..MCX20200002-200207

sub96134-51700

main96134-41900i1MZFE..MCX20200002-200301

main96134-51700i1MZFE..MCX20200207-200301

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0A020i1MZFE..MCX20200002-200301

1703

8 parts on this diagram · 1 diagram in section
