AIR BAG

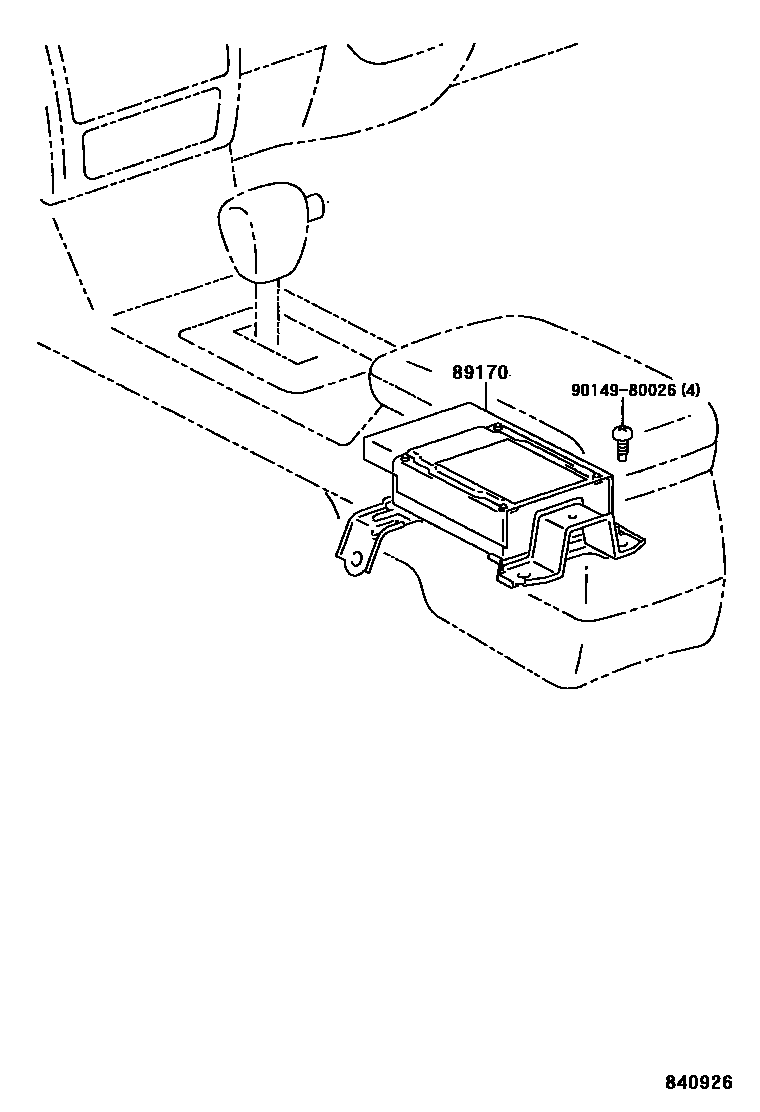

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-07010i199503-199608

main89170-07020i199503-199608

main89170-07040i199709-199808

main89170-07050i199709-199808

main89170-07080i199808

main89170-07090i199808

main89170-41010i199608-199709

9014980026

main90149-80026

2 parts on this diagram · 2 diagrams in section
