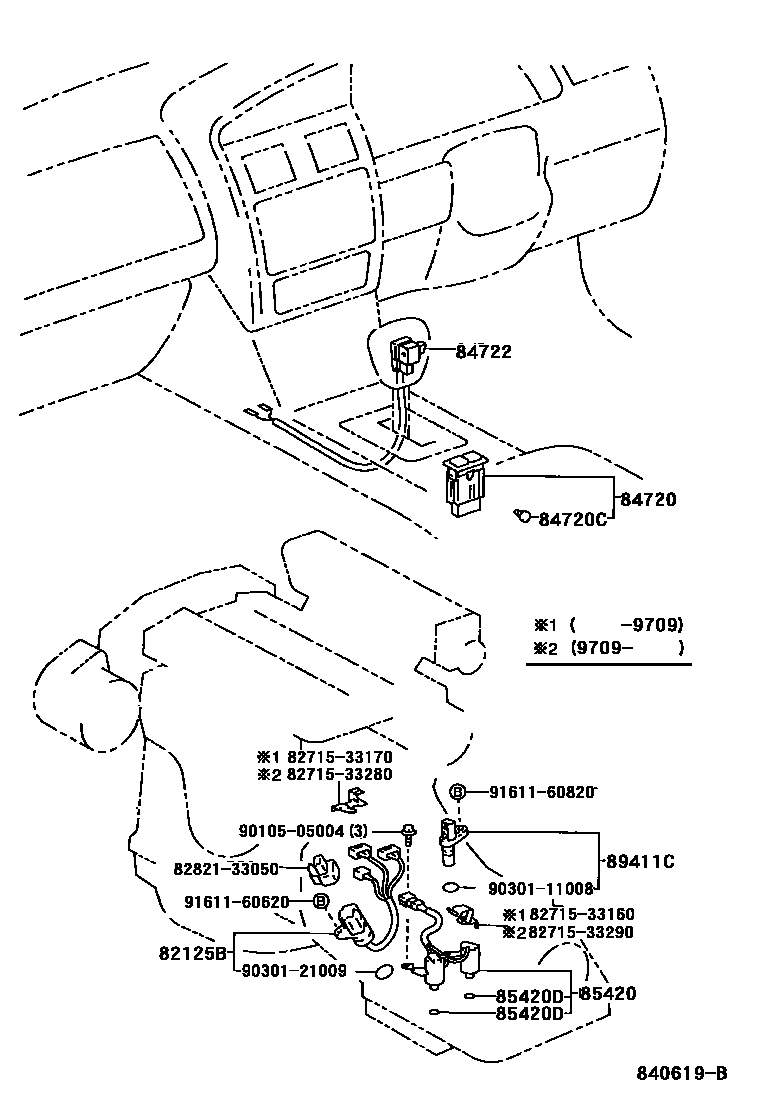

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-33010iMCX10199503-199709

main82125-33020iMCX10199709

84720SWITCH ASSY, PATTERN SELECT

main84720-41010iMCX10199503

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-09001iMCX10199503

84722SWITCH, TRANSMISSION CONTROL

main84722-07020-E0iMCX10199503-199709

DK. ADOBE,TRIM4#

main84722-07020-E1iMCX10199709-199808

ROSE STONE,TRIM4#

main84722-07021-E1iMCX10199808

ROSE STONE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCX10199503-199709

main85420-33030iMCX10199709

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iMCX10199503

89411CSENSOR, SPEED

main89411-33010iMCX10199503-200002

main89413-24010iMCX10199503-200002

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

8271533280BRACKET,WIRING HARNESS CLAMP

main82715-33280

8271533290BRACKET,WIRING HARNESS CLAMP

main82715-33290

8282133050RETAINER, HEADLAMP HARNESS

main82821-33050

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

17 parts on this diagram · 1 diagram in section
