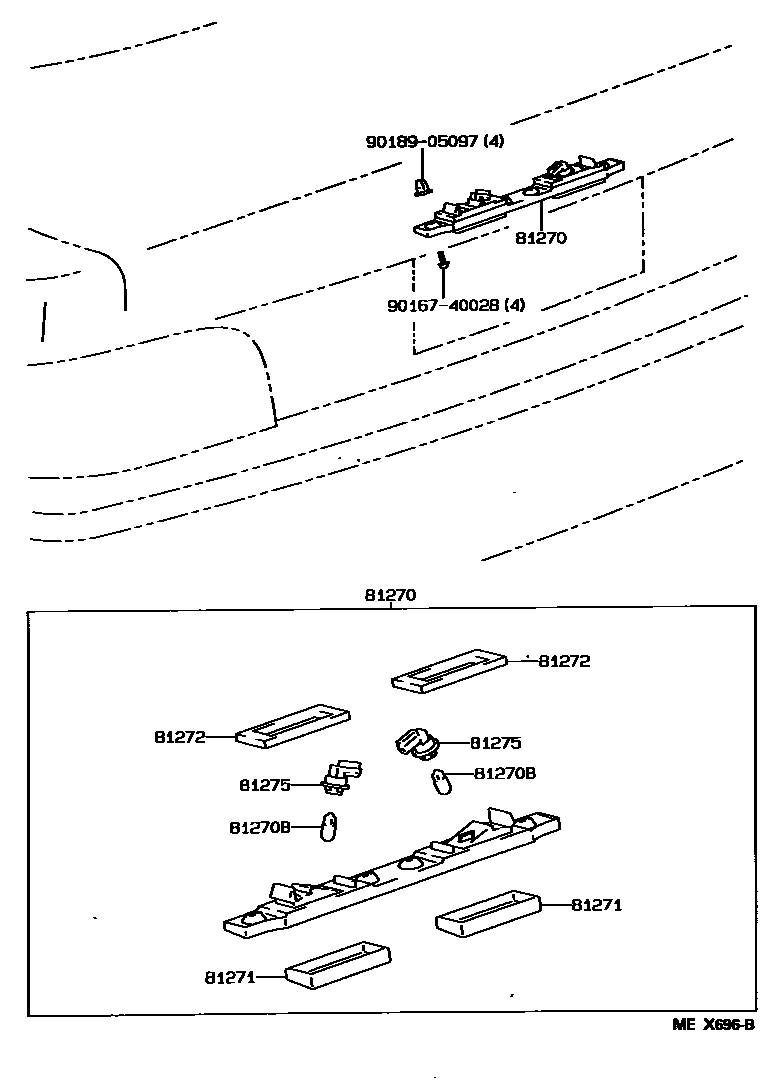

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-AA010×2iMCX10199709

main81270-AC010iMCX10199503-199709

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iMCX10199503

81271LENS, LICENSE PLATE LAMP

main81271-AA010×2iMCX10199709

main81271-AC010×2iMCX10199503-199709

81272GASKET, LICENSE PLATE LAMP LENS

main81272-AA010×2iMCX10199709-199801

main81272-AA011×2iMCX10199801

main81272-AC010×2iMCX10199503-199709

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-AA010×2iMCX10199709

main81945-AC020×2iMCX10199503-199709

9016740028

main90167-40028

9018905097

main90189-05097

7 parts on this diagram · 2 diagrams in section
