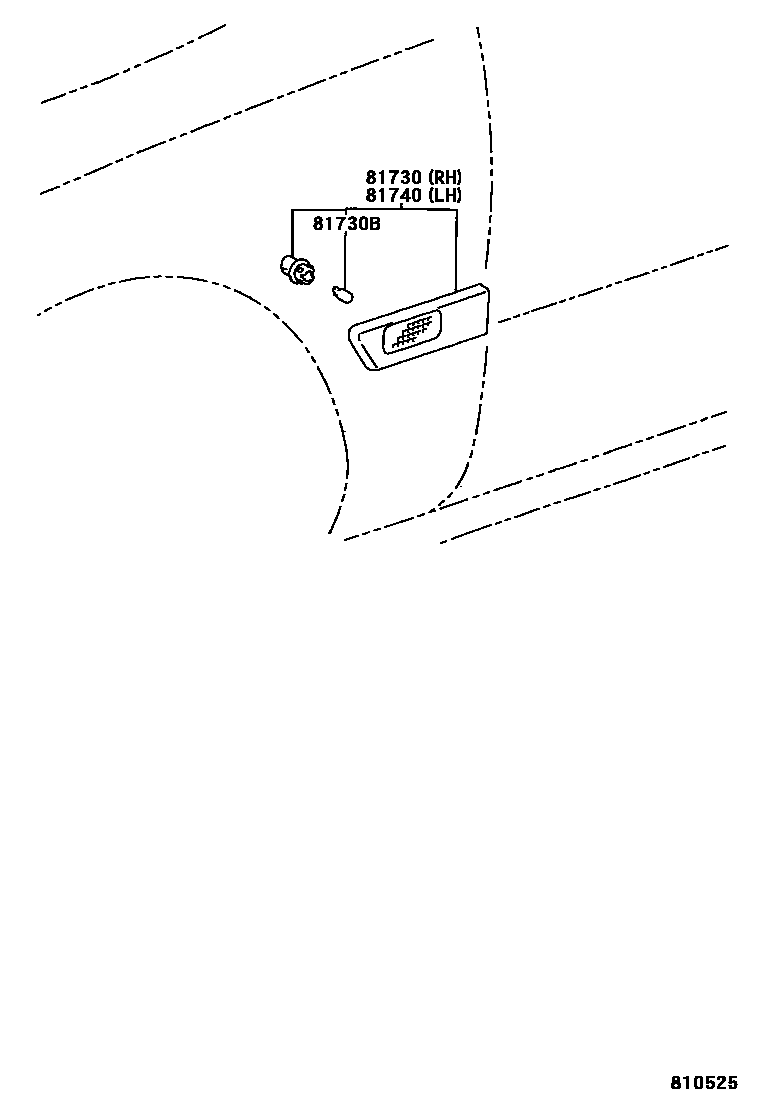

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-AC020-A1iMCX10199503

SU.WHITE PM,051

main81730-AC020-H0iMCX10199503

DK.TEAL GREEN MC.,751

main81730-AC020-J0iMCX10199503-199608

DK.BLUE M.M.,8K0

main81730-AC020-J1iMCX10199608

DK.BLUE M.M.,8L3

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iMCX10199503

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-AC020-A1iMCX10199503-199709

SU.WHITE PM,051

main81740-AC020-H0iMCX10199503-199709

DK.TEAL GREEN MC.,751

main81740-AC020-J0iMCX10199503-199608

DK.BLUE M.M.,8K0

main81740-AC020-J1iMCX10199608-199709

DK.BLUE M.M.,8L3

3 parts on this diagram · 1 diagram in section
