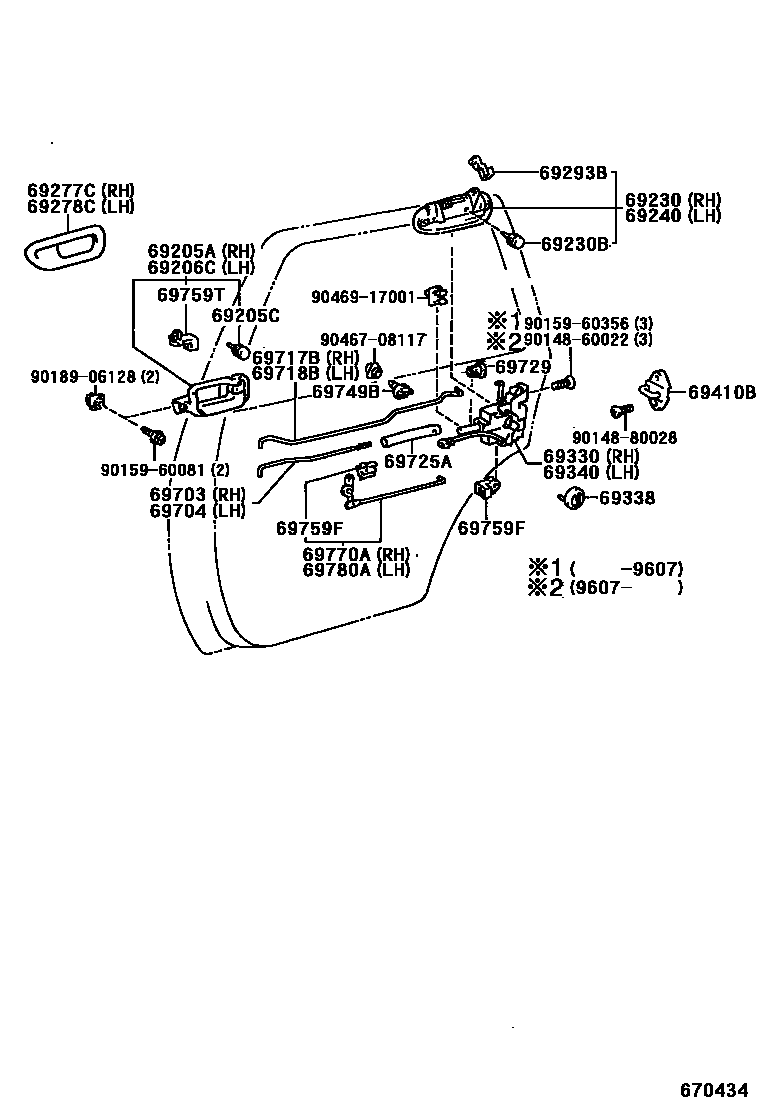

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM4#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SU.WHITE PM,28Y
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SU.WHITE PM,051
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69330LOCK ASSY, REAR DOOR, RH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69725APROTECTOR, DOOR INSIDE LOCKING LINK
69729RETAINER, DOOR LOCKING LINK PROTECTOR
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880028
main90148-80028
9015960081
main90159-60081
9015960356
main90159-60356
9018906128
main90189-06128
9046708117
main90467-08117
9046917001
main90469-17001
31 parts on this diagram · 1 diagram in section
