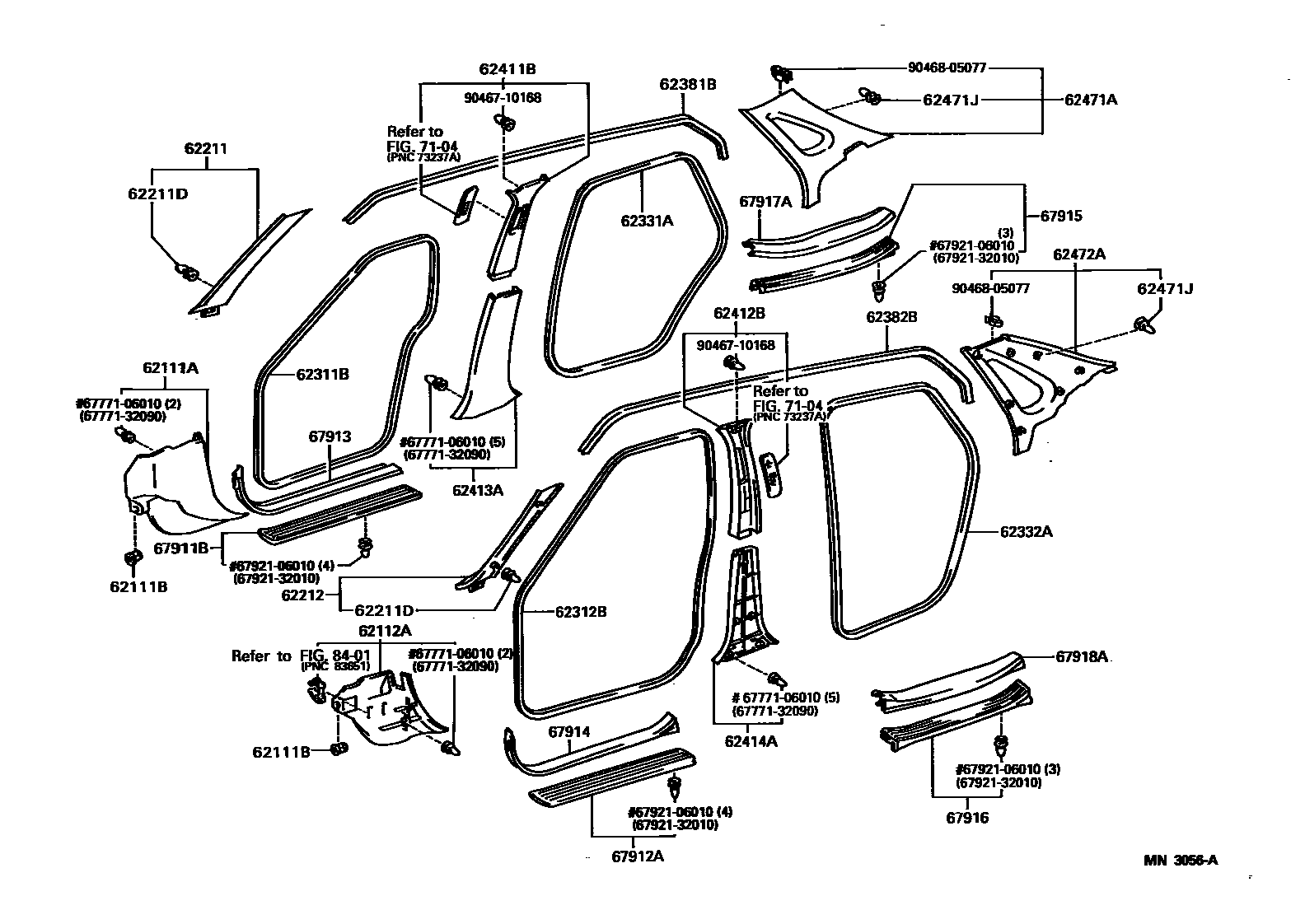

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62101-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06158-C0×2iMCX10199503

BLACK,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62102-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62210-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10168×4iMCX10199503

62212GARNISH, FRONT PILLAR, LH

main62220-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62220-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-07020-E0iMCX10199709-199812

QUARTZ,TRIM4#

main62311-07021-E0iMCX10199812

QUARTZ,TRIM4#

main62311-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-07020-E0iMCX10199709-199812

QUARTZ,TRIM4#

main62312-07021-E0iMCX10199812

QUARTZ,TRIM4#

main62312-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-07020-E0iMCX10199709

QUARTZ,TRIM4#

main62331-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-07020-E0iMCX10199709

QUARTZ,TRIM4#

main62332-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-AC010iMCX10199503-199601

main62381-AC011iMCX10199601-199605

main62381-AC012iMCX10199605

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-AC010iMCX10199503-199601

main62382-AC011iMCX10199601-199605

main62382-AC012iMCX10199605

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62410-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62420-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main62413-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main62414-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62470-AC020-E2iMCX10199709

QUARTZ,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10168×14iMCX10199503

62472AGARNISH, ROOF SIDE, INNER LH

main62480-AC020-E0iMCX10199503-199709

ADOBE,TRIM4#

main62480-AC020-E2iMCX10199709

QUARTZ,TRIM4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-AC010iMCX10199503

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-AC010iMCX10199503

67913PLATE, FRONT DOOR SCUFF, RH

main67913-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main67913-AC010-E1iMCX10199503-199709

LT.ADOBE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main67914-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-AC010iMCX10199503

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-AC010iMCX10199503

67917APLATE, REAR DOOR SCUFF, RH

main67917-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main67917-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-AC010-E0iMCX10199709

QUARTZ,TRIM4#

main67918-AC010-E1iMCX10199503-199709

LT. ADOBE,TRIM4#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777106010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-06010

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9046710168

main90467-10168

9046805077

main90468-05077

35 parts on this diagram · 1 diagram in section
