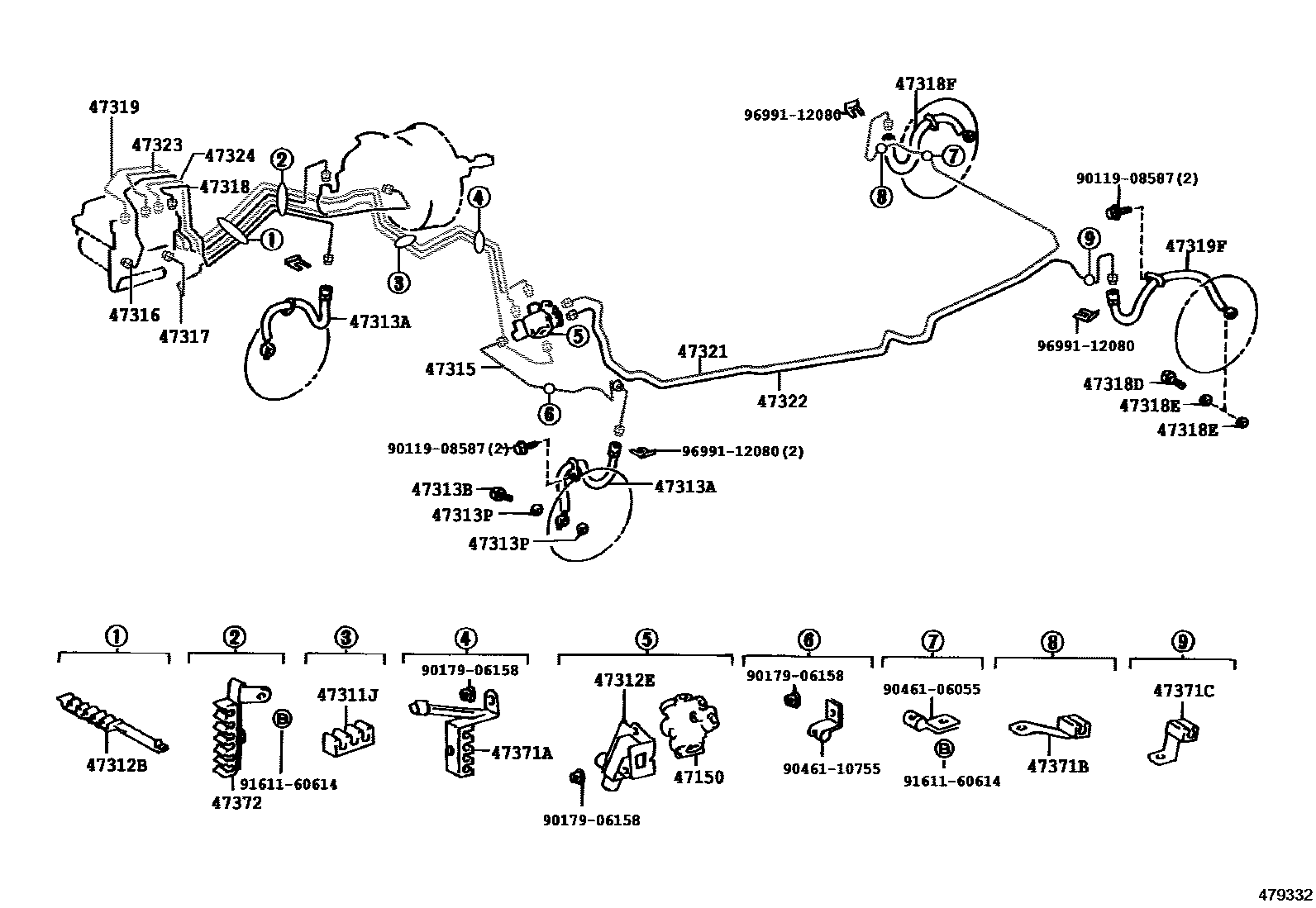

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-16060iMCX10199503-199709

main47150-33020iMCX10199709

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-01610iMCX10199503-199608

47312BGROMMET, NO.2(FOR FRONT BRAKE TUBE)

main90480-01627iMCX10199503-199608

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10209iMCX10199503-199608

main90904-12038iMCX10199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94033iMCX10199608

main90080-94034iMCX10199608

main90947-02734iMCX10199503-199608

main90947-02736iMCX10199503-199608

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iMCX10199503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iMCX10199503

47315TUBE, FRONT BRAKE, NO.5

main47315-06060iMCX10199503-199608

main47315-07020iMCX10199608

47316TUBE, FRONT BRAKE, NO.6

main47316-07010iMCX10199503-199608

main47316-07040iMCX10199608

47317TUBE, FRONT BRAKE, NO.7

main47317-07010iMCX10199503-199608

main47317-07040iMCX10199608

47318TUBE, FRONT BRAKE, NO.8

main47318-06030iMCX10199506-199608

main47318-06060iMCX10199608

main47318-07010iMCX10199503-199506

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iMCX10199503

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iMCX10199503

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94018iMCX10199503

47319TUBE, FRONT BRAKE, NO.9

main47319-07010iMCX10199503-199608

main47319-07040iMCX10199608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94019iMCX10199503

47321TUBE, REAR BRAKE, NO.1

main47321-07020iMCX10199503

47322TUBE, REAR BRAKE, NO.2

main47322-07020iMCX10199503

47323TUBE, REAR BRAKE, NO.3

main47323-07010iMCX10199503-199608

main47323-07040iMCX10199608

47324TUBE, REAR BRAKE, NO.4

main47324-07010iMCX10199503-199608

main47324-07040iMCX10199608

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33100iMCX10199608

main47371-41010iMCX10199503-199608

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCX10199503

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCX10199503

47372CLAMP, BRAKE TUBE, NO.2

main47371-33050iMCX10199503-199608

main47371-41010iMCX10199608

9011908587

main90119-08587

9017906158

main90179-06158

9046106055

main90461-06055

9046110755

main90461-10755

9161160614

main91611-60614

9699112080

main96991-12080

30 parts on this diagram · 4 diagrams in section
