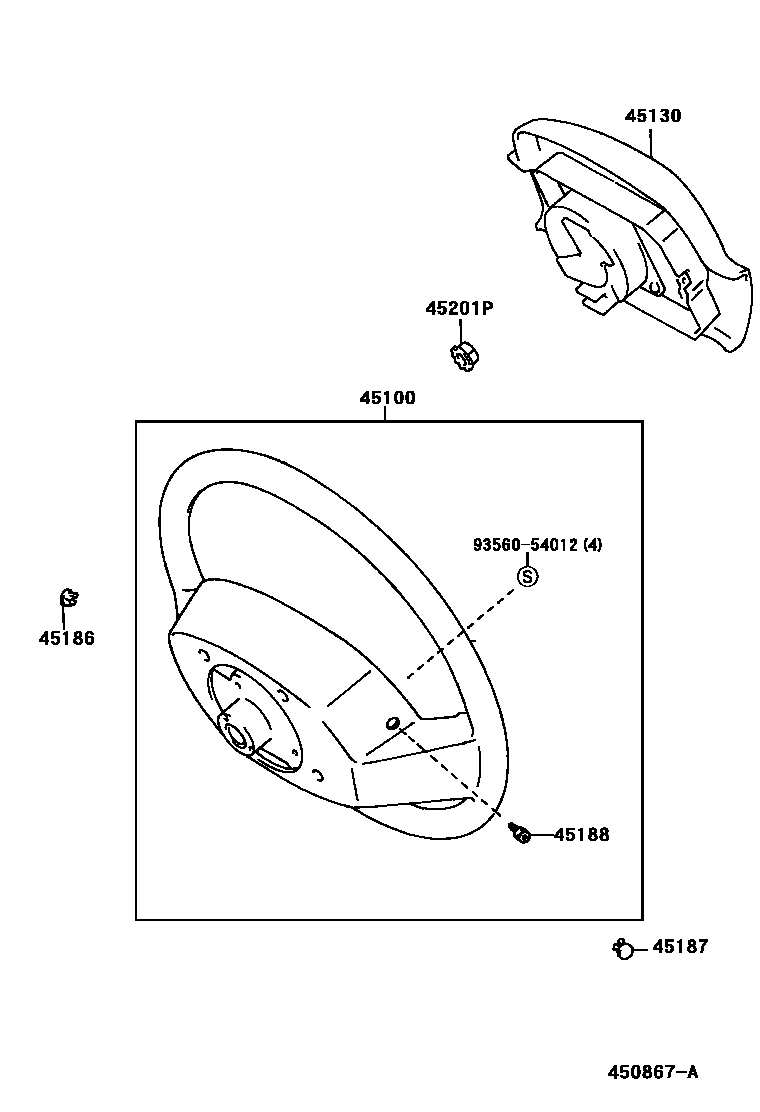

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-07020-E1iMCX10199503-199608

main45100-07030-E0iMCX10199503-199608

main45100-07050-E0iMCX10199608-199709

main45100-07060-E0iMCX10199608-199709

main45100-07080-E0iMCX10199709-200002

main45100-07090-E0iMCX10199709-200002

45130BUTTON ASSY, HORN

main45130-07010-E1iMCX10199503-199709

ADOBE,TRIM4#

main45130-07021-E0iMCX10199709-200003

ROSE STONE,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-06070-E1iMCX10199608-199709

DK. ADOBE,TRIM4#

main45186-06070-E2×2iMCX10199709

ROSE STONE,TRIM4#

main45186-07010-E1iMCX10199503-199608

ADOBE,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-06070-E1iMCX10199608-199709

DK. ADOBE,TRIM4#

main45186-07010-E1iMCX10199503-199608

ADOBE,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-06010×2iMCX10199503-200002

45201PNUT, STEERING WHEEL SET

main90179-12071iMCX10199503

9356054012

main93560-54012

7 parts on this diagram · 1 diagram in section
