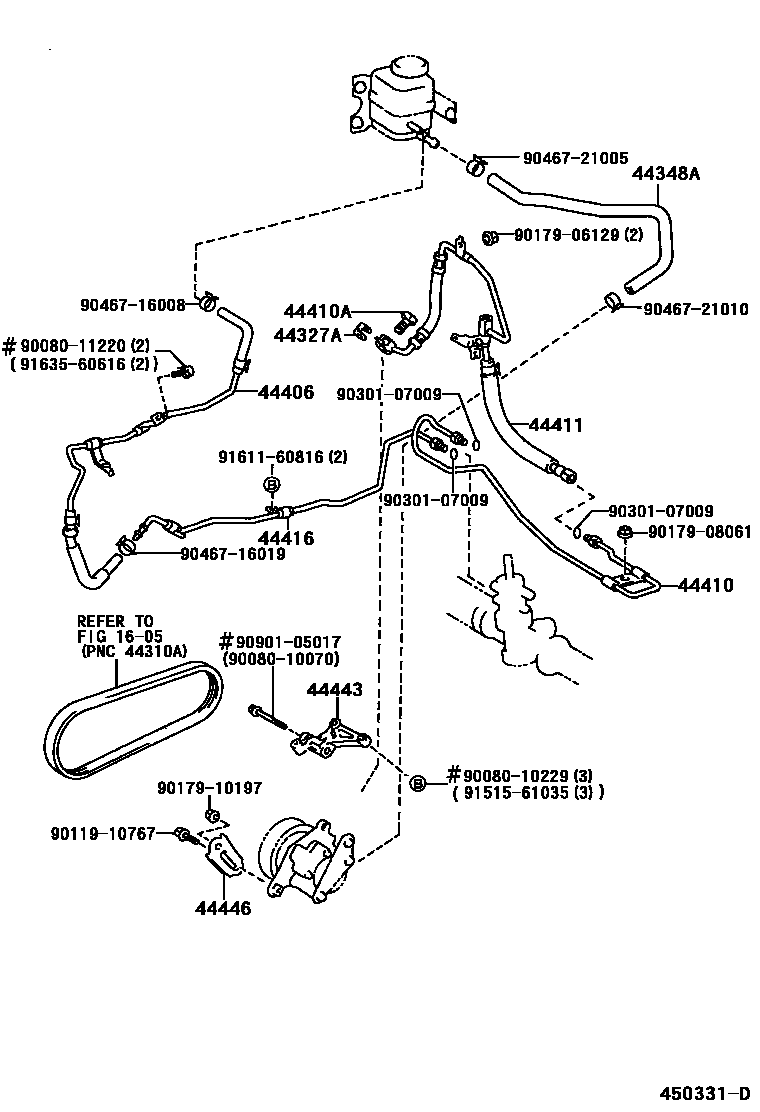

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCX10199503-199712

main44327-30030iMCX10199712-200002

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06140iMCX10199503-199608

main44348-06150iMCX10199608-200002

44406TUBE SUB-ASSY, RETURN

main44406-06030iMCX10199503-199608

main44406-07030iMCX10199608-200002

44410TUBE ASSY, PRESSURE FEED

main44410-07020iMCX10199503-200002

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCX10199608-200002

main90401-16008iMCX10199503-199608

44411HOSE, PRESSURE FEED

main44411-07020iMCX10199503-199608

main44411-07040iMCX10199608-200002

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06031iMCX10199503-200002

44443BRACKET, PUMP

main44443-33040iMCX10199503-199708

main44443-33041iMCX10199708

44446STRUT, ADJUSTING

main44446-AC010iMCX10199503

9008010070

main90080-10070

9008010229

main90080-10229

9008011220

main90080-11220

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9030107009

main90301-07009

9046716008

main90467-16008

9046716019

main90467-16019

9046721005

main90467-21005

9046721010

main90467-21010

9090105017

main90901-05017

9151561035

main91515-61035

9161160816

main91611-60816

9163560616

main91635-60616

26 parts on this diagram · 1 diagram in section
