DISC WHEEL & WHEEL CAP

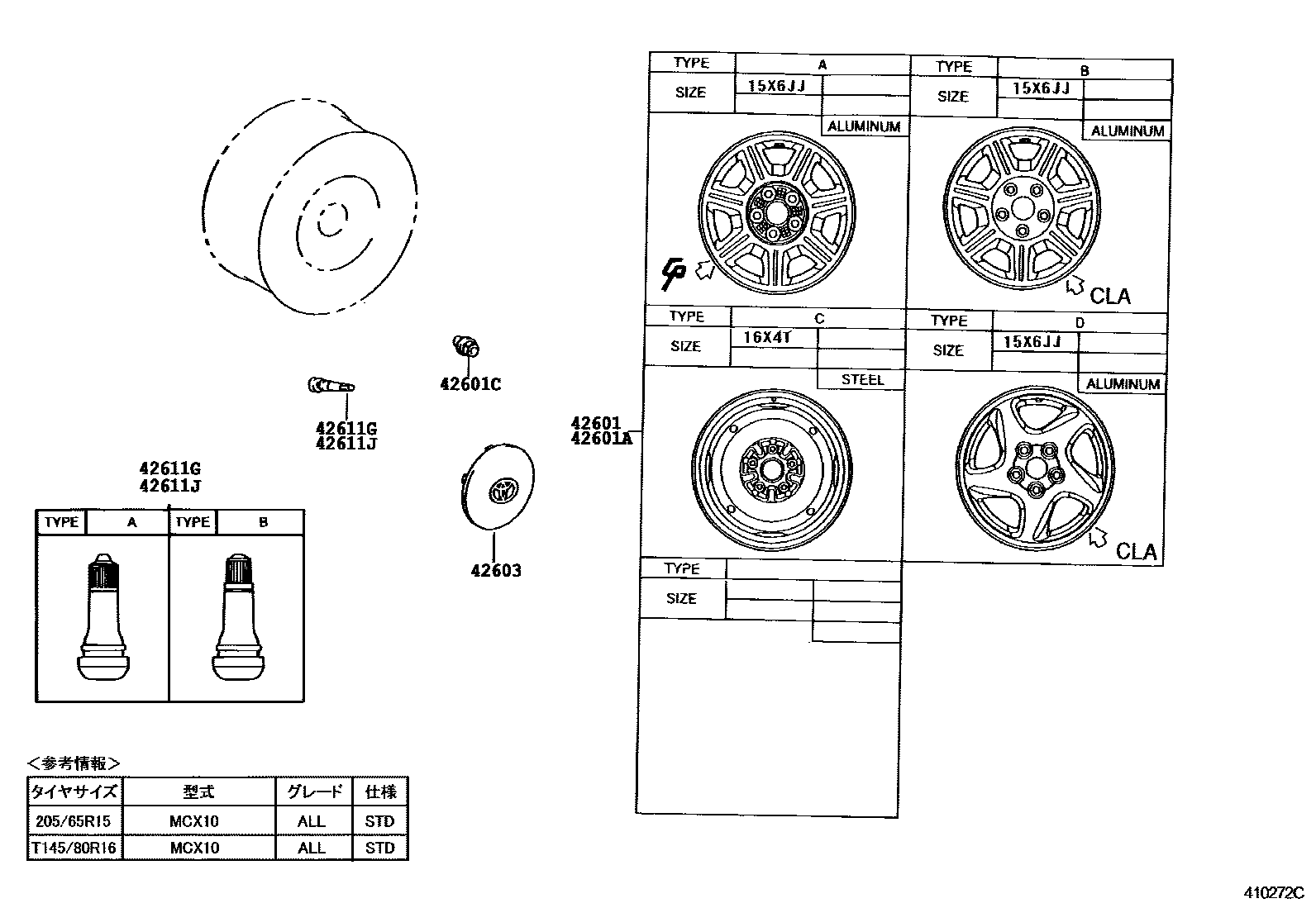

Parts diagram

42601WHEEL, DISC

main42611-07010×4i199503-199608

main42611-07020×4i199503-199608

main42611-AC020×4i199608

42601AWHEEL, DISC (FOR SPARE)

main42611-06080i199503

42601CNUT, HUB (FOR AXLE)

main90080-17036×20i199608

main90080-17097×20i199503-199608

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-AA020×4i199608

main42603-AC010×4i199503-199608

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4i199503

main90080-45006×4i199503

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i199503

main90080-45006i199503

6 parts on this diagram · 3 diagrams in section
