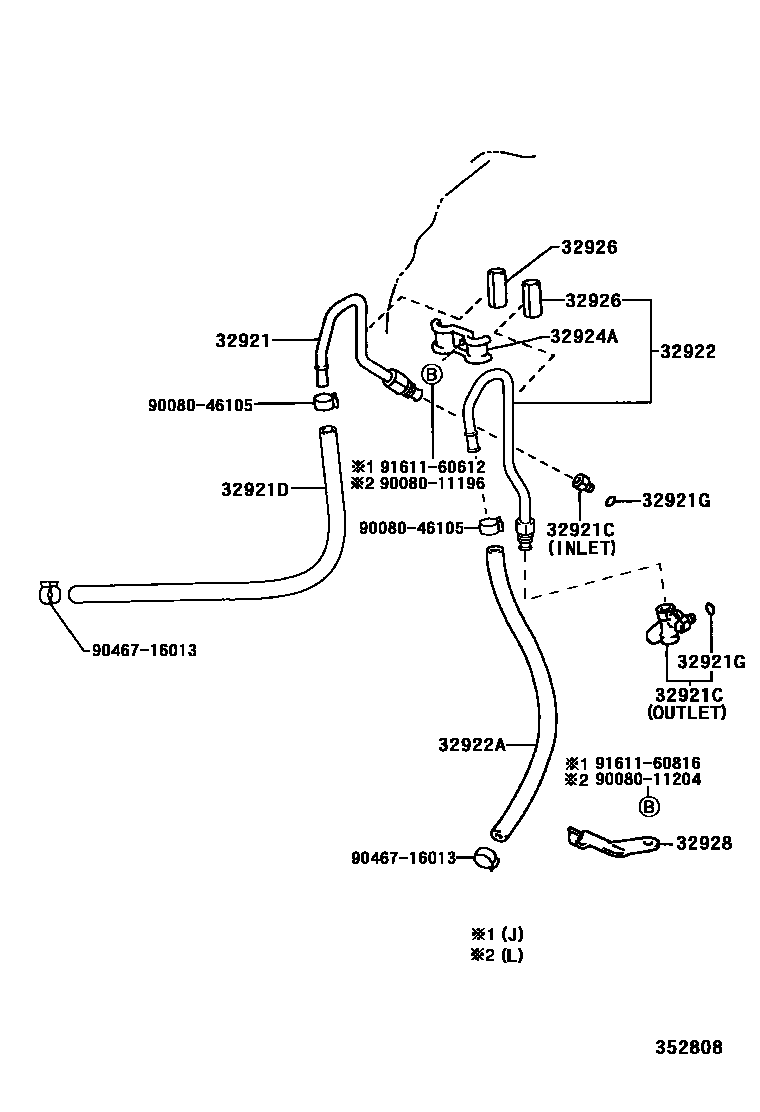

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-06060iMCX10199503

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iMCX10199608

main32901-32060iMCX10199503-199608

OUTLET

main90404-16031iMCX10199503

32921DHOSE(FOR OIL COOLER INLET)

main90080-44029iMCX10199503

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iMCX10199503

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-06020iMCX10199503-199608

main32922-06060iMCX10199608-200002

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-07010iMCX10199503

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12074iMCX10199503

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-04010×2iMCX10199503

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-41010iMCX10199503

9008011196

main90080-11196

9008011204

main90080-11204

9008046105

main90080-46105

9046716013

main90467-16013

9161160612

main91611-60612

9161160816

main91611-60816

15 parts on this diagram · 1 diagram in section
