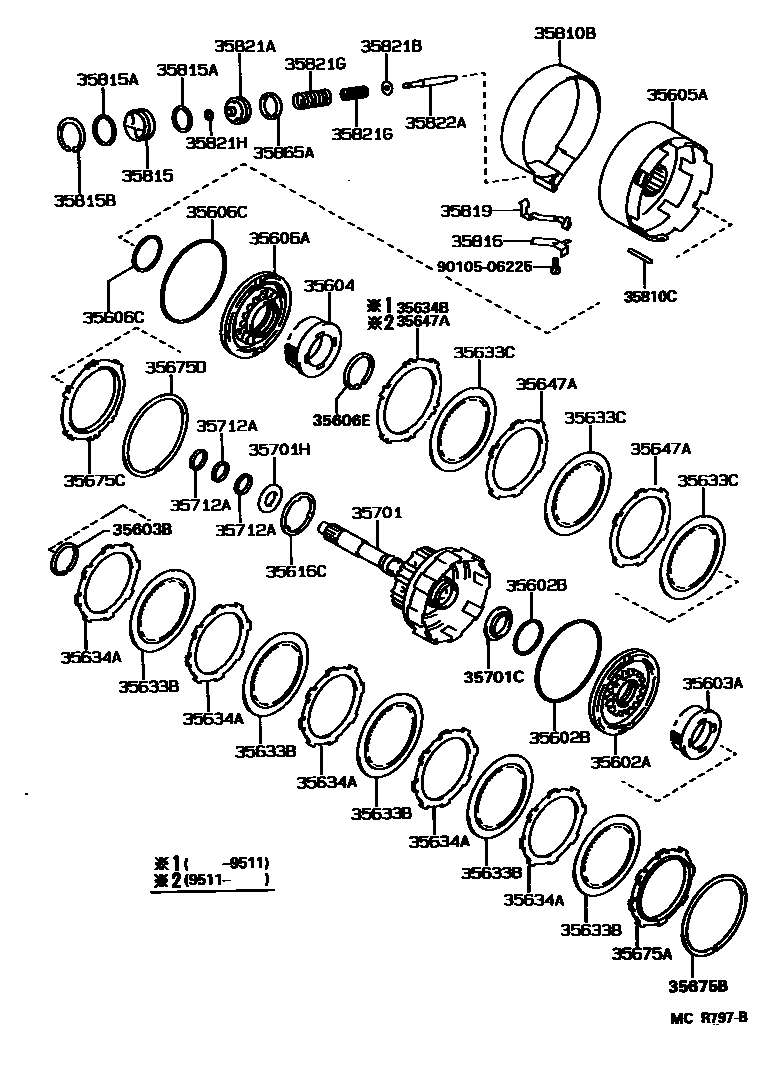

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-33030iMCX10199503

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-59004iMCX10199503

main90301-99016iMCX10199503

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-33010iMCX10199503

35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)

main90520-54002iMCX10199503

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-33010iMCX10199503

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-33020iMCX10199503-199511

main35605-33021iMCX10199511

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-32030iMCX10199503-199511

main35606-32031iMCX10199511

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-59004iMCX10199503

main90301-99016iMCX10199503

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-54002iMCX10199503

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-32030iMCX10199503

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-33010×5iMCX10199503-199706

main35633-33100×5iMCX10199706

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-33040×3iMCX10199503-199608

main35633-33050×3iMCX10199608

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-33010×4iMCX10199503-199706

main35634-33020iMCX10199503-199706

main35634-33060×5iMCX10199706

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-33040iMCX10199503-199511

35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-33020×2iMCX10199503-199511

35675AFLANGE, FORWARD CLUTCH

main35675-33010iMCX10199503

main35675-33020iMCX10199503

main35675-33050iMCX10199709

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iMCX10199503

35675CFLANGE, DIRECT CLUTCH

main35675-33030iMCX10199503

main35675-33040iMCX10199503

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90521-99032iMCX10199503

35701SHAFT SUB-ASSY, INPUT

main35701-33030iMCX10199503-199706

main35701-33050iMCX10199706

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-33010iMCX10199503

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-27003iMCX10199503

main90374-27004iMCX10199709

35712ARING, INPUT SHAFT OIL SEAL

main35712-32010×3iMCX10199503

35810BBAND ASSY, 2ND COAST BRAKE

main35810-33010iMCX10199503

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iMCX10199503

35815COVER, 2ND COAST BRAKE

main35815-33010iMCX10199503

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-43005×2iMCX10199503

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-55004iMCX10199503

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-32010iMCX10199503

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-33010iMCX10199503

35821APISTON, 2ND COAST BRAKE

main35821-33010iMCX10199503

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06014iMCX10199503

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-24026iMCX10199503-199706

main90501-25047iMCX10199503

main90501-29046iMCX10199706

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iMCX10199503

35822AROD, 2ND COAST BRAKE PISTON

main35822-32030iMCX10199503

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-33010iMCX10199503

9010506225

main90105-06225

37 parts on this diagram · 1 diagram in section
