TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

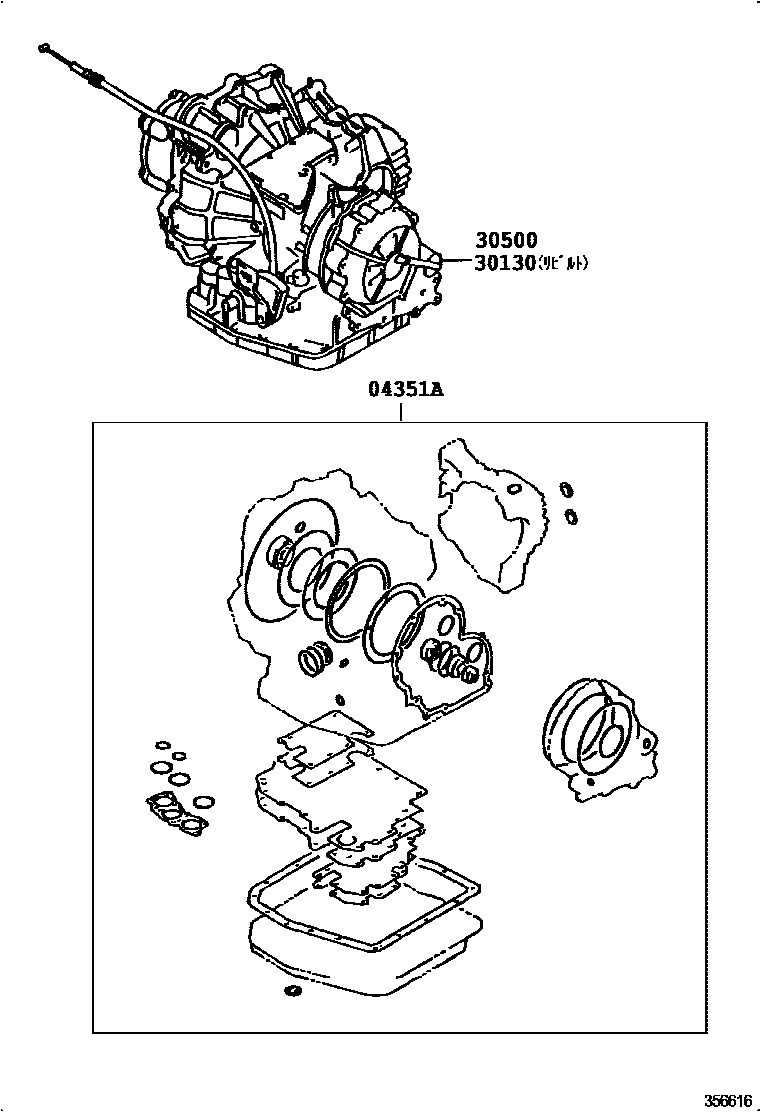

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33031i199503-199608

main04351-33032i199608

30130TRANSAXLE ASSY, REBUILT

main30130-33201i199503-199511

main30130-33202i199511-199608

main30130-33210i199608-199702

main30130-33211i199702-199709

main30130-33241i199709

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33201i199503-199511

main30500-33202i199511-199608

main30500-33210i199608-199702

main30500-33211i199702-199709

main30500-33241i199709

3 parts on this diagram · 1 diagram in section
