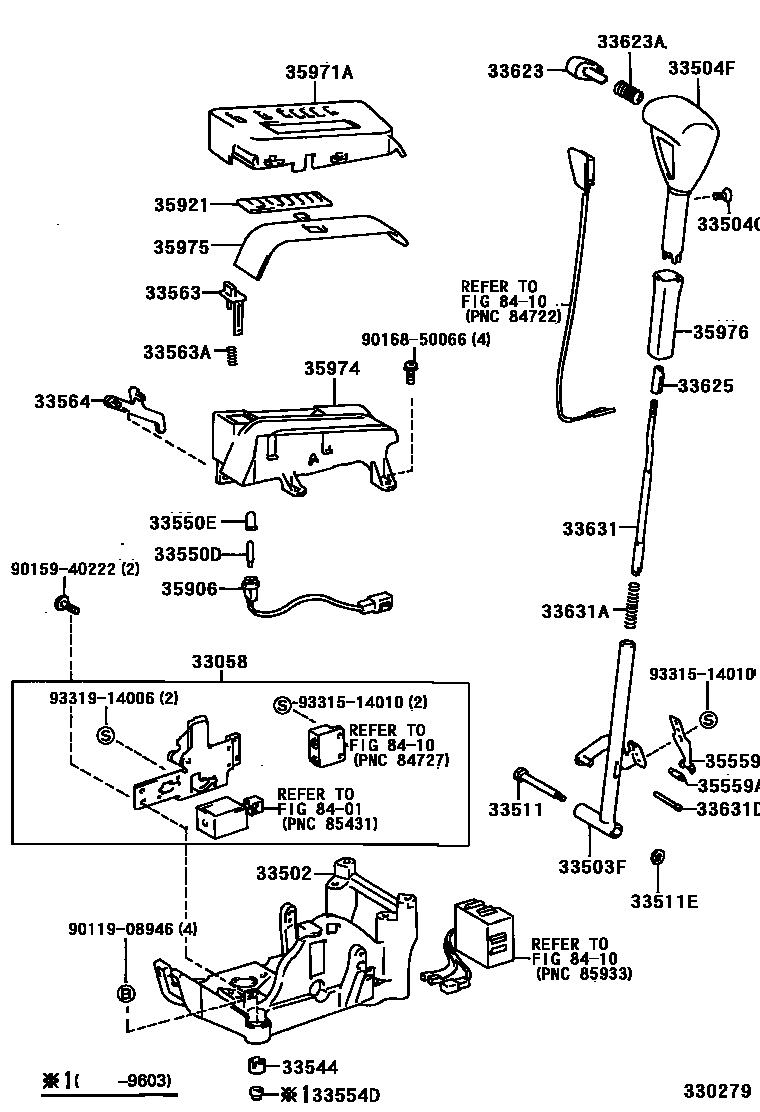

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
33550DBULB, POSITION INDICATOR LAMP
33554DGUIDE, SHIFT LOCK RELEASE BUTTON COVER
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33623BUTTON, SHIFT LEVER KNOB
DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
ADOBE,TRIM4#
ROSE STONE,TRIM4#
8401
8410
9011908946
main90119-08946
9015940222
main90159-40222
9016850066
main90168-50066
9331514010
main93315-14010
9331914006
main93319-14006
35 parts on this diagram · 2 diagrams in section
