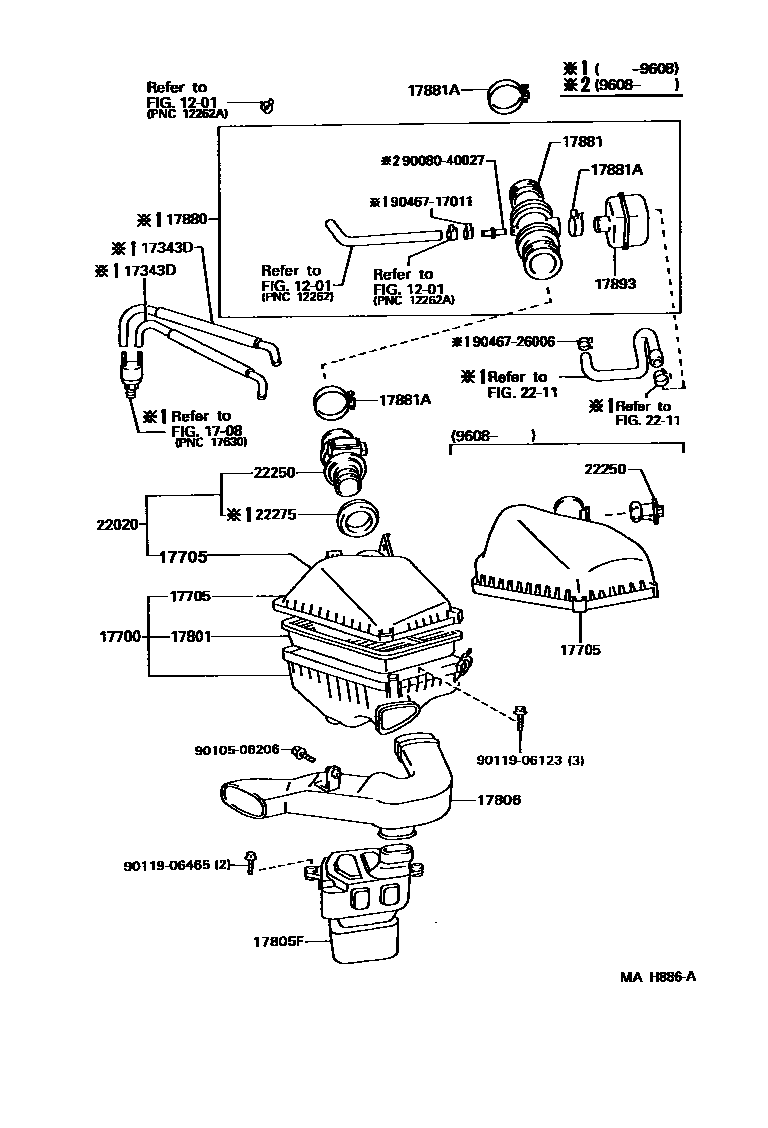

AIR CLEANER
1201
1708
17343DHOSE, AIR, NO.3
sub17343-20010
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
17806PIPE SUB-ASSY, AIR CLEANER, NO.2
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
17893RESONATOR, INTAKE AIR
2211
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
9008040027
main90080-40027
9010506206
main90105-06206
9011906123
main90119-06123
9011906465
main90119-06465
9046717011
main90467-17011
9046726006
main90467-26006
22 parts on this diagram · 2 diagrams in section
