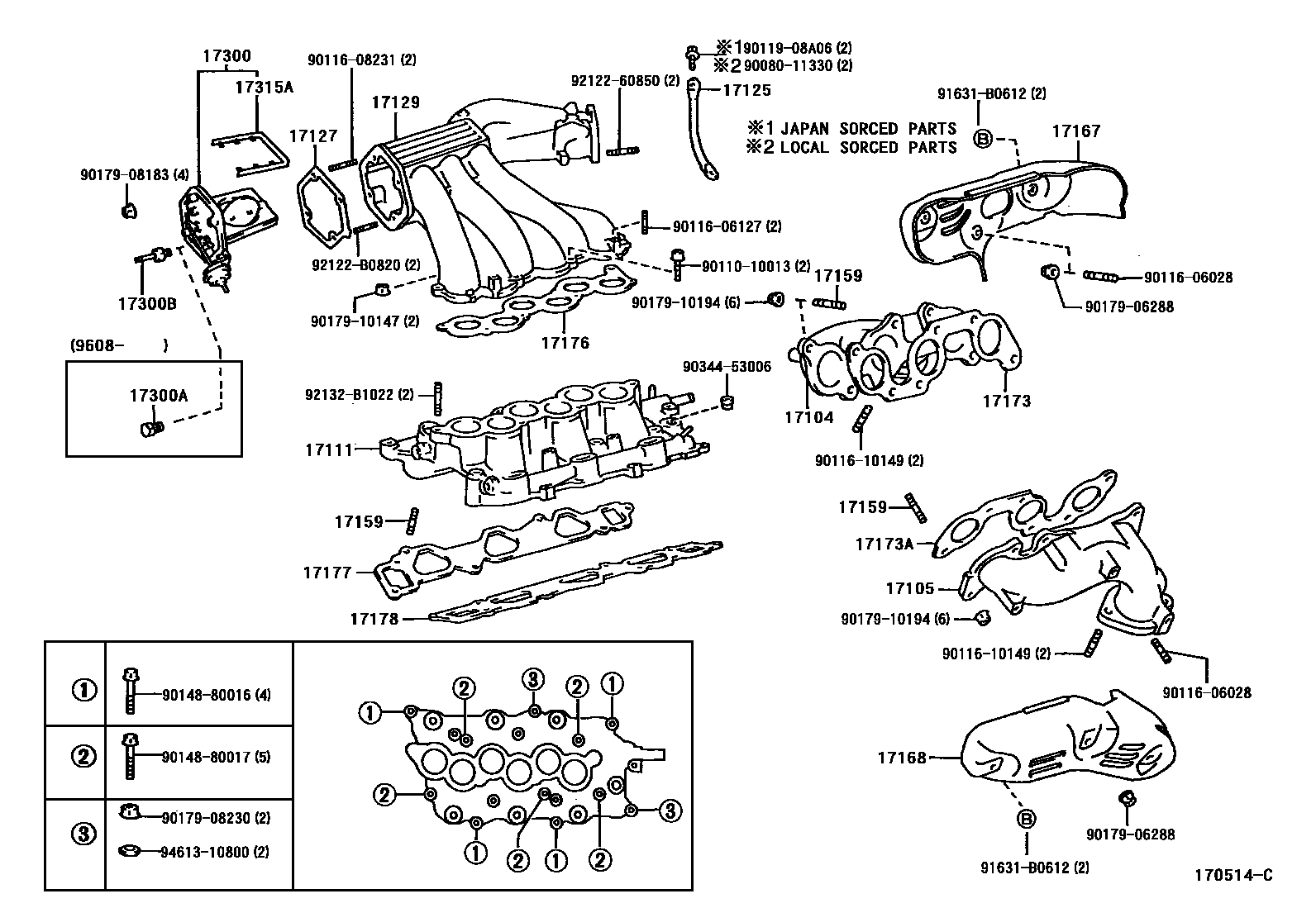

MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17300APLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
17300BUNION(FOR INTAKE AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
9008011330
main90080-11330
9011010013
main90110-10013
9011606028
main90116-06028
9011606127
main90116-06127
9011608231
main90116-08231
9011610149
main90116-10149
9011908A06
main90119-08A06
9014880016
main90148-80016
9014880017
main90148-80017
9017906288
main90179-06288
9017908183
main90179-08183
9017908230
main90179-08230
9017910147
main90179-10147
9017910194
main90179-10194
9034453006
main90344-53006
91631B0612
main91631-B0612
9212260850
main92122-60850
92122B0820
main92122-B0820
92132B1022
main92132-B1022
9461310800
main94613-10800
38 parts on this diagram · 1 diagram in section
