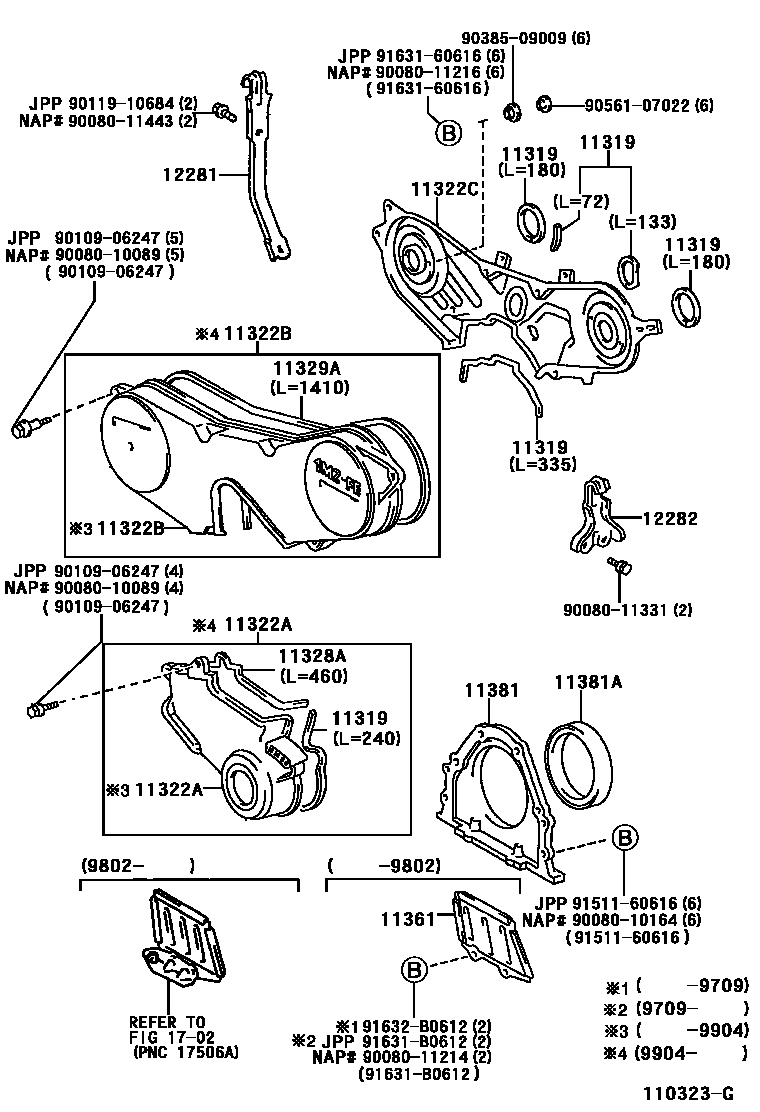

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010i1MZFE..MCX10199503

11322ACOVER, TIMING BELT, NO.1

main11302-20040i1MZFE..MCX10199904

main11321-20900i1MZFE..MCX10199503-199904

11322BCOVER, TIMING BELT, NO.2

main11303-20040i1MZFE..MCX10199904

main11322-20030i1MZFE..MCX10199710-199904

main11322-20900i1MZFE..MCX10199503-199607

main11322-20901i1MZFE..MCX10199607-199710

11322CCOVER, TIMING BELT, NO.3

main11304-20900i1MZFE..MCX10199503-199608

main11304-20902i1MZFE..MCX10199608-199710

main11323-20030i1MZFE..MCX10199710

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i1MZFE..MCX10199503

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i1MZFE..MCX10199503

11361COVER, FLYWHEEL HOUSING UNDER

main11361-0A010i1MZFE..MCX10199503-199802

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0A010i1MZFE..MCX10199503

11381ASEAL, ENGINE REAR OIL

main90080-31033i1MZFE..MCX10199503-199803

sub90080-31053

main90080-31053i1MZFE..MCX10199803

12281HANGER, ENGINE, NO.1

main12281-0A010i1MZFE..MCX10199503-199608

sub12281-20020

main12281-0A020i1MZFE..MCX10199608-199704

sub12281-0A021

main12281-0A021i1MZFE..MCX10199704

12282HANGER, ENGINE, NO.2

main12282-20020i1MZFE..MCX10199503

1702

9008010089

main90080-10089

9008010164

main90080-10164

9008011214

main90080-11214

9008011216

main90080-11216

9008011331

main90080-11331

9008011443

main90080-11443

9010906247

main90109-06247

9011910684

main90119-10684

9038509009

main90385-09009

9056107022

main90561-07022

9151160616

main91511-60616

9163160616

main91631-60616

91631B0612

main91631-B0612

91632B0612

main91632-B0612

26 parts on this diagram · 1 diagram in section
