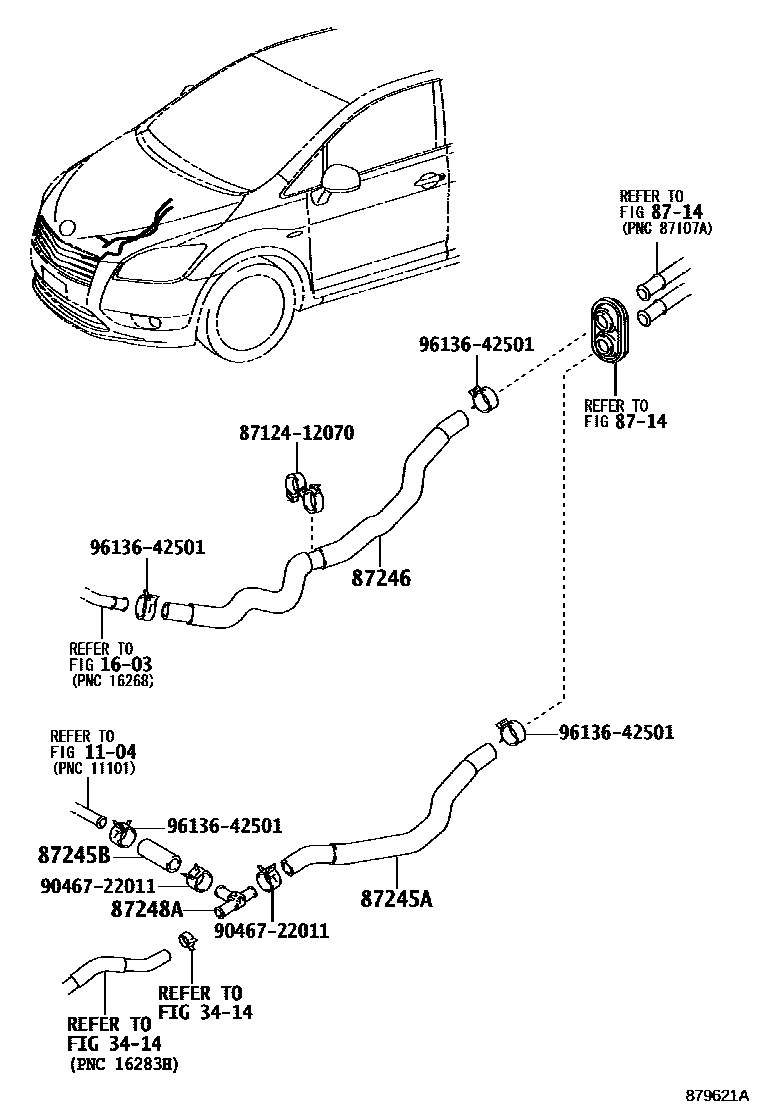

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-12E60iGGA10201102

87245AHOSE, HEATER WATER, INLET A

main87245-12D10iANA1#..240,240G,ARIAL200709-201102

main87245-12D11iANA1#201208

87245BHOSE, HEATER WATER, INLET B

main87245-12D20iANA1#201102

87246HOSE, HEATER WATER, OUTLET

main87245-12D00iANA1#201102

main87245-12E70iGGA10201102

87248APIPE, HEATER WATER INLET, A

main87248-20380iANA1#..240,240G,ARIAL200709-201102

8712412070CLAMP, HEATER

main87124-12070

9046722011

main90467-22011

9613642501

main96136-42501

12 parts on this diagram · 2 diagrams in section
