HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1��

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12040iANA1#,GGA10..CBU200709-201102

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12330iANA10,GGA10201102

main87050-12340iANA10; ANA15201102

main87050-72010iANA10,GGA10..CBU200709-201102

main87050-72020iANA10..CBU; ANA15..CBU200709-201102

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42081iANA1#,GGA10201102

main87103-72010iANA1#,GGA10..CBU200709-201102

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iANA1#,GGA10..CBU200709-201102

main87106-42090iANA1#,GGA10..CBU200709-201102

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100iANA1#,GGA10..CBU200709-201102

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42120iANA1#,GGA10..CBU200709-201102

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iANA1#,GGA10201102

87130DBLOWER ASSY

main87130-12511iANA10,GGA10201102

main87130-12521iANA10; ANA15201102

main87130-72010iANA10,GGA10..CBU200709-201102

main87130-72020iANA10..CBU; ANA15..CBU200709-201102

87139CFILTER, CLEAN AIR

main87139-30040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main87139-50060iANA1#,GGA10201102-201204

main87139-50100iANA1#,GGA10201205

87710GQUICK HEATER ASSY

main87710-12010iANA10..CBU; ANA15..CBU200709-201102

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-72010iANA1#,GGA10..CBU200709-200809

main88501-72020iANA1#,GGA10201102

88515VALVE, COOLER EXPANSION

main88515-12100iANA1#,GGA10201102

main88515-26070iANA1#,GGA10..CBU200902-201102

main88515-42090iANA1#,GGA10..CBU200709-200902

88539JHOSE, DRAIN COOLER

main88539-12190iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main88539-12210iANA1#,GGA10201306

88548BCASE, AIR FILTER

main88548-42010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

88625THERMISTOR, COOLER, NO.1

main88625-26090iANA1#,GGA10..CBU200709-201102

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-72020supersedes 88650-72010iANA15200709-200912

main88650-72030iGGA10200709-201102

main88650-72040supersedes 88650-72011iANA15..240,240G,ARIAL200912-201102

8712842010GROMMET, HEATER

main87128-42010

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

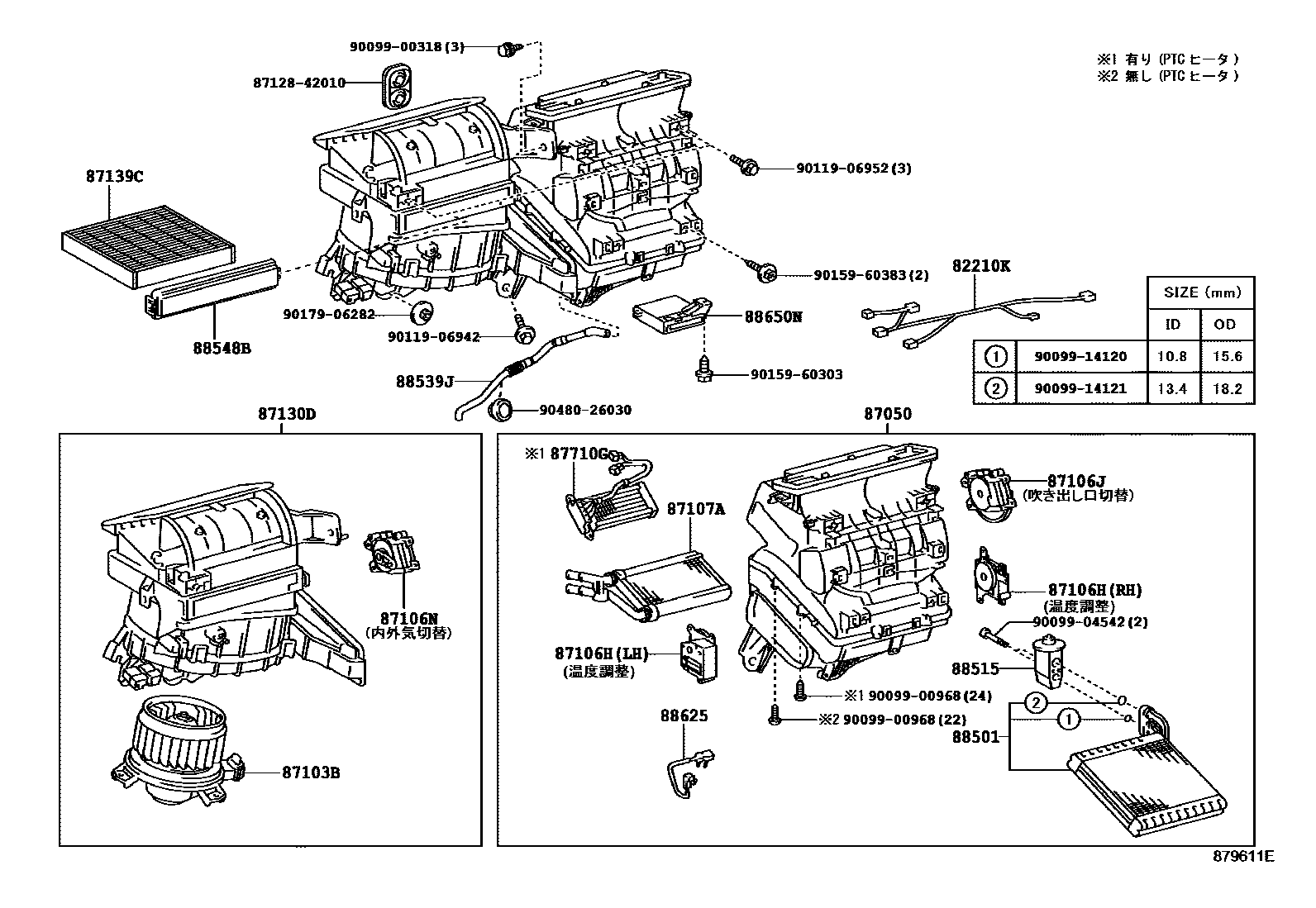

28 parts on this diagram · 2 diagrams in section
