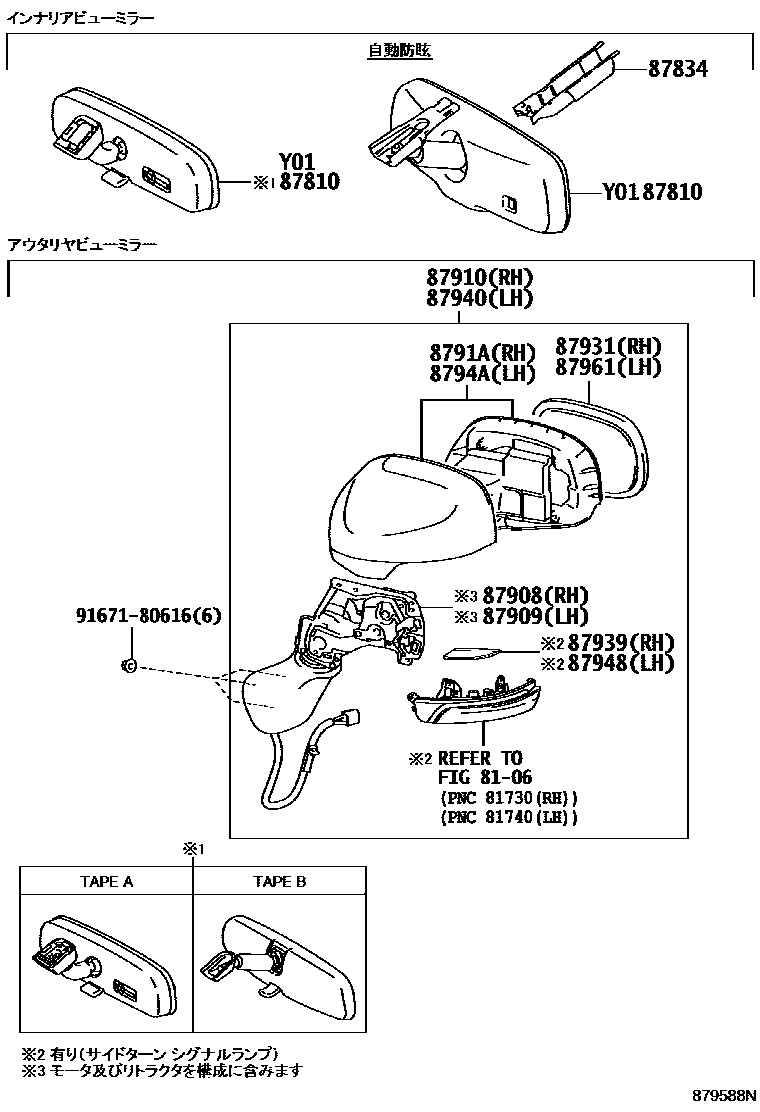

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-02090iANA1#,GGA10..(240G,350G)..CBU200709-200810

main87810-0F050iGGA10201102

main87810-52041iANA1#..240F200709

main87810-AA011iANA1#201111

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-33010iGGA10201102

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-72010-B0iANA1#..240200709-200902

DK.GRAY M.M.,1E9

main87908-72010-B1iANA1#..240200709-200902

SILVER ME.,1G7

main87908-72010-C0iANA1#..240200709-200902

BLACK MC.,209

main87908-72010-H0iANA1#..240200709-200902

FROSTY GREEN MC.,781

main87908-72010-J0iANA1#..240200709-200902

DK.BLUE MC.,8S6

main87908-72020-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-B0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72020-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87908-72030-A0supersedes 87908-72040-A0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87908-72030-B0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200902-201102

main87908-72030-B1supersedes 87908-72040-B2iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87908-72030-B2supersedes 87908-72040-B1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87908-72030-C0iANA1#..240F200902

BLACK MC.,209

main87908-72030-C1supersedes 87908-72040-C1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87908-72030-D0supersedes 87908-72040-D0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200902-201102

main87908-72030-D1supersedes 87908-72040-D1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87908-72030-H0iANA1#..240F200902

FROSTY GREEN MC.,781

main87908-72030-J0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200902-201102

main87908-72030-J1iANA1#..240F200902

LT.BLUE M.M.,8S7

main87908-72040-B0iANA1#..240200902-201102

SILVER ME.,1G7

main87908-72040-C0iANA1#..240200902-201102

BLACK MC.,209

main87908-72040-H0iANA1#..240200902-201102

FROSTY GREEN MC.,781

main87908-72040-J0iANA1#..240200902-201102

DK.BLUE MC.,8S6

main87908-72040-J1iANA1#..240200902-201102

LT.BLUE M.M.,8S7

main87908-72040-A0iANA1#..ARIAL200912-201102

main87908-72040-B1iANA1#..240; ANA1#..ARIAL201102

main87908-72040-B2iANA1#..240; ANA1#..ARIAL201102

main87908-72040-C1iANA1#..240; ANA1#..ARIAL201102

main87908-72040-D0iANA1#..240; ANA1#..ARIAL201102

main87908-72040-D1iANA1#..ARIAL200912-201102

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-72010-B0iANA1#..240200709-200902

DK.GRAY M.M.,1E9

main87909-72010-B1iANA1#..240200709-200902

SILVER ME.,1G7

main87909-72010-C0iANA1#..240200709-200902

BLACK MC.,209

main87909-72010-H0iANA1#..240200709-200902

FROSTY GREEN MC.,781

main87909-72010-J0iANA1#..240200709-200902

DK.BLUE MC.,8S6

main87909-72020-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-B0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72020-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200902

main87909-72030-A0supersedes 87909-72040-A0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87909-72030-B0iANA1#..240F200902

SILVER ME.,1G7

main87909-72030-B1supersedes 87909-72040-B1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87909-72030-B2supersedes 87909-72040-B2iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87909-72030-C0iANA1#..240F200902

BLACK MC.,209

main87909-72030-C1supersedes 87909-72040-C1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87909-72030-D0supersedes 87909-72040-D0iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200902-201102

main87909-72030-D1supersedes 87909-72040-D1iANA1#..240F200902

RED M.M.,3R3

main87909-72030-H0iANA1#..240F200902

FROSTY GREEN MC.,781

main87909-72030-J0iANA1#..240F200902

DK.BLUE MC.,8S6

main87909-72030-J1iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200902-201102

main87909-72040-B0iANA1#..240200902-201102

SILVER ME.,1G7

main87909-72040-C0iANA1#..240200902-201102

BLACK MC.,209

main87909-72040-H0iANA1#..240200902-201102

FROSTY GREEN MC.,781

main87909-72040-J0iANA1#..240200902-201102

DK.BLUE MC.,8S6

main87909-72040-J1iANA1#..240200902-201102

LT.BLUE M.M.,8S7

main87909-72040-A0iANA1#..240; ANA1#..ARIAL201102

main87909-72040-B1iANA1#..240; ANA1#..ARIAL201102

main87909-72040-B2iANA1#..240; ANA1#..ARIAL201102

main87909-72040-C1iANA1#..240; ANA1#..ARIAL201102

main87909-72040-D0iANA1#..240; ANA1#..ARIAL201102

main87909-72040-D1iANA1#..240; ANA1#..ARIAL201102

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-72020-A0supersedes 87910-72040-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-B0supersedes 87910-72010-B0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-B1supersedes 87910-72010-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-C0supersedes 87910-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-D0supersedes 87910-72040-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-D1supersedes 87910-72040-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-H0supersedes 87910-72010-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72020-J0supersedes 87910-72010-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87910-72021-A0supersedes 87910-72011-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-B1supersedes 87910-72011-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-C0supersedes 87910-72011-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-D0supersedes 87910-72011-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-D1supersedes 87910-72011-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-H0supersedes 87910-72011-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72021-J0supersedes 87910-72011-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87910-72030-A0iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72030-B1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72030-B2supersedes 87910-72040-B1iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72030-B3supersedes 87910-72040-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72030-C0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72030-C1supersedes 87910-72040-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72030-D0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72030-D1supersedes 87910-72040-D1iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72030-H0supersedes 87910-72040-H0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72030-J0supersedes 87910-72040-J0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72030-J1supersedes 87910-72040-J1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87910-72040-A0iANA1#..240200902-201102

WHITE PEARL CS.,070

main87910-72040-B0iANA1#..240200902-201102

SILVER ME.,1G7 ,209

main87910-72040-C0iANA1#..240200902-201102

BLACK MC.,209 ,3R0

main87910-72040-D0iANA1#..240200902-201102

BLACKISH RED MC.,3R0 ,3R3

main87910-72040-B1iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72040-B2iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72040-C1iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87910-72040-D1iANA1#..ARIAL200912-201102

main87910-72040-H0iANA1#..ARIAL200912-201102

main87910-72040-J0iANA1#..ARIAL200912-201102

main87910-72040-J1iANA1#..ARIAL200912-201102

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30A50-A3iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-B0iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-B4iANA1#,GGA10..CBU200902-201102

SILVER ME.,1G7

main8791A-30A50-B5iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-C0iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-C1iANA1#,GGA10..CBU200902-201102

BLACK MC.,209

main8791A-30A50-D0iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-D1iANA1#,GGA10; ANA1#..ARIAL201102

main8791A-30A50-H1iANA1#,GGA10..CBU200902-201102

FROSTY GREEN MC.,781

main8791A-30A50-J0iANA1#,GGA10..CBU200902-201102

DK.BLUE MC.,8S6

main8791A-30A50-J2iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

main8791A-72020-A0iANA1#,GGA10..CBU200807-200902

WHITE PEARL CS.,070

main8791A-72020-B0iANA1#,GGA10..CBU200709-200807

DK.GRAY M.M.,1E9

main8791A-72020-B1iANA1#,GGA10..CBU200709-200807

SILVER ME.,1G7

main8791A-72020-C0iANA1#,GGA10..CBU200807-200902

BLACK MC.,209

main8791A-72020-D0iANA1#,GGA10..CBU200709-200807

BLACKISH RED MC.,3R0

main8791A-72020-D1iANA1#,GGA10..CBU200807-200902

RED M.M.,3R3

main8791A-72020-H0iANA1#,GGA10..CBU200709-200807

FROSTY GREEN MC.,781

main8791A-72020-J0iANA1#,GGA10..CBU200807-200902

DK.BLUE MC.,8S6

87931OUTER MIRROR, RH

main87931-72020supersedes 87931-72010iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240200709-201102

main87931-72010iANA1#..240; ANA1#..ARIAL201102

87939COVER, OUTER MIRROR HOLE, RH

main87939-72030-A0iANA1#,GGA10..CBU200902-201102

WHITE PEARL CS.,070

main87939-72030-B0iANA1#,GGA10..CBU200902-201102

SILVER ME.,1G7

main87939-72030-B1iANA1#,GGA10; ANA1#..ARIAL201102

main87939-72030-B2iANA1#,GGA10; ANA1#..ARIAL201102

main87939-72030-C0iANA1#,GGA10..CBU200902-201102

BLACK MC.,209

main87939-72030-C1iANA1#,GGA10; ANA1#..ARIAL201102

main87939-72030-D0iANA1#,GGA10..CBU200902-201102

BLACKISH RED MC.,3R0

main87939-72030-D1iANA1#,GGA10..CBU200902-201102

RED M.M.,3R3

main87939-72030-H0iANA1#,GGA10..CBU200902-201102

FROSTY GREEN MC.,781

main87939-72030-J0iANA1#,GGA10..CBU200902-201102

DK.BLUE MC.,8S6

main87939-72030-J1iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-72020-A0supersedes 87940-72040-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-B0supersedes 87940-72010-B0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-B1supersedes 87940-72010-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-C0supersedes 87940-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-D0supersedes 87940-72040-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-D1supersedes 87940-72040-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-H0supersedes 87940-72010-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72020-J0supersedes 87940-72010-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200709-200806

main87940-72021-A0supersedes 87940-72011-A0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-B1supersedes 87940-72011-B1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-C0supersedes 87940-72011-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-D0supersedes 87940-72011-D0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-D1supersedes 87940-72011-D1iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-H0supersedes 87940-72011-H0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72021-J0supersedes 87940-72011-J0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240200807-200902

main87940-72030-A0iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72030-B1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72030-B2supersedes 87940-72040-B1iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72030-B3supersedes 87940-72040-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72030-C0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72030-C1supersedes 87940-72040-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72030-D0iANA1#,GGA10..(240G,350G,ARIAL)..CBU; ANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72030-D1supersedes 87940-72040-D1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72030-H0supersedes 87940-72040-H0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72030-J0supersedes 87940-72040-J0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72030-J1supersedes 87940-72040-J1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#..240200902-201102

main87940-72040-A0iANA1#..240200902-201102

WHITE PEARL CS.,070

main87940-72040-B0iANA1#..240200902-201102

SILVER ME.,1G7 ,209

main87940-72040-C0iANA1#..240200902-201102

BLACK MC.,209 ,3R0

main87940-72040-D0iANA1#..240200902-201102

BLACKISH RED MC.,3R0 ,3R3

main87940-72040-B1iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72040-B2iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72040-C1iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72040-D1iANA1#..240; ANA1#..ARIAL..CBU201102-201310

main87940-72040-H0iANA1#..ARIAL200912-201102

main87940-72040-J0iANA1#..ARIAL200912-201102

main87940-72040-J1iANA1#..ARIAL200912-201102

87948COVER, OUTER MIRROR HOLE, LH

main87948-72030-A0iANA1#,GGA10..CBU200902-201102

WHITE PEARL CS.,070

main87948-72030-B0iANA1#,GGA10..CBU200902-201102

SILVER ME.,1G7

main87948-72030-B1iANA1#,GGA10; ANA1#..ARIAL201102

main87948-72030-B2iANA1#,GGA10; ANA1#..ARIAL201102

main87948-72030-C0iANA1#,GGA10..CBU200902-201102

BLACK MC.,209

main87948-72030-C1iANA1#,GGA10; ANA1#..ARIAL201102

main87948-72030-D0iANA1#,GGA10; ANA1#..ARIAL201102

main87948-72030-D1iANA1#,GGA10; ANA1#..ARIAL201102

main87948-72030-H0iANA1#,GGA10..CBU200902-201102

FROSTY GREEN MC.,781

main87948-72030-J0iANA1#,GGA10..CBU200902-201102

DK.BLUE MC.,8S6

main87948-72030-J1iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30B00-A3iANA1#,GGA10..CBU200902-201102

WHITE PEARL CS.,070

main8794A-30B00-B0iANA1#,GGA10; ANA1#..ARIAL201102

main8794A-30B00-B4iANA1#,GGA10..CBU200902-201102

SILVER ME.,1G7

main8794A-30B00-B5iANA1#,GGA10; ANA1#..ARIAL201102

main8794A-30B00-C0iANA1#,GGA10; ANA1#..ARIAL201102

main8794A-30B00-C1iANA1#,GGA10..CBU200902-201102

BLACK MC.,209

main8794A-30B00-D0iANA1#,GGA10; ANA1#..ARIAL201102

main8794A-30B00-D1iANA1#,GGA10; ANA1#..ARIAL201102

main8794A-30B00-H1iANA1#,GGA10..CBU200902-201102

FROSTY GREEN MC.,781

main8794A-30B00-J0iANA1#,GGA10..CBU200902-201102

DK.BLUE MC.,8S6

main8794A-30B00-J2iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

main8794A-72020-A0iANA1#,GGA10..CBU200807-200902

WHITE PEARL CS.,070

main8794A-72020-B0iANA1#,GGA10..CBU200709-200807

DK.GRAY M.M.,1E9

main8794A-72020-B1iANA1#,GGA10..CBU200807-200902

SILVER ME.,1G7

main8794A-72020-C0iANA1#,GGA10..CBU200807-200902

BLACK MC.,209

main8794A-72020-D0iANA1#,GGA10..CBU200807-200902

BLACKISH RED MC.,3R0

main8794A-72020-D1iANA1#,GGA10..CBU200709-200807

RED M.M.,3R3

main8794A-72020-H0iANA1#,GGA10..CBU200709-200807

FROSTY GREEN MC.,781

main8794A-72020-J0iANA1#,GGA10..CBU200807-200902

DK.BLUE MC.,8S6

87961MIRROR OUTER, LH

main87961-72020supersedes 87961-72010iANA1#,GGA10..240G,350G,ARIAL; ANA1#..240; ANA1#..ARIAL201102

main87961-72010iANA1#..ARIAL200912-201102

9167180616

main91671-80616

14 parts on this diagram · 1 diagram in section
