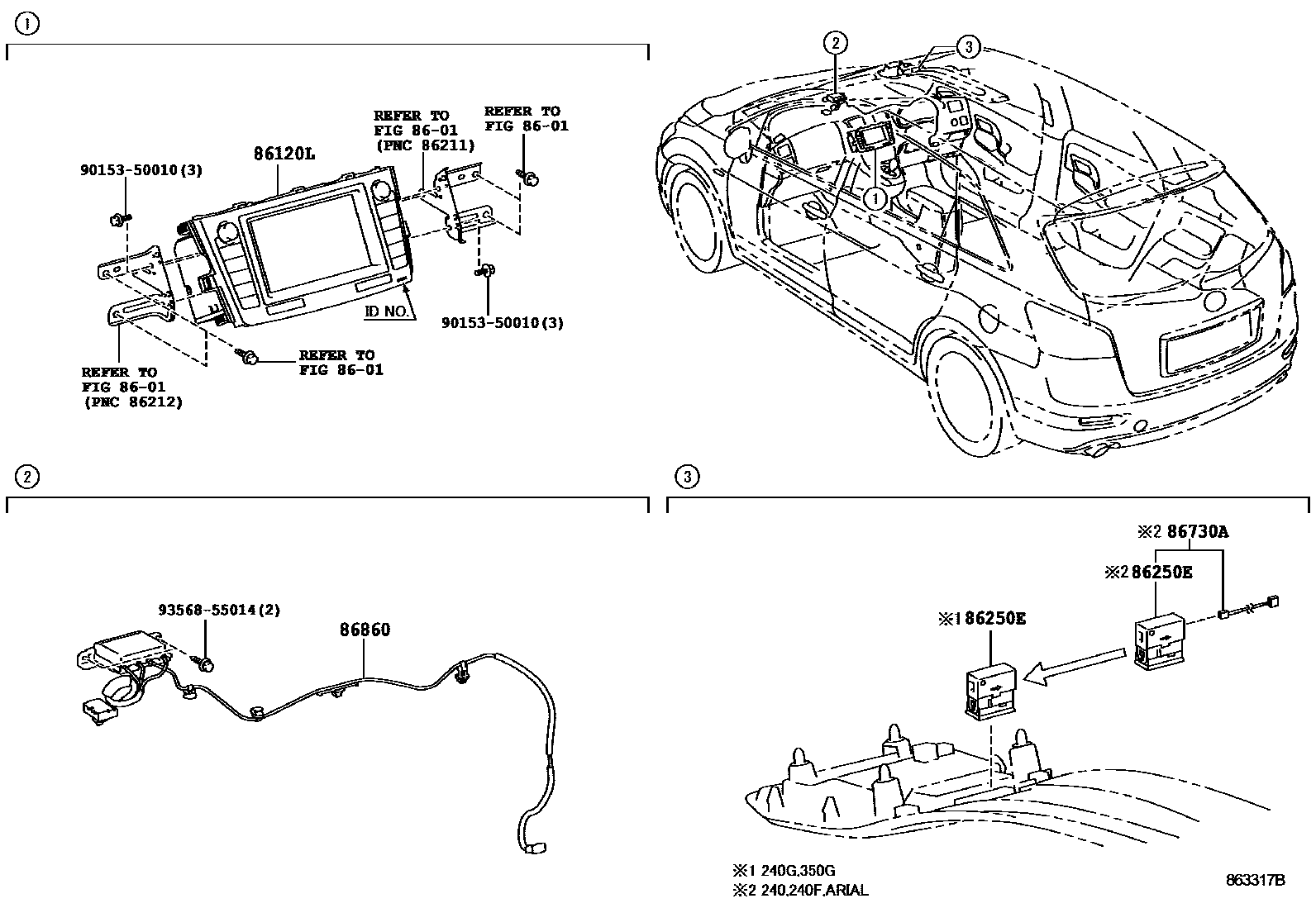

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-72010iANA1#,GGA10..CBU200709-200803

main86100-72011iANA1#,GGA10..CBU200804-200807

main86100-72012iANA1#,GGA10200808-200903

main86100-72013iANA1#,GGA10200904-200908

main86100-72014iANA1#,GGA10200909-201004

main86100-72015iANA1#,GGA10201004-201008

main86100-72030iANA1#,GGA10201008-201009

main86100-72031iANA1#,GGA10..240,240G,350G,ARIAL201009-201102

main86100-72032iANA1#,GGA10201104-201108

main86100-72033iANA1#,GGA10201109-201205

main86100-72034iANA1#,GGA10201206-201208

main86100-72035iANA1#,GGA10201209-201303

main86100-72036iANA1#,GGA10201304-201308

main86100-72037iANA1#,GGA10201309

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iANA1#..(240,240F,ARIAL)..CBU201008-201102

main86250-52030iANA1#,GGA10..(240G,350G)..CBU201008-201102

86730AMICROPHONE ASSY, TELEPHONE

main86730-42010iANA1#..(240,240F,ARIAL)..CBU200709-201008

86860ANTENNA ASSY, NAVIGATION

main86860-72010iANA1#,GGA10200709-201008

main86870-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

main86870-72040iANA1#,GGA10200709-201008

9015350010

main90153-50010

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
