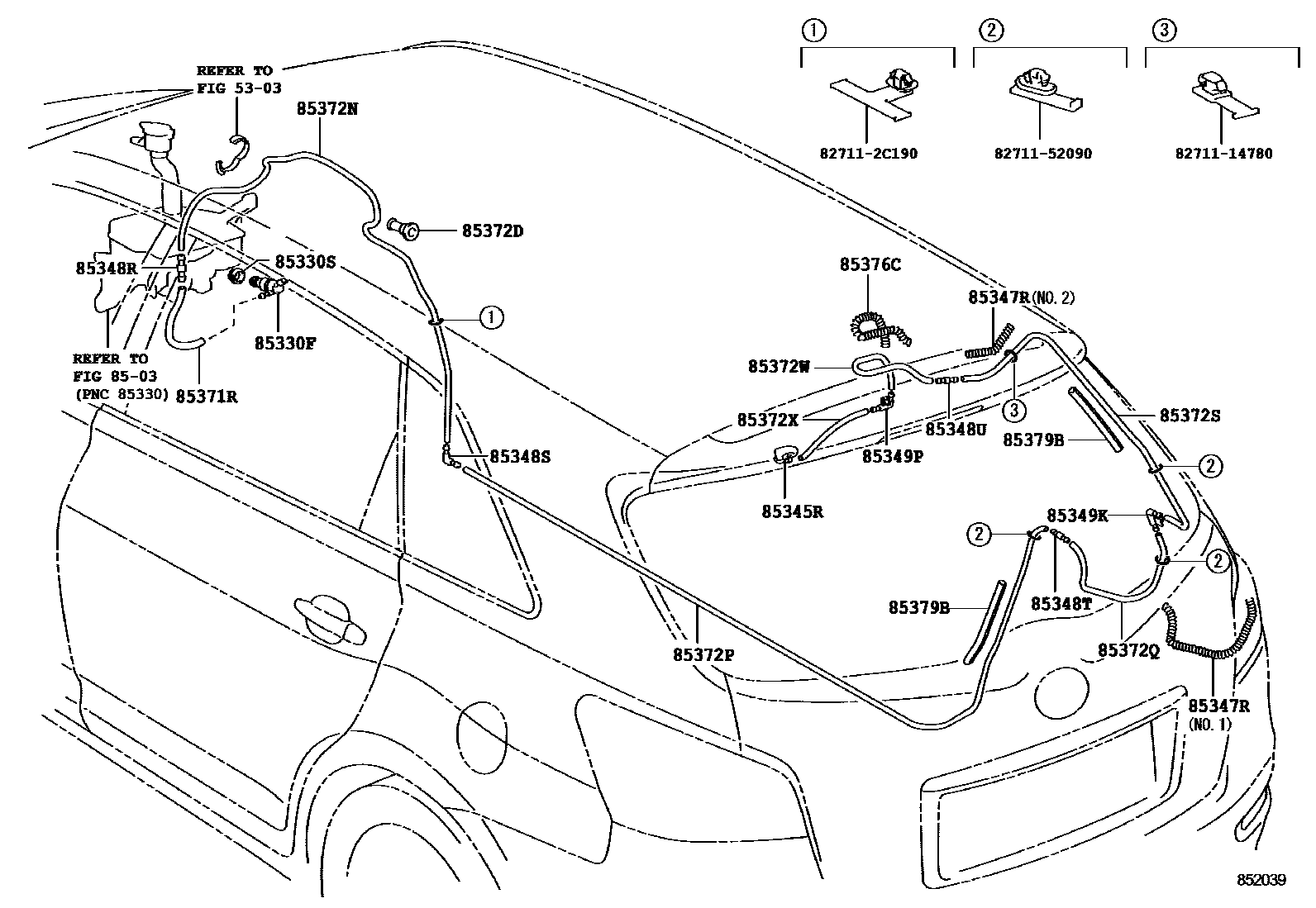

REAR WASHER

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iANA1#,GGA10..240,240G,350G,ARIAL201102

85330SBUSH, REAR WASHER JAR

main85336-60300iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85345RNOZZLE, REAR WASHER

main85391-72010iANA1#..240F200709

85347RSPRING

main85389-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main85389-72020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85349KJOINT, REAR WASHER ELBOW, NO.2

main85375-16160iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85349PJOINT, REAR WASHER ELBOW, NO.3

main85375-16160iANA1#,GGA10..240,240G,350G,ARIAL201102

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372DGROMMET, REAR WASHER HOSE

main85379-12850iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90099-62085iANA1#,GGA10201109

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90099-62084iANA1#,GGA10201109

85376CSPRING, WASHER HOSE

main85389-72030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85379BGROMMET, WASHER, A

main85379-72020×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8271114780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14780

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

25 parts on this diagram · 1 diagram in section
