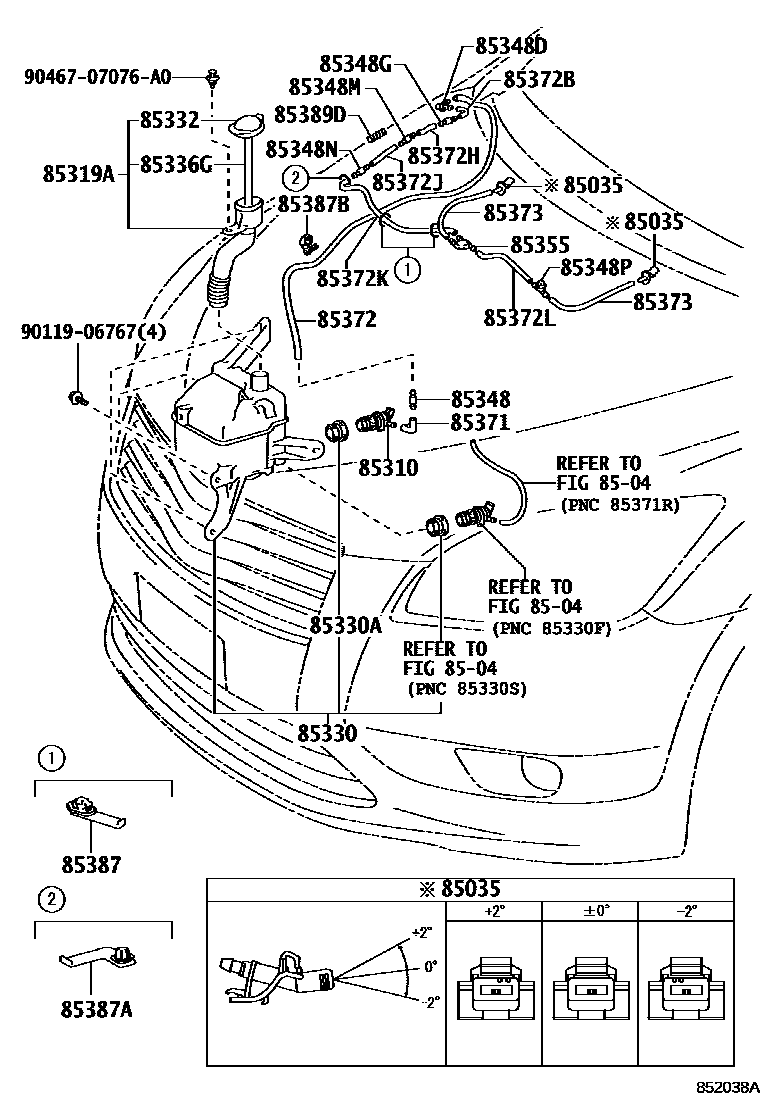

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30110×2iANA1#..240F200709

main85381-30150×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main85381-30160×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iANA1#..240F200709

85319AHOSE, INLET

main85319-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85330JAR ASSY, WINDSHIELD WASHER

main85315-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85336GGAGE, WATER LEVEL

main85318-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-72040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85348PJOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85355-14481iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85355-14481iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iANA1#,GGA10200709-200910

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200910-201102

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iANA1#,GGA10200709-200910

main90446-07001iANA1#,GGA10..240,240G,350G,ARIAL200910-201102

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iANA1#,GGA10..CBU200709-201102

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2C280×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85387ACLAMP, WASHER, NO.2

main82711-2C170iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85387BCLAMP, WASHER, NO.3

main82711-1E350iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

85389DSPRING(WASHER HOSE)

main85389-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9011906767

main90119-06767

9046707076A0

main90467-07076A0

29 parts on this diagram · 1 diagram in section
