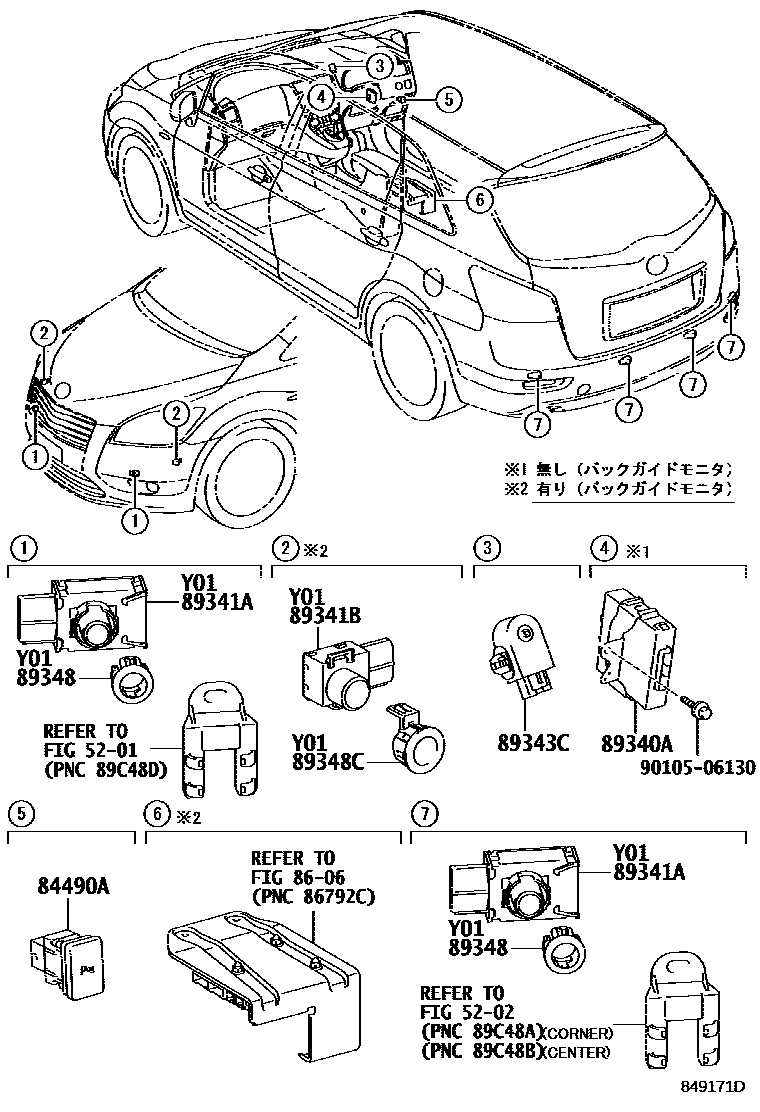

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-20070iANA1#..240F200709

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-72010iANA1#,GGA10..(240F,240G,350G)..CBU200709-200901

main89340-72011iANA1#,GGA10..240,240G,350G,ARIAL201102

89341ASENSOR, ULTRASONIC, NO.1

main89341-33110-A3×6iANA1#..(240F,240G)..CBU200807-201102

main89341-33110-B2×6iANA1#,GGA10..CBU201102-201310

main89341-33110-B4×6iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..(240F,240G)..CBU; GGA10..CBU200709-200807

main89341-33110-B5×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-C0×6iANA1#,GGA10..CBU201102-201310

main89341-33110-C2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-D2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-D3×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-H2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-J2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201102

main89341-33110-J3×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89341-33110-P2×6iANA1#,GGA10..CBU201102-201310

89341BSENSOR, ULTRASONIC, NO.2

main89341-72010-A0×2iGGA10..CBU200709-201102

main89341-72010-B0×2iGGA10..CBU200709-200807

main89341-72010-B1×2iGGA10..CBU200709-201102

main89341-72010-C0×2iGGA10..CBU200709-201102

main89341-72010-D0×2iGGA10..CBU200709-201102

main89341-72010-D1×2iGGA10..CBU200709-201102

main89341-72010-H0×2iGGA10..CBU200709-201102

main89341-72010-J0×2iGGA10..CBU200709-201102

main89341-72010-J5×2iGGA10..CBU200902-201102

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iANA1#,GGA10..240G,350G,ARIAL; ANA1#,GGA10..350G,ARIAL; GGA10200709-201102

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33010-A3×6iANA1#,GGA10..CBU201102-201310

main89348-33010-B2×6iANA1#,GGA10..CBU201102-201310

main89348-33010-B4×6iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..(240F,240G)..CBU; GGA10..CBU200709-200807

main89348-33010-B5×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-C0×6iANA1#,GGA10..CBU201102-201310

main89348-33010-C2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-D2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-D3×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-H2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-J2×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201102

main89348-33010-J3×6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU; ANA1#,GGA10..(350G,ARIAL)..CBU; GGA10..CBU200709-201102

main89348-33010-P3×6iANA1#,GGA10..CBU201102-201310

89348CRETAINER, ULTRASONIC SENSOR, NO.3

main89348-12010-A1×2iGGA10..CBU200709-201102

main89348-12010-B4×2iGGA10..CBU200709-200807

main89348-12010-B5×2iGGA10..CBU200709-201102

main89348-12010-C0×2iGGA10..CBU200709-201102

main89348-12010-D0×2iGGA10..CBU200709-201102

main89348-12010-D1×2iGGA10..CBU200709-201102

main89348-12010-H1×2iGGA10..CBU200709-201102

main89348-12010-J0×2iGGA10..CBU200709-201102

main89348-12010-J1×2iGGA10..CBU200902-201102

9010506130

main90105-06130

11 parts on this diagram · 1 diagram in section
