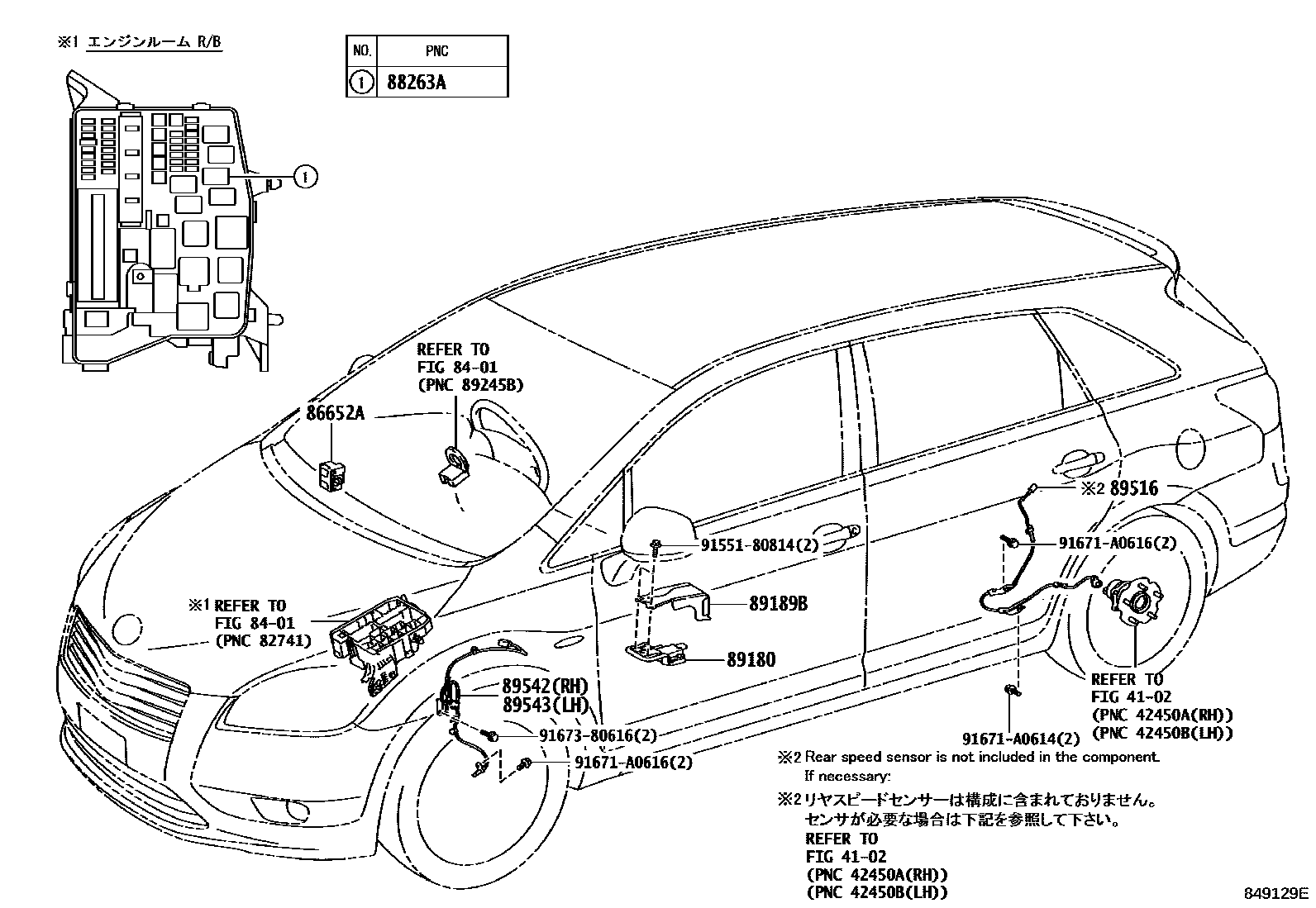

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iANA1#..240F200709

88263ARELAY, SKID CONTROL

main90987-04004iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

89180SENSOR ASSY, YAWRATE

main89180-12080iANA1#,GGA10200709-201008

main89180-12140iANA1#,GGA10..240,240G,350G,ARIAL201008-201102

89189BBRACKET, YAWRATE SENSOR

main89189-12091iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

89516WIRE, SKID CONTROL SENSOR

main89516-12160iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main89516-12170iANA10,GGA10..240,240G,350G,ARIAL200709-201102

89542SENSOR, SPEED, FRONT RH

main89542-12080iANA1#,GGA10..CBU200709-201102

89543SENSOR, SPEED, FRONT LH

main89543-12080iANA1#,GGA10..CBU200709-201102

9155180814

main91551-80814

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
