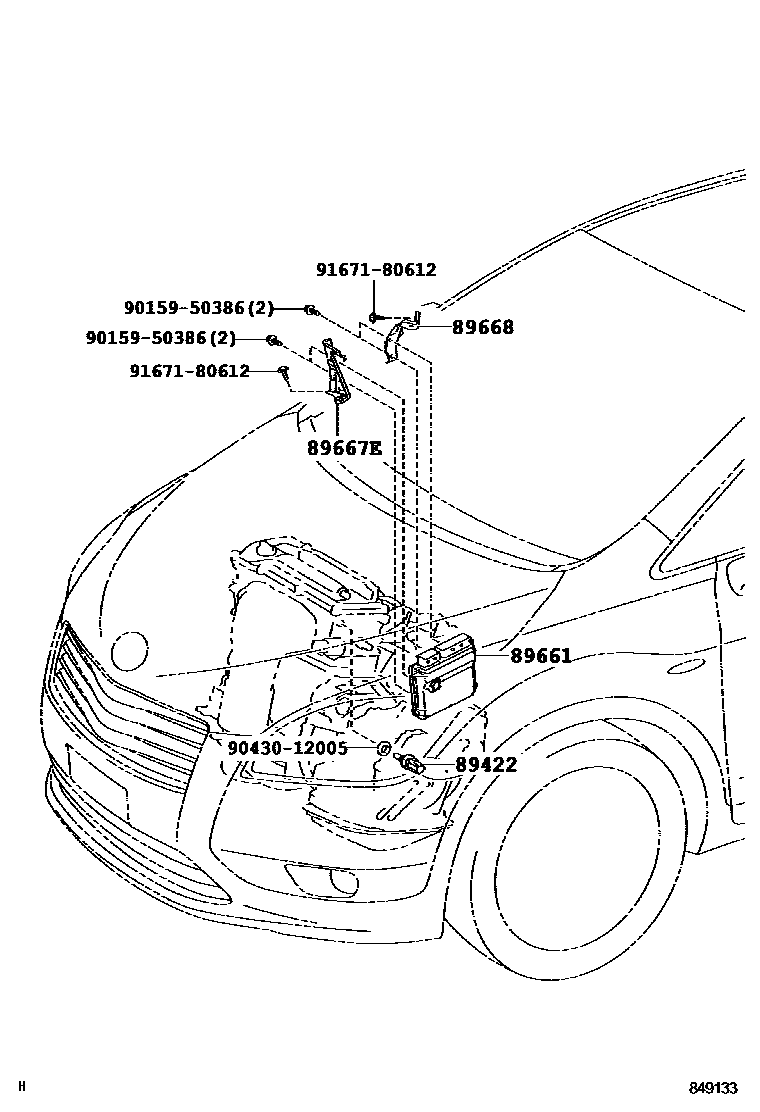

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iANA1#,GGA10..CBU200709-201102

89661COMPUTER, ENGINE CONTROL

main89661-72010iANA10200709-201008

main89661-72020iANA15200709-200912

main89661-72030iGGA10200709-201102

main89661-72031iGGA10201102

main89661-72040iANA15200912-201008

main89661-72050iANA10..240,240G,ARIAL201008-201102

main89661-72051iANA10201102-201111

main89661-72052iANA10201112-201302

main89661-72060iANA15..240F201008

main89661-72061iANA15201102-201111

main89661-72062iANA15201112-201302

main89661-72070iANA10201303

main89661-72080iANA15201303

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12210iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12180iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9015950386

main90159-50386

9043012005

main90430-12005

9167180612

main91671-80612

7 parts on this diagram · 2 diagrams in section
