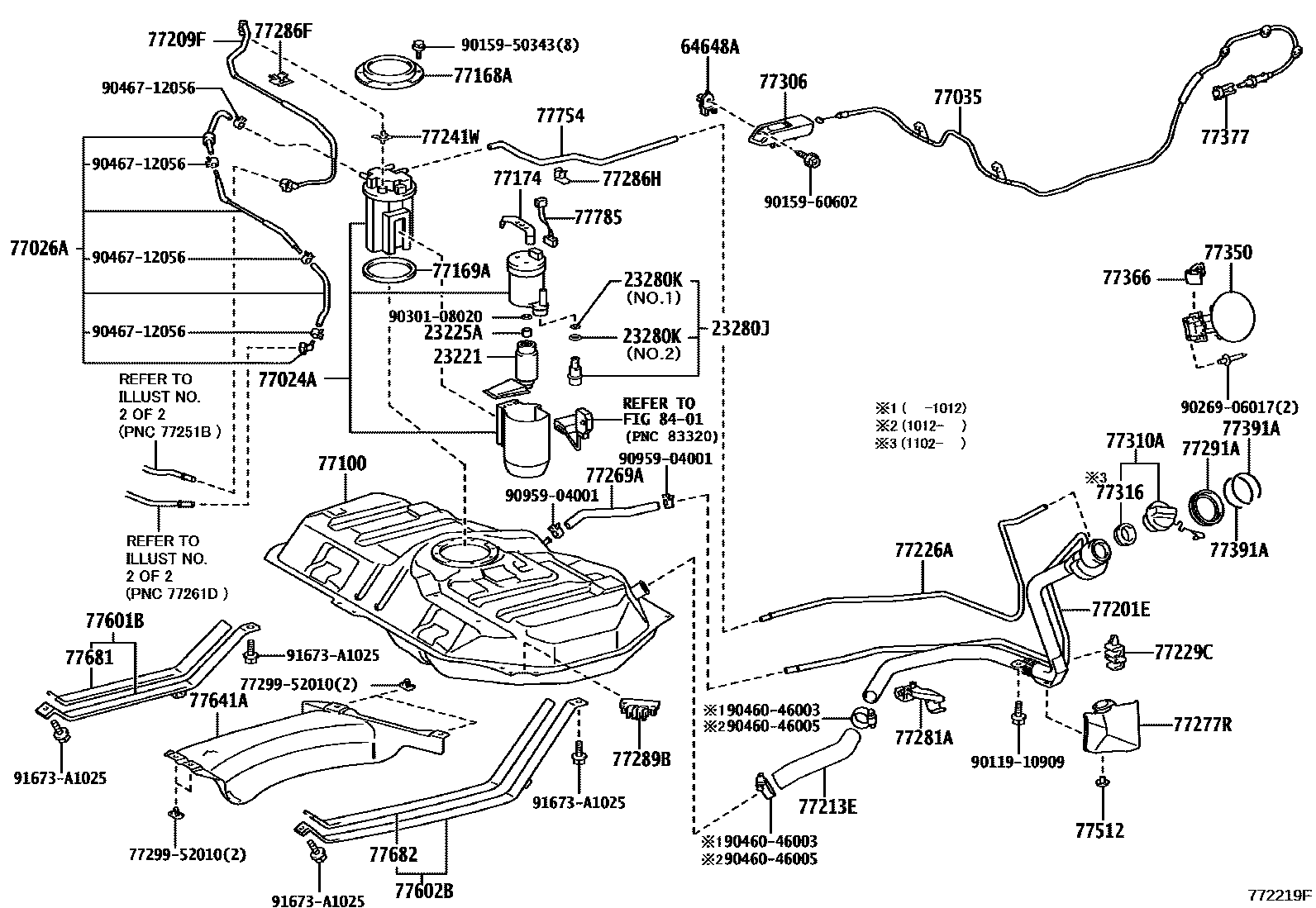

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� �����

23221PUMP, FUEL

main23220-28180i2AZFE..ANA10..CBU200804-201102

main23220-28181i2AZFE..ANA10201111

main23220-28260i2AZFE..ANA10..CBU200709-200803

main23220-28270i2AZFE..ANA15..CBU200709-200803

main23220-28350i2AZFE..ANA15201102-201201

main23220-28351i2AZFE..ANA15201201

main23220-31130i2GRFE..GGA10201102-201111

main23220-31131i2GRFE..GGA10201111

main23220-31280i2GRFE..GGA10..CBU200709-200803

23225ASPACER, FUEL PUMP

main23225-21020i2AZFE,2GRFE..ANA1#,GGA10..CBU200709-201102

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL201102

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL201102

main90301-11025i2AZFE..ANA15..240,240G,ARIAL201102

main90301-15024i2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL201102

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-72011iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77024-72021iANA15..240,240G,ARIAL200709-201102

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77026-72020iANA15..240F200709

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77100TANK ASSY, FUEL

main77001-72010iANA10,GGA10200709-200903

main77001-72011iANA10,GGA10..240,240G,350G,ARIAL200904-201102

main77001-72020iANA15..240,240G,ARIAL201102

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iANA1#,GGA10..240,240G,350G,ARIAL201102

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77174SUPPORT, FUEL SUCTION, NO.1

main77174-72010iANA10,GGA10..240,240G,350G,ARIAL201102

main77174-72020iANA15..240F200709

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77201-72020iANA15..240,240G,ARIAL200709-201102

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77209-72020iANA15..240F200709

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-72010iANA10..240F200709

main77213-72020iANA15..240F200709

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77226-72020iANA15..240F200709

77229CCLAMP, BREATHER TUBE

main77229-12070iANA1#,GGA10..240,240G,350G,ARIAL201102

77241WCLIP, TUBE JOINT

main77241-33011iANA1#,GGA10..240,240G,350G,ARIAL201102

main77241-60320iANA1#,GGA10200709-200911

77269AHOSE, FUEL TANK BREATHER

main77269-72010iANA10..240F200709

main95313-13020iANA15..240F200709

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77281ACLAMP, FUEL FILLER PIPE

main77281-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77281-72020iANA15..240F200709

77286FCLAMP, FUEL TUBE, NO.2

main77286-32070iANA10,GGA10..240,240G,350G,ARIAL200709-201102

77286HCLAMP, FUEL TUBE, NO.3

main77286-68010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

77289BCLAMP, FUEL TUBE, NO.3

main77289-52100iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77298-30170×2iANA15..240,240G,ARIAL200709-201102

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main77306-52050iANA1#,GGA10..240,240G,350G,ARIAL201102

77310ACAP ASSY, FUEL TANK

main77300-52030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77316GASKET, FUEL TANK CAP

main77316-52040iANA1#,GGA10201102

77350LID ASSY, FUEL FILLER OPENING

main77350-72010iANA1#..240F200709

main77350-72020iANA1#,GGA10201302

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iANA1#..240F200709

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77391ARING, FUEL INLET BOX

main77391-12020×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

77512BRACKET, FUEL TANK, REAR

main77512-35140iANA1#,GGA10..240,240G,350G,ARIAL201102

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77601-72020iANA15..240,240G,ARIAL200709-201102

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main77602-72020iANA15..240F200709

77641APROTECTOR, FUEL TANK, NO.1

main77641-72010iANA10..240F200709

main77641-72020iANA15..240F200709

77681SEAT, FUEL TANK BAND, RH

main77681-21010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

77682SEAT, FUEL TANK BAND, LH

main77681-12070×2iANA15..240,240G,ARIAL201102

main77681-72010iANA10,GGA10..240,240G,350G,ARIAL201102

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

77785HARNESS, FUEL PUMP

main77785-12010iANA15201201

main77785-12020iANA15..240F200709

main77785-72010iANA10,GGA10201102-201111

main77785-72020iANA10,GGA10201111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-52010

9011910909

main90119-10909

9015950343

main90159-50343

9015960602

main90159-60602

9026906017

main90269-06017

9030108020

main90301-08020

9046046003

main90460-46003

9046046005

main90460-46005

9046712056

main90467-12056

9095904001

main90959-04001

91673A1025

main91673-A1025

52 parts on this diagram · 3 diagrams in section
