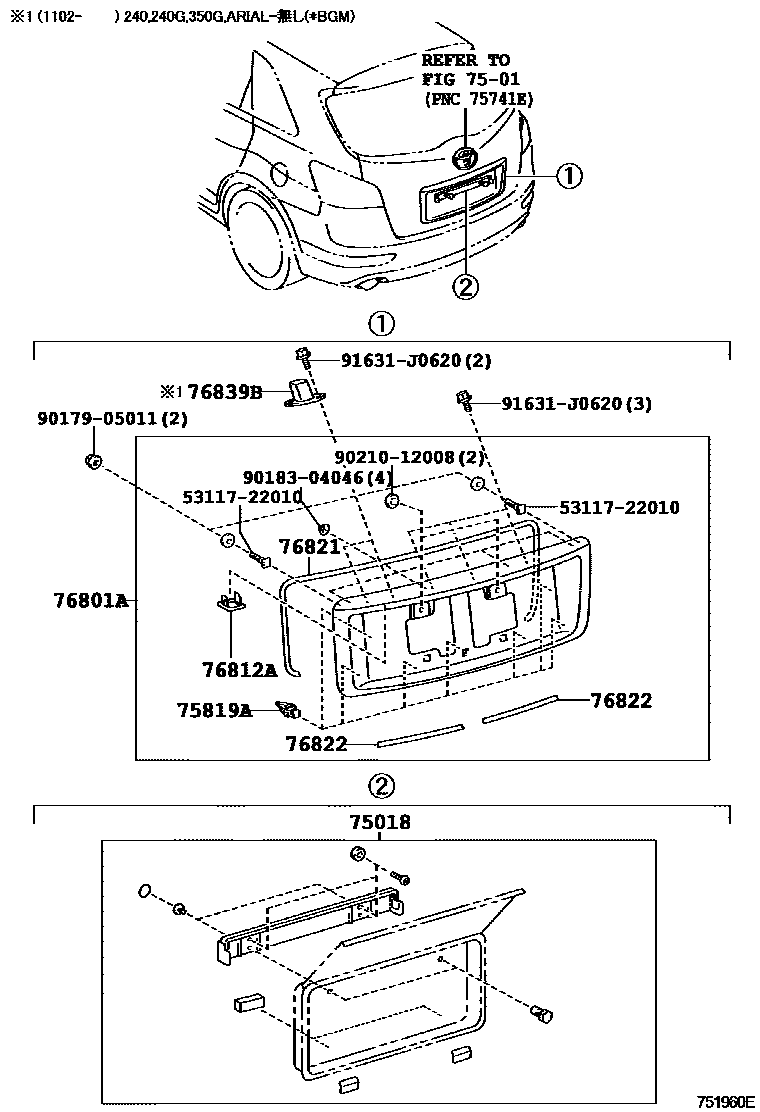

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-44020iANA1#,GGA10..240,240G,350G,ARIAL201102

75819ACLIP, BACK DOOR MOULDING

main75819-33010×7iANA1#,GGA10..240,240G,350G,ARIAL201102

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-72010-A0iANA1#,GGA10..CBU201102-201310

WHITE PEARL CS.,070

main76801-72010-B0iANA1#,GGA10..CBU200709-200807

DK.GRAY M.M.,1E9

main76801-72010-B1iANA1#,GGA10..CBU200709-201102

SILVER ME.,1G7

main76801-72010-B2iANA1#,GGA10..CBU201102-201310

DK. STEEL MC.,1H2

main76801-72010-B3iANA1#,GGA10..CBU201102-201310

SILVER ME.,1F7

main76801-72010-C0iANA1#,GGA10..CBU200709-201102

BLACK MC.,209

main76801-72010-C1iANA1#,GGA10..CBU201102-201310

BLACK,202

main76801-72010-D0iANA1#,GGA10..CBU201102-201310

BLACKISH RED MC.,3R0

main76801-72010-D1iANA1#,GGA10..CBU201102-201310

RED M.M.,3R3

main76801-72010-H0iANA1#,GGA10..CBU200709-201102

FROSTY GREEN MC.,781

main76801-72010-J0iANA1#,GGA10..CBU200709-201102

DK.BLUE MC.,8S6

main76801-72010-J1iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

main76801-72020-A0iANA1#..(240F,240G)..CBU; ANA1#..240G200807-200902

main76801-72020-B1iANA1#..(240F,240G)..CBU; ANA1#..240G200807-200902

main76801-72020-C0iANA1#..(240F,240G)..CBU; ANA1#..240G200807-200902

main76801-72020-J1iANA1#..(240F,240G)..CBU; ANA1#..240G200807-200902

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-72010-A0iANA1#,GGA10..CBU200709-201102

WHITE PEARL CS.,070

main76812-72010-B0iANA1#,GGA10..CBU200709-200807

DK.GRAY M.M.,1E9

main76812-72010-B1iANA1#,GGA10..CBU200709-201102

SILVER ME.,1G7

main76812-72010-B2iANA1#,GGA10..CBU201102-201310

DK. STEEL MC.,1H2

main76812-72010-B3iANA1#,GGA10..CBU201102-201310

SILVER ME.,1F7

main76812-72010-C0iANA1#,GGA10..CBU200709-201102

BLACK MC.,209

main76812-72010-C1iANA1#,GGA10..CBU201102-201310

BLACK,202

main76812-72010-D0iANA1#,GGA10..CBU200709-201102

BLACKISH RED MC.,3R0

main76812-72010-D1iANA1#,GGA10..CBU200709-201102

RED M.M.,3R3

main76812-72010-H0iANA1#,GGA10..CBU200709-201102

FROSTY GREEN MC.,781

main76812-72010-J0iANA1#,GGA10..CBU200709-201102

DK.BLUE MC.,8S6

main76812-72010-J1iANA1#,GGA10..CBU200902-201102

LT.BLUE M.M.,8S7

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-72010×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76839BCOVER, BACK DOOR GARNISH

main76839-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

5311722010BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-22010

9017905011

main90179-05011

9018304046

main90183-04046

9021012008

main90210-12008

91631J0620

main91631-J0620

13 parts on this diagram · 1 diagram in section
